Product description

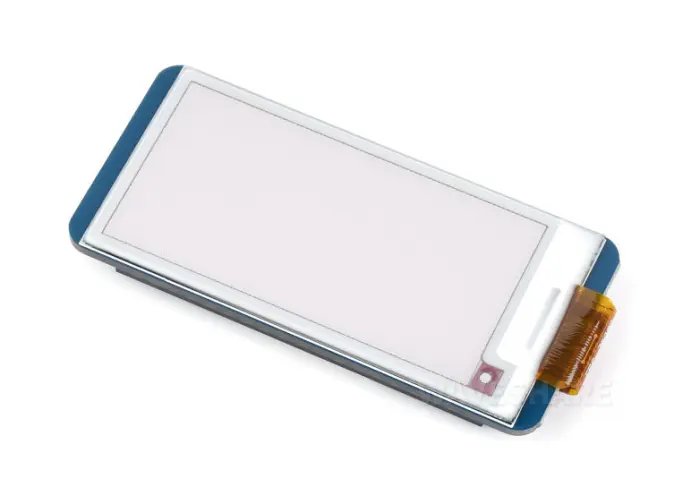

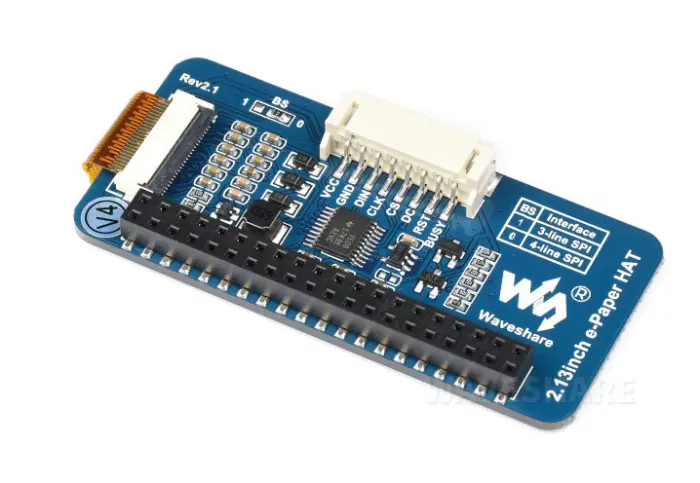

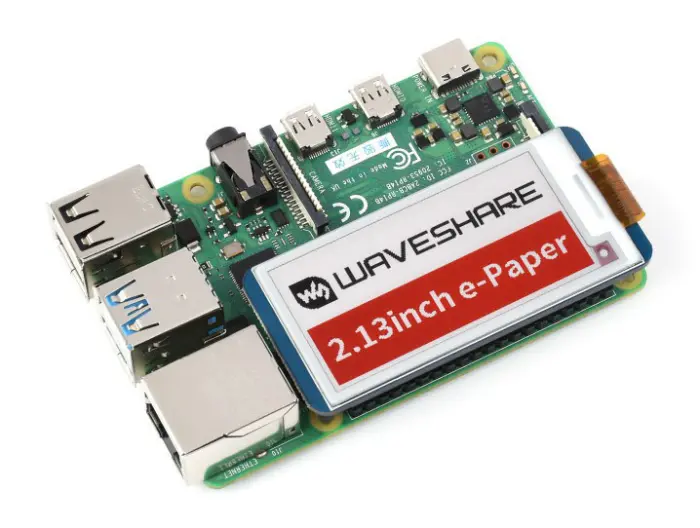

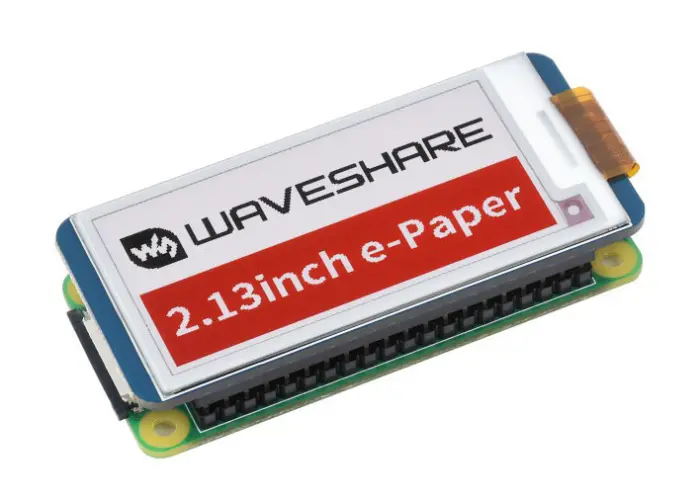

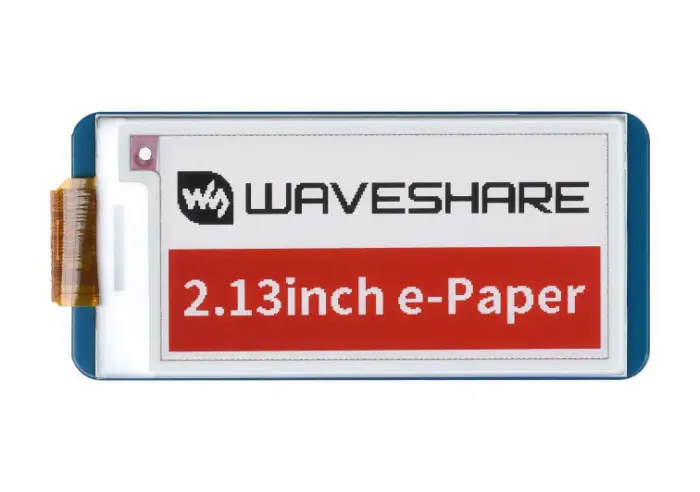

2.13-inch e-paper (e-ink) display HAT for Raspberry Pi and others. 250x122 pixels. The board has a built-in controller, which communicates via 3- or 4-wire SPI. Standard Raspberry Pi 40-pin GPIO pin, supports Raspberry Pi (4, 5 and Zero) and Jetson Nano. Ultra low power consumption, basically power is only required when updating. SPI interface, for connection to other control boards like Arduino/STM32, etc. Built-in voltage converter, compatible with 3.3/5V MCUs. Comes with online development resources and manual (example for Raspberry Pi/Jetson Nano/Arduino/STM32).
Specifications:
- Interface: SPI (3- or 4-wire)
- Display colour: Red/black/white
- Grey scales: 2
- Resolution: 250x122
- Operating voltage: 3.3/5V
- Power at refresh: 26.4 mW
