20dB Wideband Amplifier

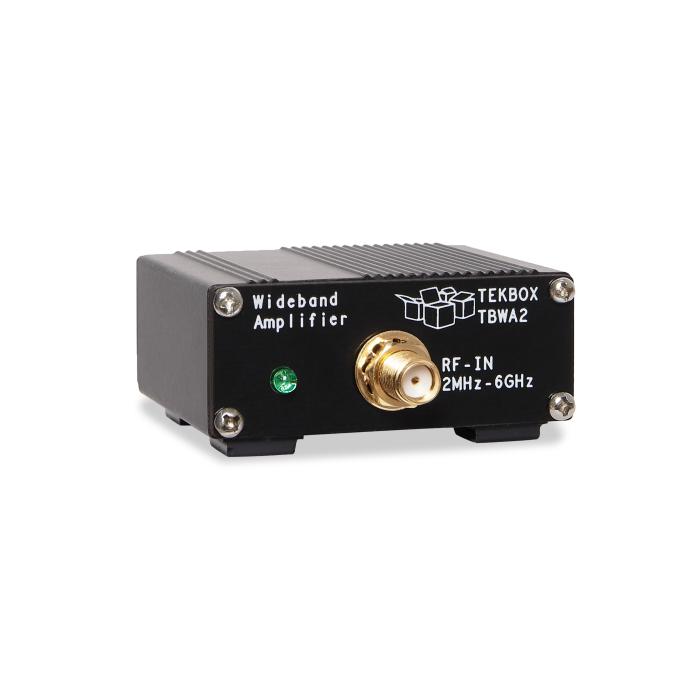

TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal to boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.

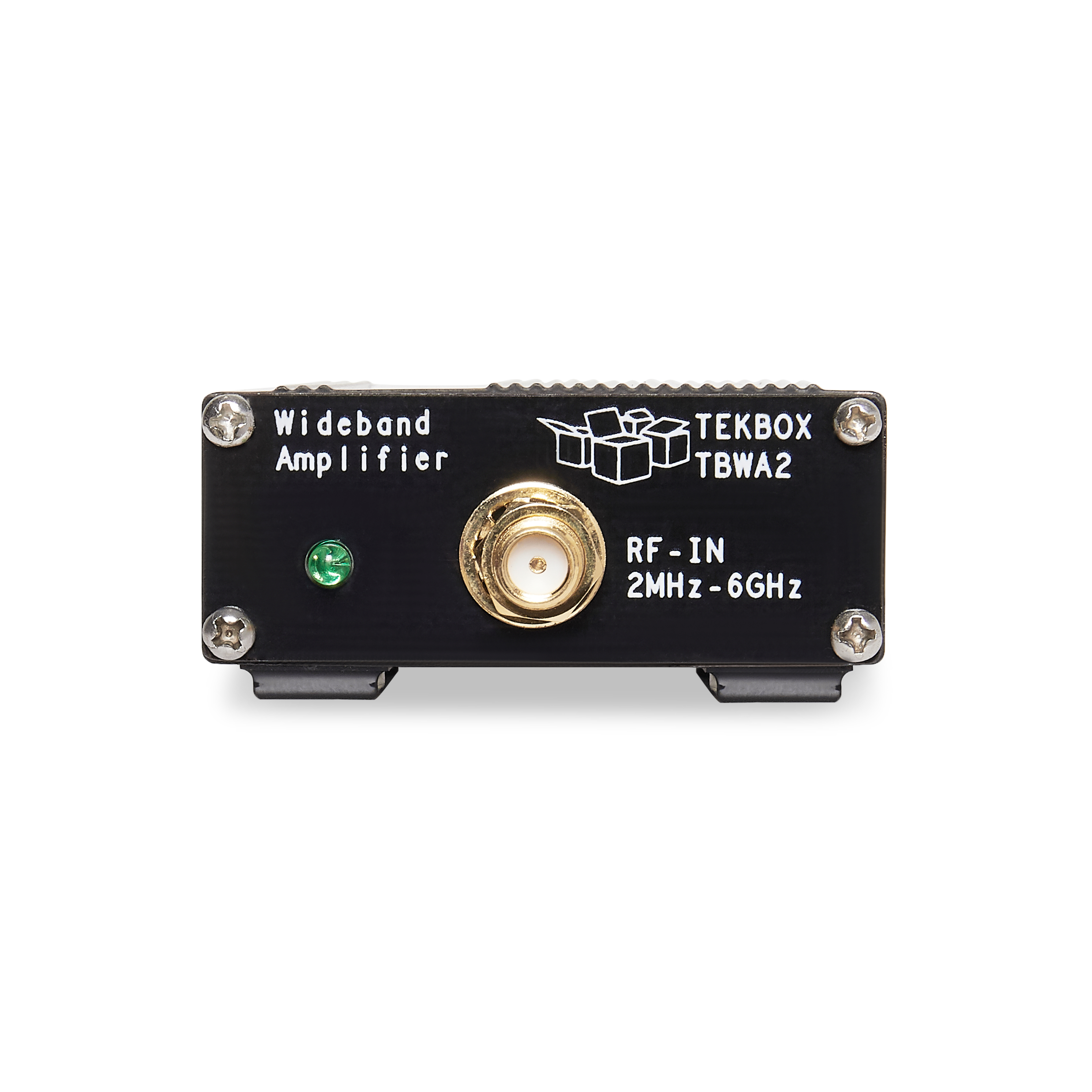

* Input: 50 Ohm, SMA

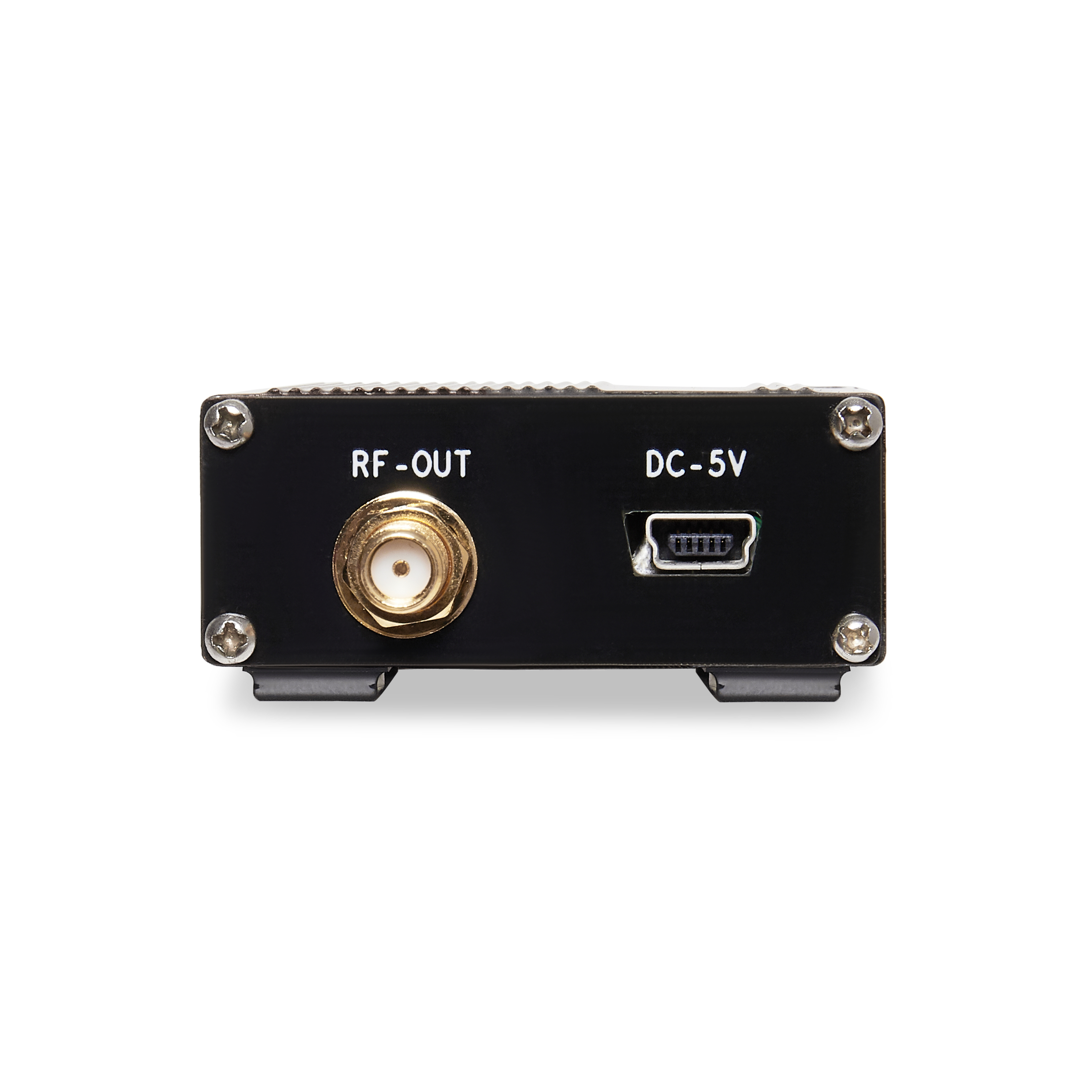

* Output: 50 Ohm, SMA
* Nominal supply Voltage: 4.5 to 5V, typ. 110mA, Mini-USB-B connector
* Maximum supply voltage: 5.5V
* Maximum input power: +10dBm
* 1dB output compression point @ 2GHz: +20dBm
* 3rd order output intercept point @ 2GHz, Pin = 0dBm/tone, ?f = 10MHz: +35dBm
* Reverse isolation S12, 0.1 to 6GHz: 23dB
* Noise Figure @ 2GHz: 4.5 to 5 dB

Gain:

1 MHz 14.8 dB
10 MHz 20.2 dB
100 MHz 20.2 dB
500 MHz 20 dB
1 GHz 19.8 dB
2 GHz 19 dB
3 GHz 17.6 dB
4.5 GHz 17.4 dB
6 GHz 15.4 dB
