Product description

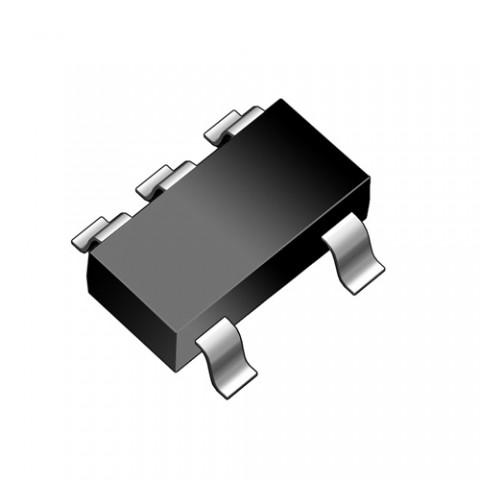

24LC32A is a 32 Kbit Electrically Erasable PROM. The device is organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1uA and 1mA, respectively. It has been developed for advanced, lowpower applications such as personal communications or data acquisition. The 24XX32A also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 256 Kbits address space.
* Single Supply with Operation down to 2.5V
* Low-Power CMOS Technology:
- Active current 1 mA, typical
- Standby current 1 ?A, typical
* 2-Wire Serial Interface, I2C Compatible
* Schmitt Trigger Inputs for Noise Suppression
* Output Slope Control to Eliminate Ground Bounce
* 100 kHz and 400 kHz Clock Compatibility
* Page Write Time 5 ms max.
* Self-Timed Erase/Write Cycle
* 32-Byte Page Write Buffer
* Hardware Write-Protect
* ESD Protection > 4,000V
* More than 1 Million Erase/Write Cycles
* Data Retention > 200 Years
