Product description

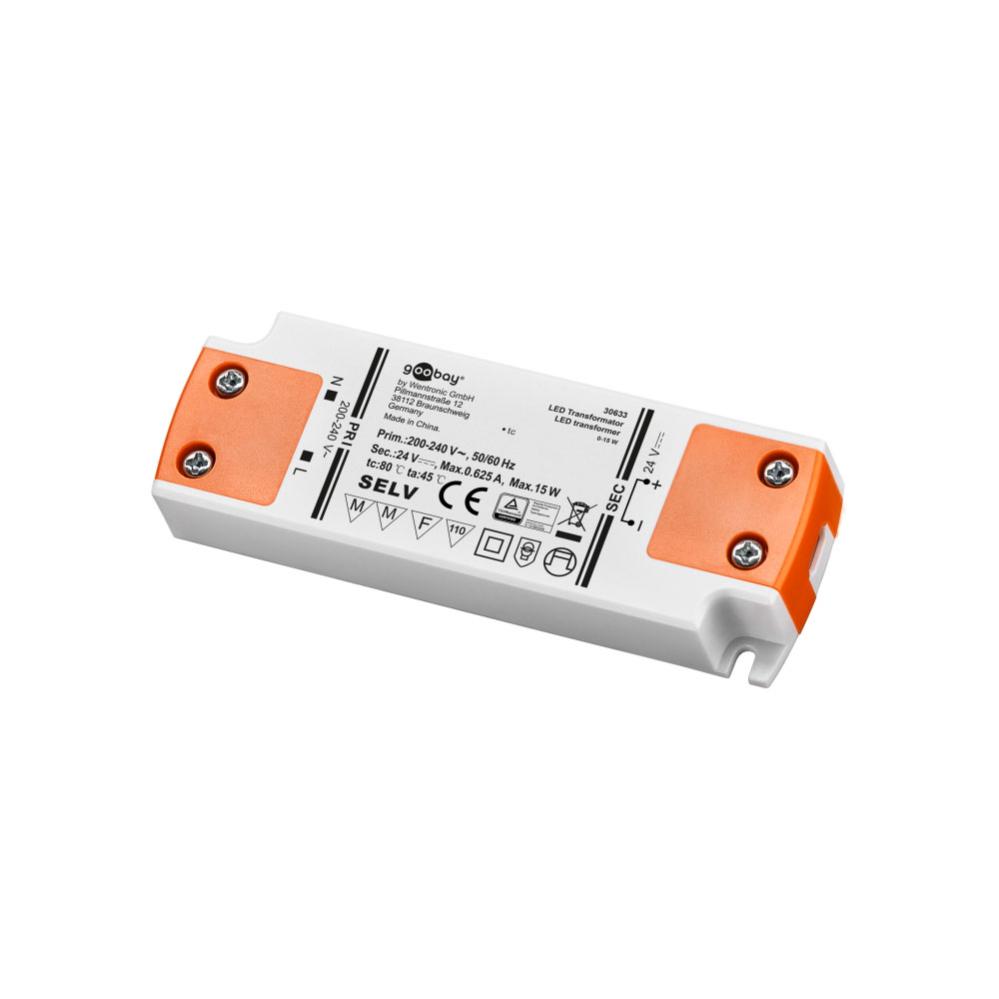

24V 15W LED power supply for low voltage LED lighting. Compact and low profile LED transformer without minimum load. Used for connecting light sources such as LED strips, LED modules or LED light sources.
The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets. Also for replacement of existing driver in luminaire.
Protected against short circuit and overload.
Specifications:
Type CC/CV: Constant voltage (CV)
Voltage: 12V (DC)
Power: 0-15W
Current: 0.6 A (max)
Minimum load: 0W
Dimensions: 103x35.5x16 mm
Weight: 54g
Inpud voltage range: 200-240V (AC)
Power in standby mode: 0.5W
Protection class: IP20
Dimmable: No
Input connection: 2x0.75 mm2, screw terminal
Output connection: 2x0.75 mm2, screw terminal
Markings: WEEE, CE, bauartgepruft: TUV Rheinland
Operating temperature: -20 to 45 degrees C
The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets. Also for replacement of existing driver in luminaire.
Protected against short circuit and overload.
Specifications:
Type CC/CV: Constant voltage (CV)
Voltage: 12V (DC)
Power: 0-15W
Current: 0.6 A (max)
Minimum load: 0W
Dimensions: 103x35.5x16 mm
Weight: 54g
Inpud voltage range: 200-240V (AC)
Power in standby mode: 0.5W
Protection class: IP20
Dimmable: No
Input connection: 2x0.75 mm2, screw terminal
Output connection: 2x0.75 mm2, screw terminal
Markings: WEEE, CE, bauartgepruft: TUV Rheinland
Operating temperature: -20 to 45 degrees C
