Product description

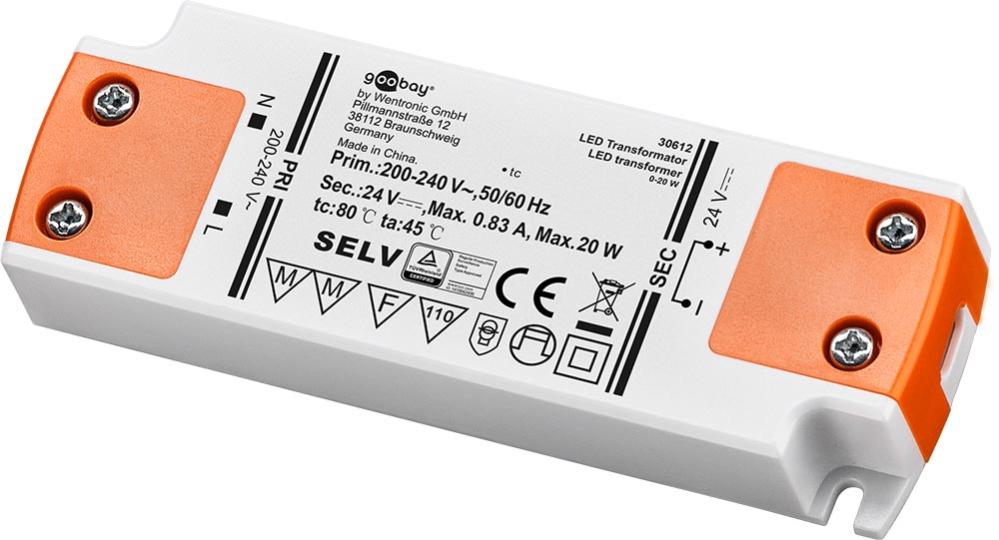

24V 20W LED power supply for low voltage LED lighting. Compact and low profile LED transformer without minimum load. Used for connecting light sources such as LED strips, LED modules or LED light sources.
The LED driver is approved for installation in furniture and can be mounted discreetly, e.g. behind cabinets. Also for replacement of existing driver in luminaire.
Protected against short circuit and overload.
Specifications:
Type CC/CV: Constant voltage (CV)
Voltage: 24V (DC)
Power: 0-20W
Current: 0.8 A (max)
Minimum load: 0W
Dimensions: 103x35.5x16 mm
Weight: 63g
Inpud voltage range: 200-240V (AC)
Power in standby mode: 0.5W
Protection class: IP20
Dimmable: No
Input connection: 2x0.75 mm2, screw terminal
Output connection: 2x0.75 mm2, screw terminal
Markings: WEEE, CE, bauartgepruft: TUV Rheinland
Operating temperature: -20 to 45 degrees C
