Product description

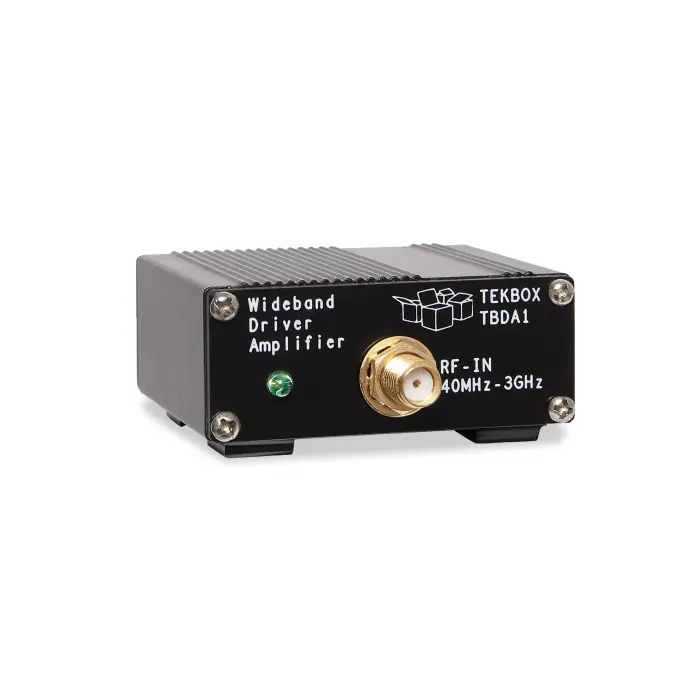

TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
* Input: 50 Ohm, SMA female
* Output: 50 Ohm, SMA female
* Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector
* Maximum supply voltage: 5.5V
* Maximum input power: +6 dBm
* 1dB output compression point @ 40MHz: +21.5dBm
* 1dB output compression point @ 2 GHz: +22.5dBm
* 3rd order output intercept point @ 40 MHz: +39.8dBm
* 3rd order output intercept point @ 2 GHz: +42.8dBm
* Reverse isolation S12: < -40dB
* Noise Figure: 3.1 to 4.1 dB
Gain:
25 MHz 26 dB
50 MHz 28.4 dB
100 MHz 28.6 dB
500 MHz 28.6 dB
1 GHz 28.8 dB
1.5 GHz 28.3 dB
2 GHz 27.2dB
2.5 GHz 28.5 dB
3 GHz 28.9 dB
* Input: 50 Ohm, SMA female
* Output: 50 Ohm, SMA female
* Nominal supply Voltage: 5V, typ. 225mA, Mini-USB-B connector
* Maximum supply voltage: 5.5V
* Maximum input power: +6 dBm
* 1dB output compression point @ 40MHz: +21.5dBm
* 1dB output compression point @ 2 GHz: +22.5dBm
* 3rd order output intercept point @ 40 MHz: +39.8dBm
* 3rd order output intercept point @ 2 GHz: +42.8dBm
* Reverse isolation S12: < -40dB
* Noise Figure: 3.1 to 4.1 dB
Gain:
25 MHz 26 dB
50 MHz 28.4 dB
100 MHz 28.6 dB
500 MHz 28.6 dB
1 GHz 28.8 dB
1.5 GHz 28.3 dB
2 GHz 27.2dB
2.5 GHz 28.5 dB
3 GHz 28.9 dB
