Product description

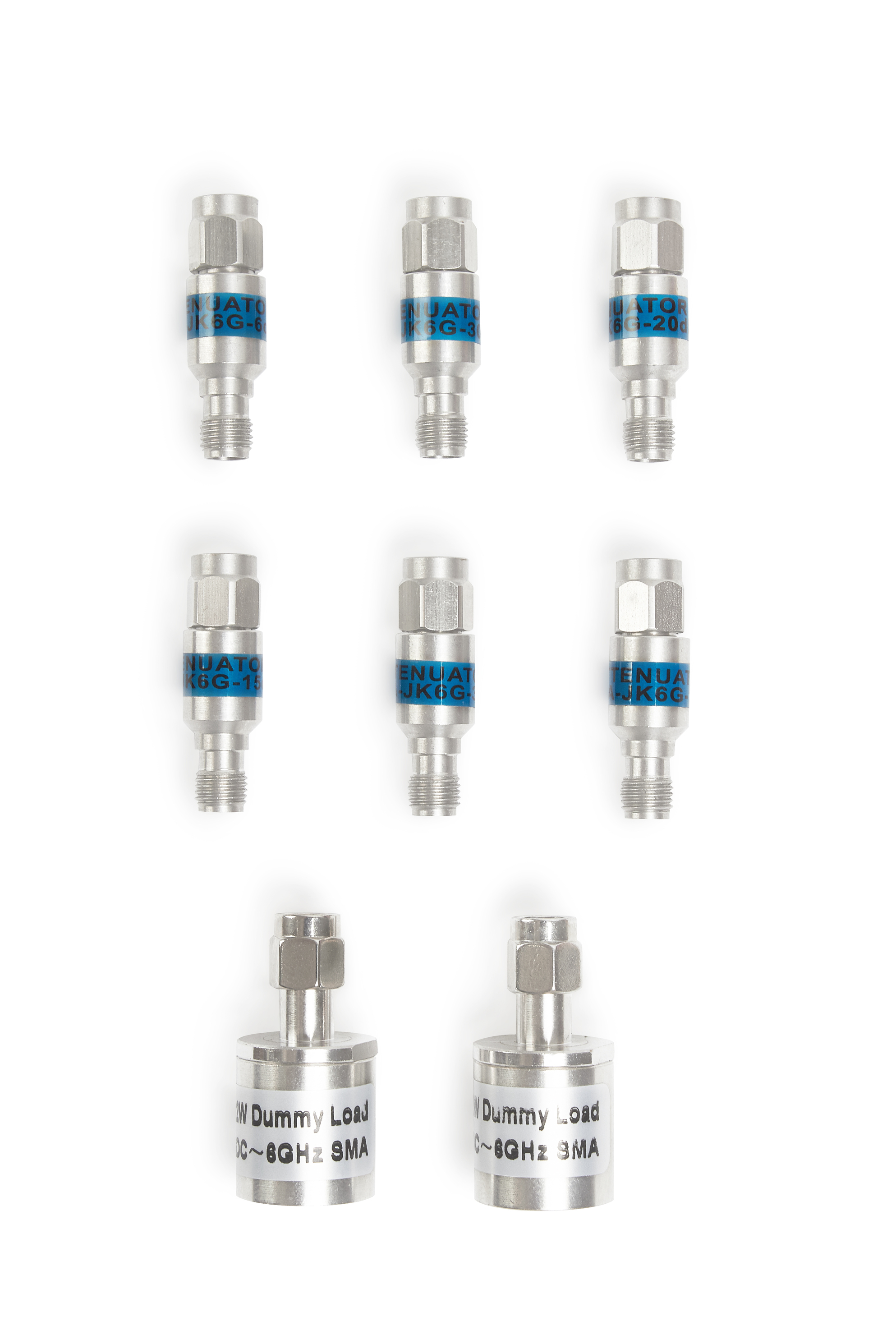

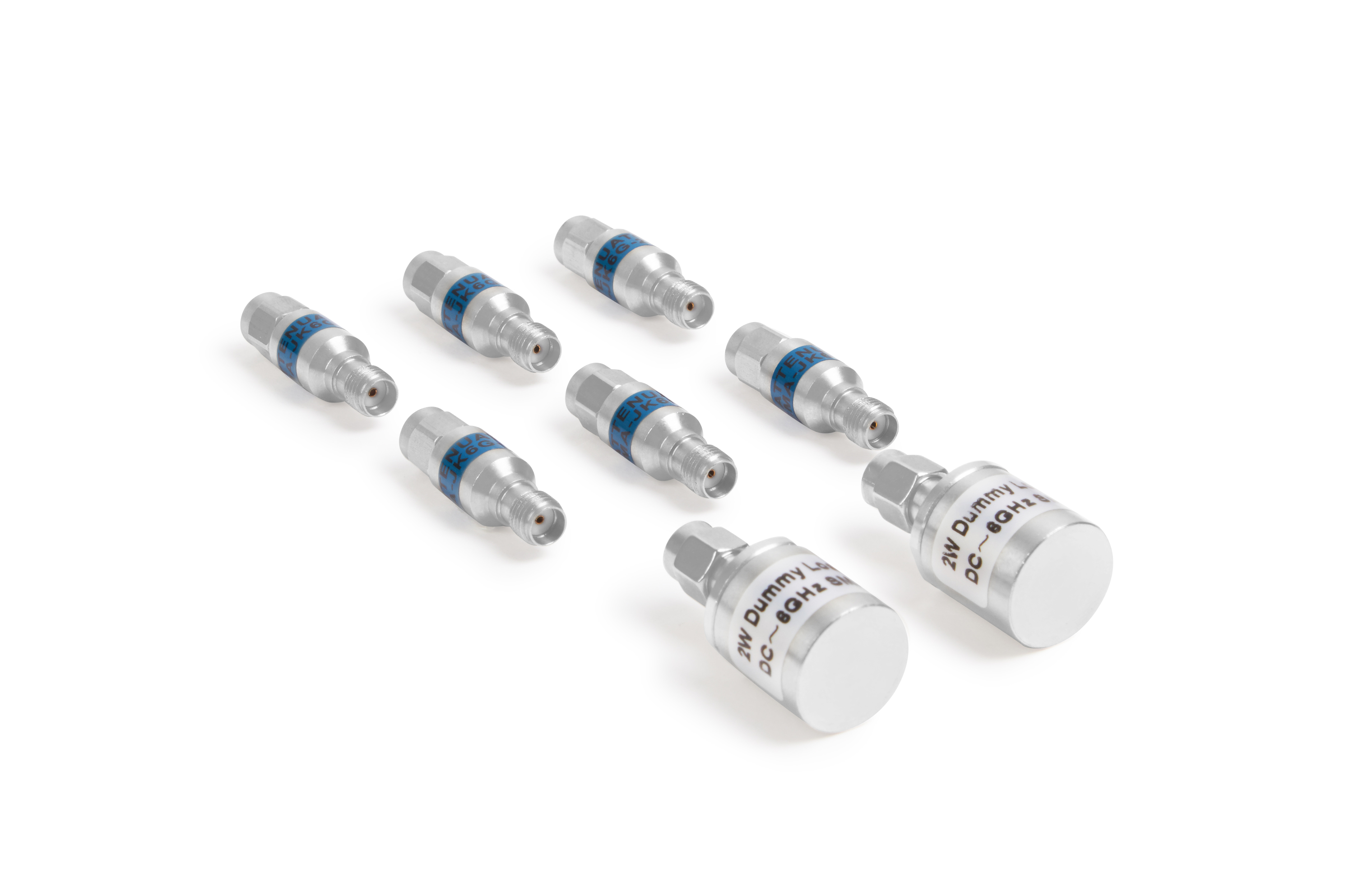

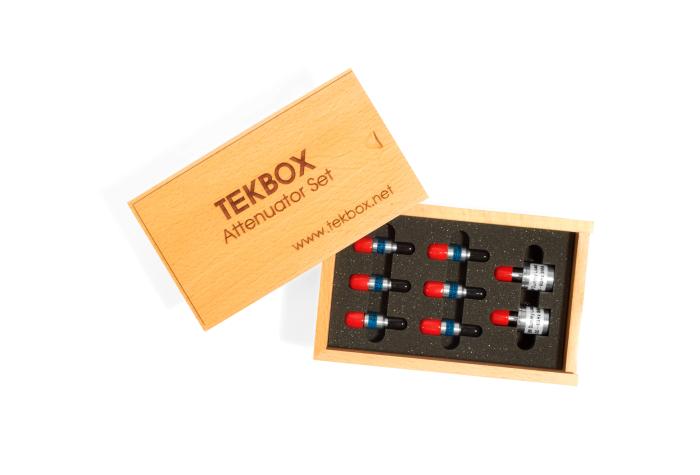

The TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.
SPECIFICATIONS
Attenuators: 3, 6, 10, 15 dB +/- 0.5 dB
20, 30 dB +/- 0.8 dB
Frequency Range:DC - 6GHz, VSWR <1.2
Power rating:2W @ -55 to 70°C; up to 125°C with 50% power de-rating
Connectors:N-male/N-famale; bidirectional
Termination: 50 Ohm
Frequency Range: DC - 6GHz, VSWR <1.1
Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating
Connectors: N-male
SPECIFICATIONS
Attenuators: 3, 6, 10, 15 dB +/- 0.5 dB
20, 30 dB +/- 0.8 dB
Frequency Range:DC - 6GHz, VSWR <1.2
Power rating:2W @ -55 to 70°C; up to 125°C with 50% power de-rating
Connectors:N-male/N-famale; bidirectional
Termination: 50 Ohm
Frequency Range: DC - 6GHz, VSWR <1.1
Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating
Connectors: N-male
