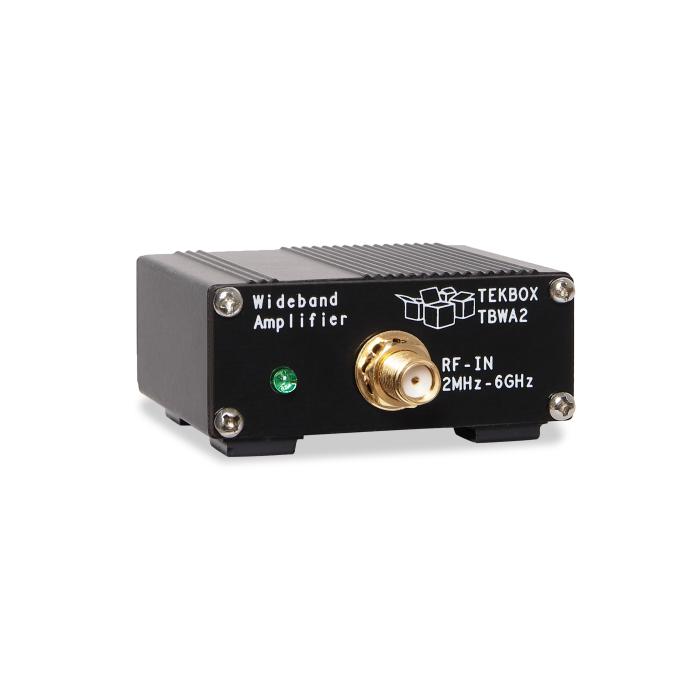

40dB Wideband Amplifier

TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz, they are ideal to boost the signals picked up by our EMC near field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.

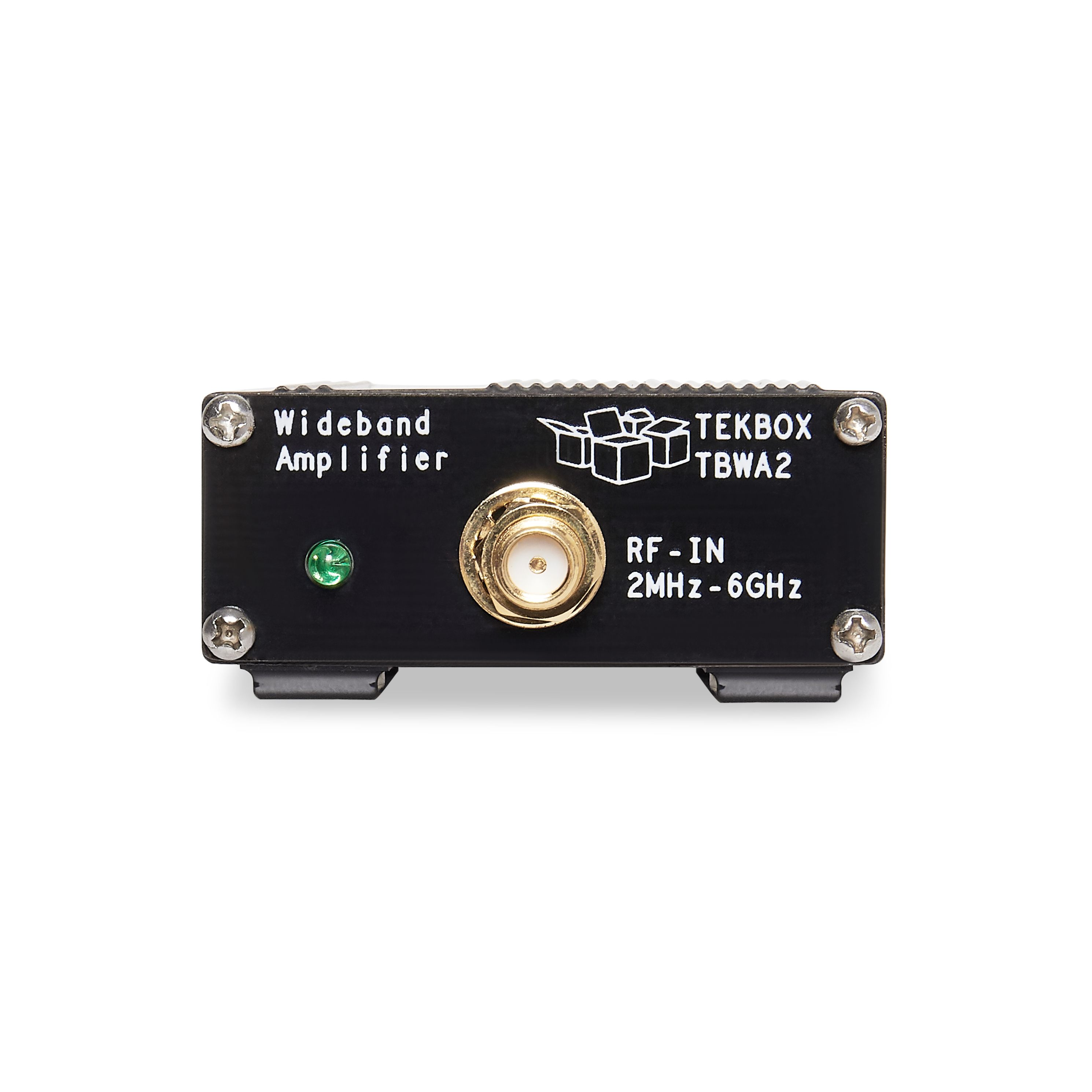

* Input: 50 Ohm, SMA

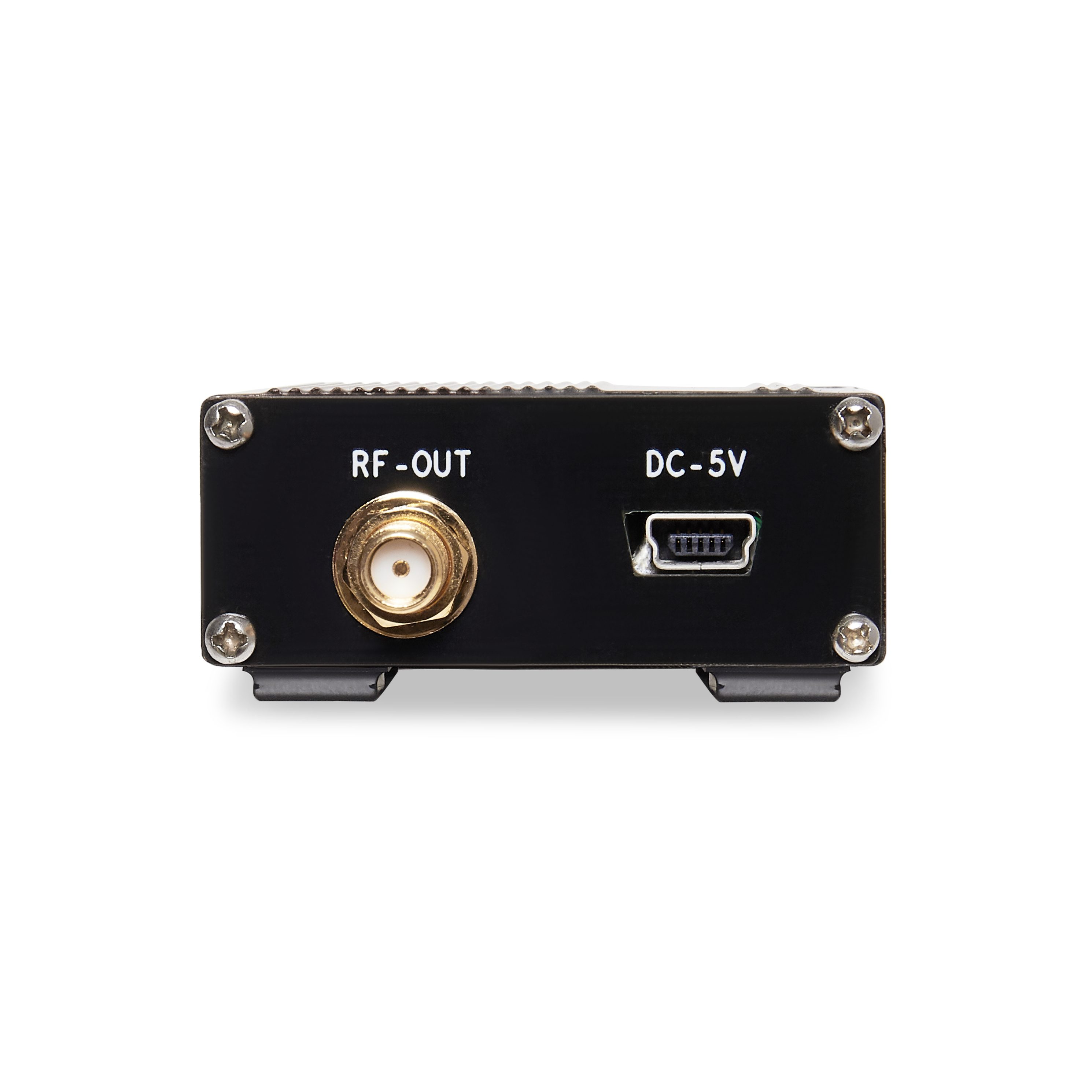

* Output: 50 Ohm, SMA
* Nominal supply Voltage: 4.5 to 5V, typ. 210mA, Mini-USB-B connector
* Maximum supply voltage: 5.5V
* Maximum input power: -10dBm
* 1dB output compression point @ 2GHz: +20dBm
* Reverse isolation S12, 0.1 to 6GHz: 40dB
* Noise Figure @ 2GHz: 5 dB

1 MHz 30 dB
10 MHz 40.2 dB
100 MHz 40.2 dB
500 MHz 40 dB
1 GHz 39.5 dB
2 GHz 37.6 dB
3 GHz 36.4 dB
4.5 GHz 34.6 dB
6 GHz 34.7 dB
