Product description

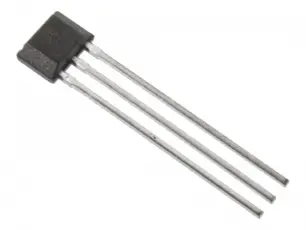

Ratiometric hall-effect sensor in through-hole SIP-3 package. The sensor detects magnetism and outputs a linear voltage between 0V and VDD, centered around VDD/2. Excellent for highly accurate positioning for short distances.
* Supply voltage: 4.5 - 5.5VDC
* Output current: 10mA
* Bandwidth: 17kHz
* Sensitivity: 5mV/G
* Pinout: 1 = VCC, 2 = GND, 3 = VOUT
