Product description

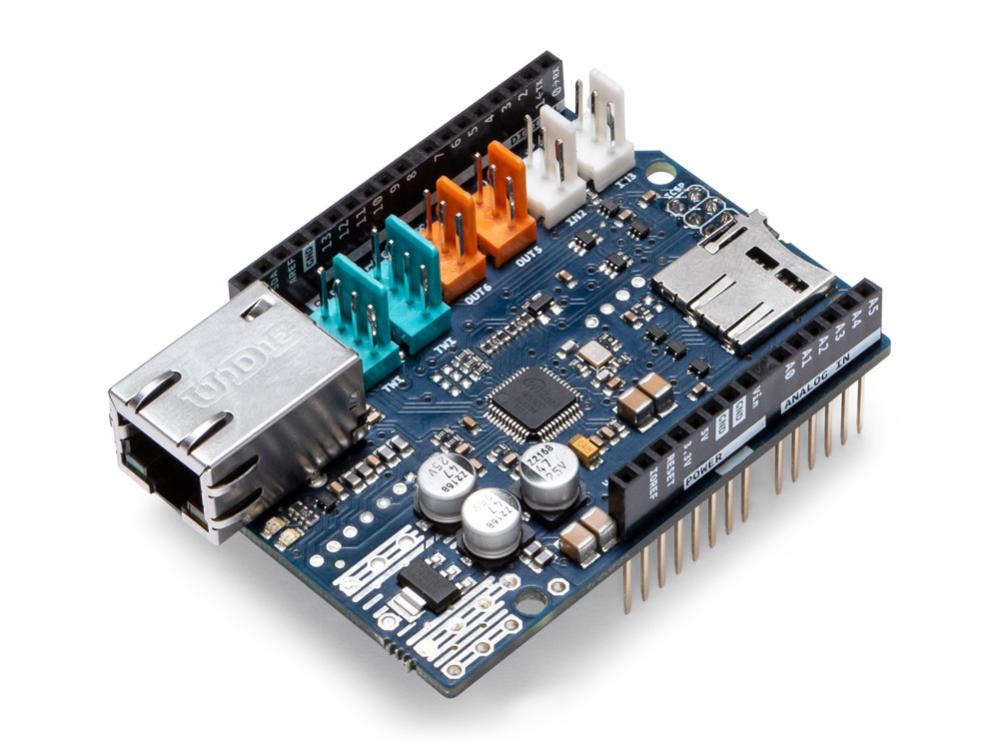

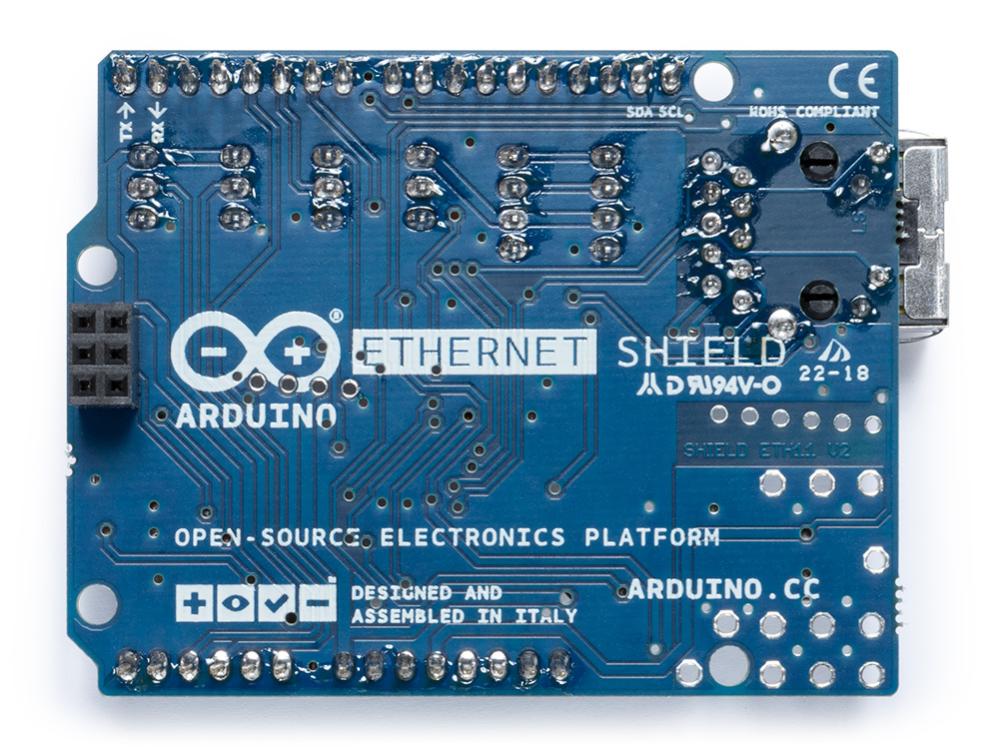

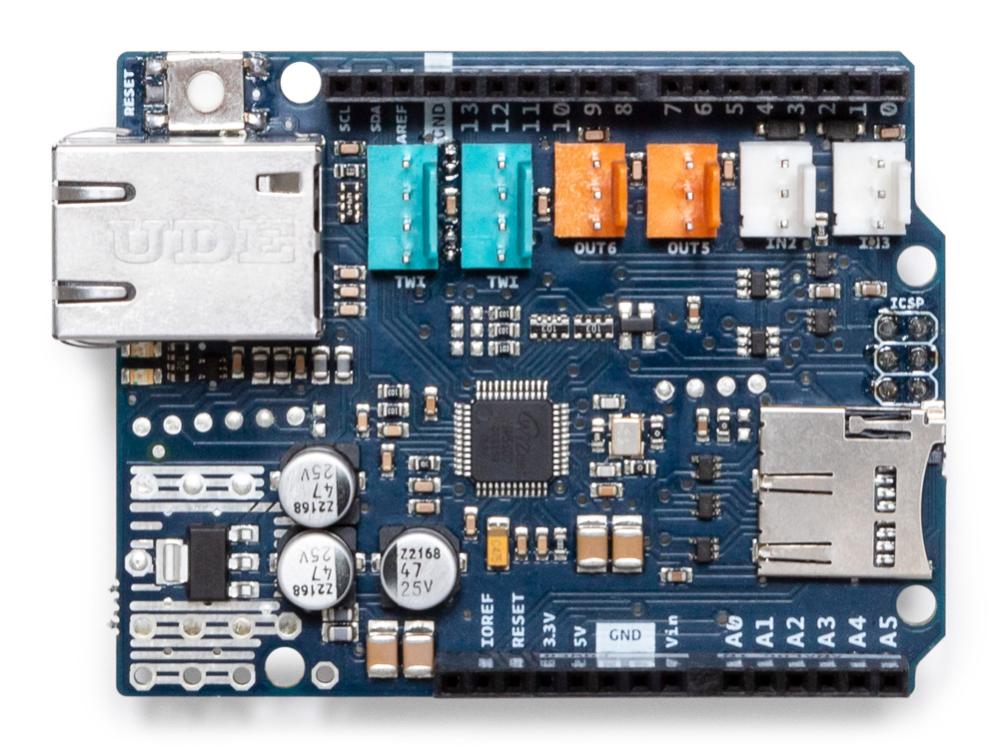

The Arduino Ethernet Shield 2 connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino Board, connect it to your network with an RJ45 cable (not included) and follow a few simple steps to start controlling your world through the internet. As always with Arduino, every element of the platform - hardware, software and documentation - is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own circuits. Hundreds of thousands of Arduino Boards are already fueling people's creativity all over the world, everyday. Join us now, Arduino is you!
Requires an Arduino Board (not included)
Operating voltage 5V (supplied from the Arduino Board)
Ethernet Controller: W5500 with internal 32K buffer
Connection speed: 10/100Mb
Connection with Arduino on SPI port
Input Voltage Plug (limits): 6-20V
Input Voltage PoE (limits): 36-57V
Operating Voltage: 5 V
Current needs: 87ma (with WebServer sketch and 9V on the DC plug)
Requires an Arduino Board (not included)
Operating voltage 5V (supplied from the Arduino Board)
Ethernet Controller: W5500 with internal 32K buffer
Connection speed: 10/100Mb
Connection with Arduino on SPI port
Input Voltage Plug (limits): 6-20V
Input Voltage PoE (limits): 36-57V
Operating Voltage: 5 V
Current needs: 87ma (with WebServer sketch and 9V on the DC plug)
