Product description

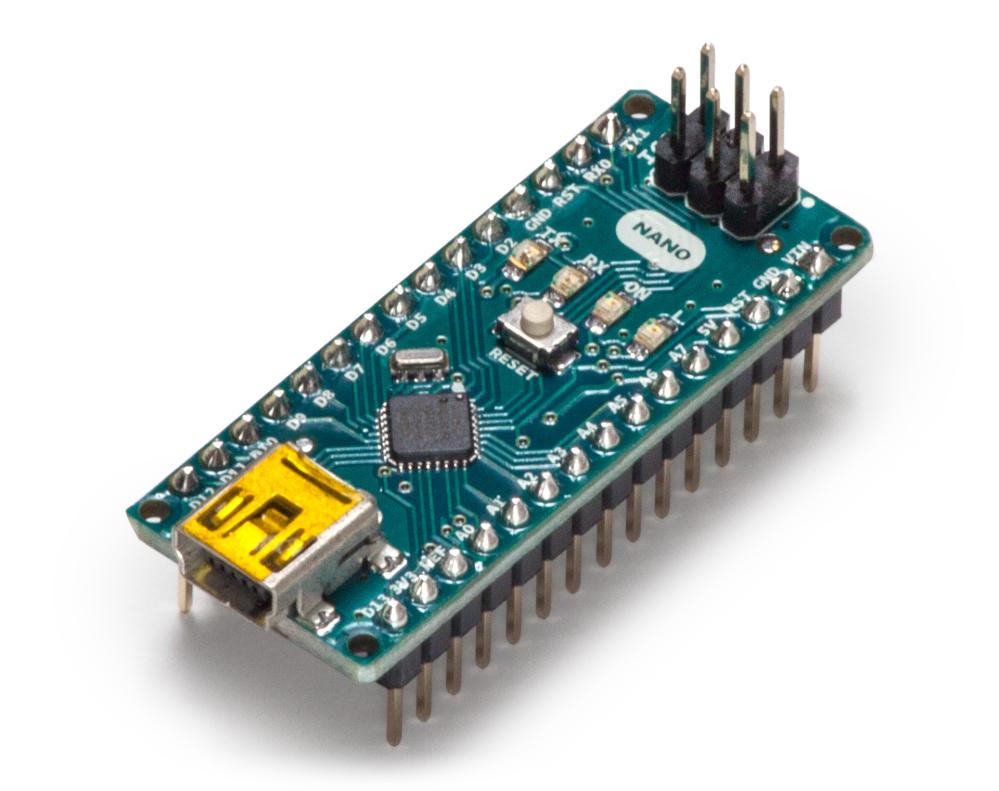

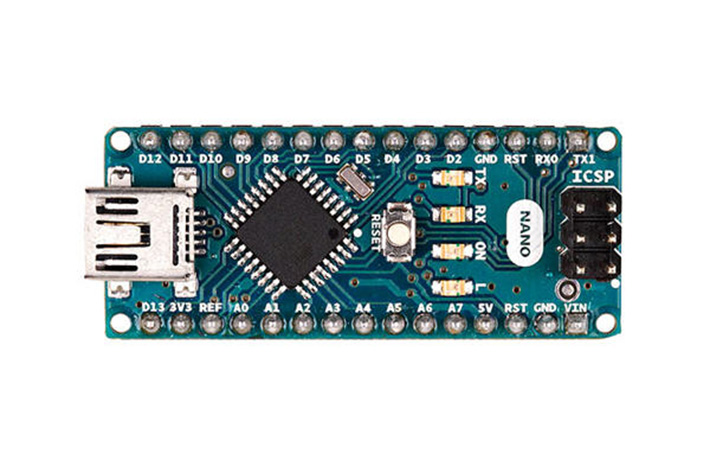

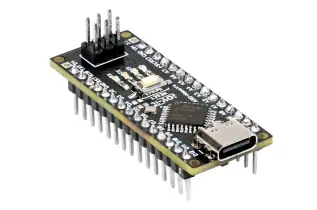

Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is a smallest, complete, and breadboard friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack and power select jumper. Since the Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.
Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). It's a four-layer board with power and ground planes to help provide ICs with sufficient charge during switching and reduce noise (EMC) on high speed switching I/O pins. Ground plane help reduce radiation (EMI). Power plane is low in inductance; therefore any transients that may develop on the power line will be at lower levels.
You end up paying less with Nano than Mini and USB combined!
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 44x18mm
Features:
* Automatic reset during program download
* Power OK blue LED on the bottom
* Green (TX), red (RX) and orange (L) LED
* +5V to AREF jumper
* Auto sensing/switching power input
* Small mini-B USB for programming and serial monitor
* ICSP header for direct program download
* Power OK blue LED on the bottom
* Standard 0.1" spacing DIP (breadboard friendly)
* Manual reset switch
Power:
The Arduino Nano can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). It's a four-layer board with power and ground planes to help provide ICs with sufficient charge during switching and reduce noise (EMC) on high speed switching I/O pins. Ground plane help reduce radiation (EMI). Power plane is low in inductance; therefore any transients that may develop on the power line will be at lower levels.
You end up paying less with Nano than Mini and USB combined!
Specifications:
Microcontroller Atmel ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (of which 2KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 44x18mm
Features:
* Automatic reset during program download
* Power OK blue LED on the bottom
* Green (TX), red (RX) and orange (L) LED
* +5V to AREF jumper
* Auto sensing/switching power input
* Small mini-B USB for programming and serial monitor
* ICSP header for direct program download
* Power OK blue LED on the bottom
* Standard 0.1" spacing DIP (breadboard friendly)
* Manual reset switch
Power:
The Arduino Nano can be powered via the mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
