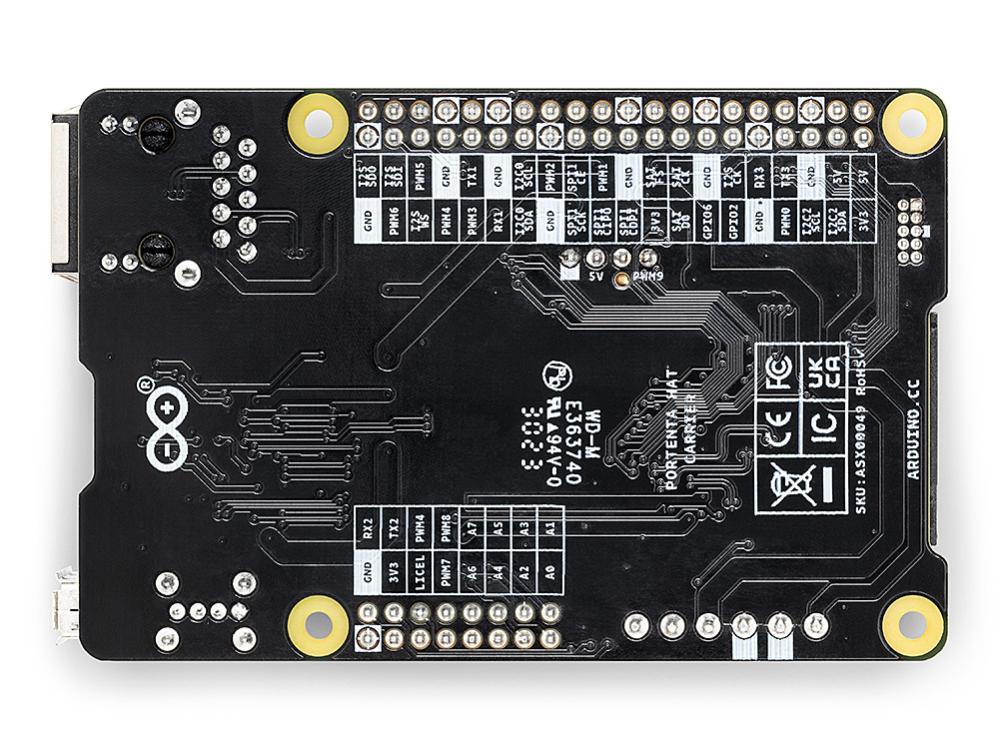

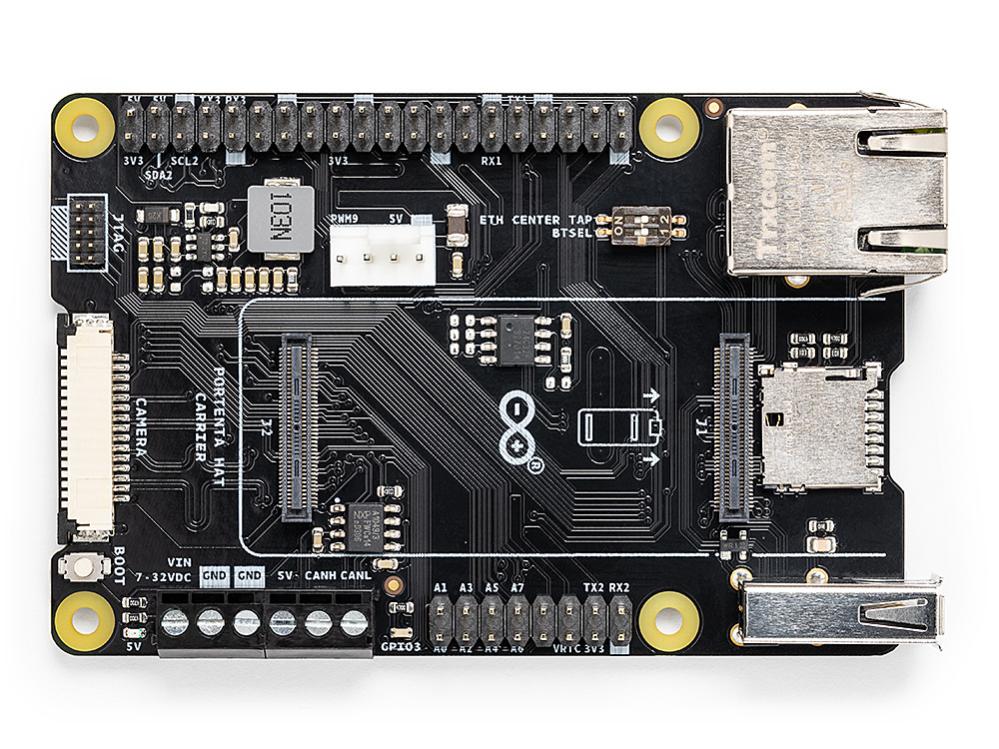

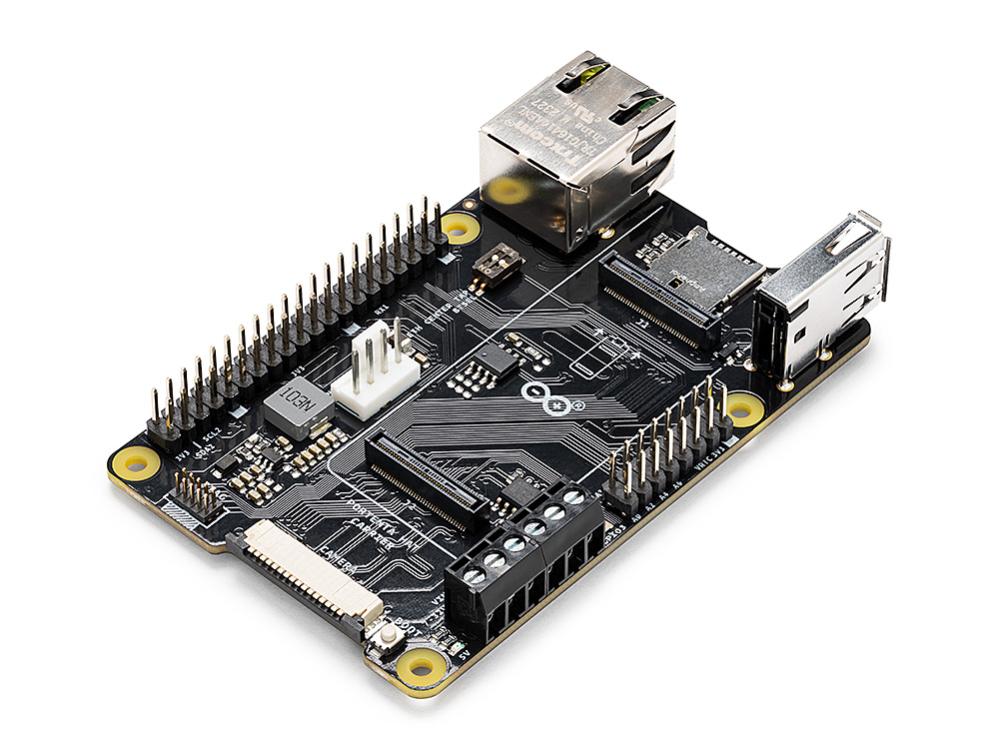

Product description
Portenta Hat Carrier is a reliable and robust carrier that transforms Portenta X8 into an
industrial single board computer compatible with Raspberry Pi® Hats and cameras.
Ready for multiple industrial applications such as building automation and machine
monitoring.
Compatible also with Portenta H7 and Portenta C33, Portenta Hat Carrier provides easy
access to multiple peripherals - including CAN, Ethernet, microSD and USB - and further
extends any Portenta application.
Great for prototyping and ready for scaling up, it extends the features found on a typical
Raspberry Pi® Model B. Debug quickly with dedicated JTAG pins and keep heat manageable
under intense workloads with a PWM fan connector. Control actuators or read analog
sensors via the additional 16x analog I/Os. Add industrial machine vision solutions to any
project by leveraging the onboard camera connector.
Key benefits include:
* Add Raspberry Pi® Hats to your Portenta projects
* Quickly access CAN, USB, Ethernet peripherals
* Leverage onboard MicroSD card to log data
* Enjoy simple debugging through the onboard JTAG pins
* Easily control actuators and read sensors via 16x analog I/Os
* Leveraging the onboard camera connector for machine vision
* Discover a great prototyping tool for scalable Portenta applications!
Tech Specs
Connectors:
* High-density connectors compatible with Portenta products
* 1x USB-A female connector
* 1x Gigabit Ethernet connector (RJ45)
* 1x CAN with onboard transceiver
* 1x MIPI Camera connector
* 1x MicroSD card slot
* 1x PWM fan connector
* 40 pin header connector allowing compatibility with Raspberry Pi Hats
* 16 pin analog header connector
Interfaces:
* CAN
* UART
* SAI
* SPI
* I2C
* PWM
Debugging: Onboard JTAG pins
Power:
* From onboard screw terminal block allowing:
- 7-32V power supply, powering both the carrier and the connected Portenta
- 5V power supply
* From USB-C on Portenta
* From 5V on 40 pin header connector
Operating temperatures: -40° C to +85° C (-40° F to 185 °F)
Dimensions: 85 mm x 56 mm (3.35 in x 2.6 in)
