Product description

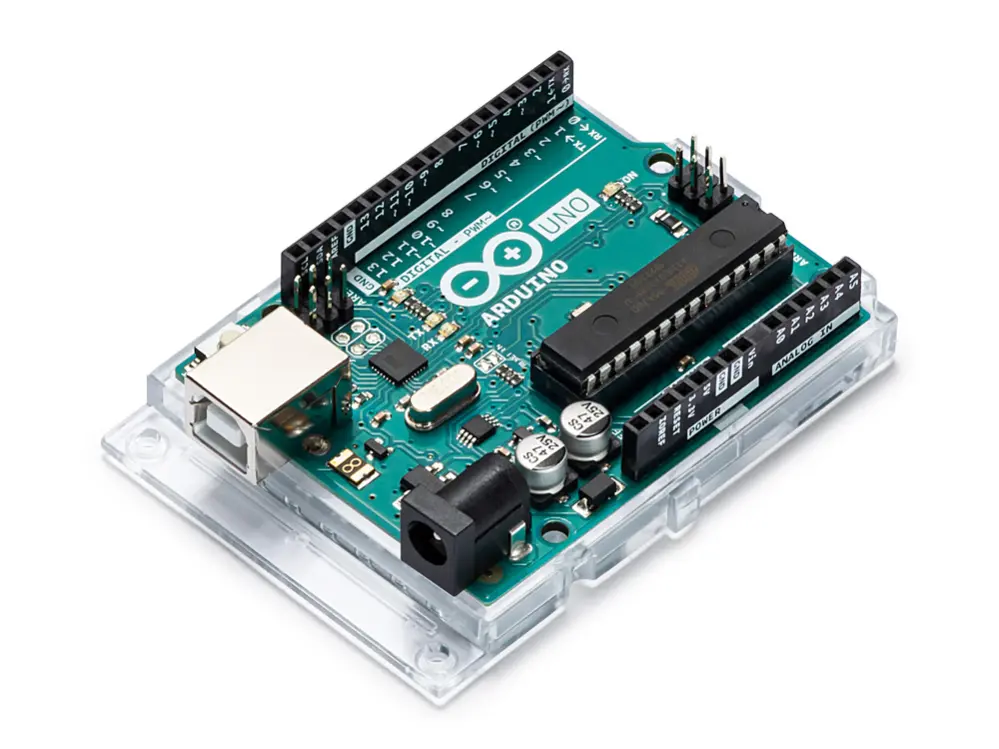

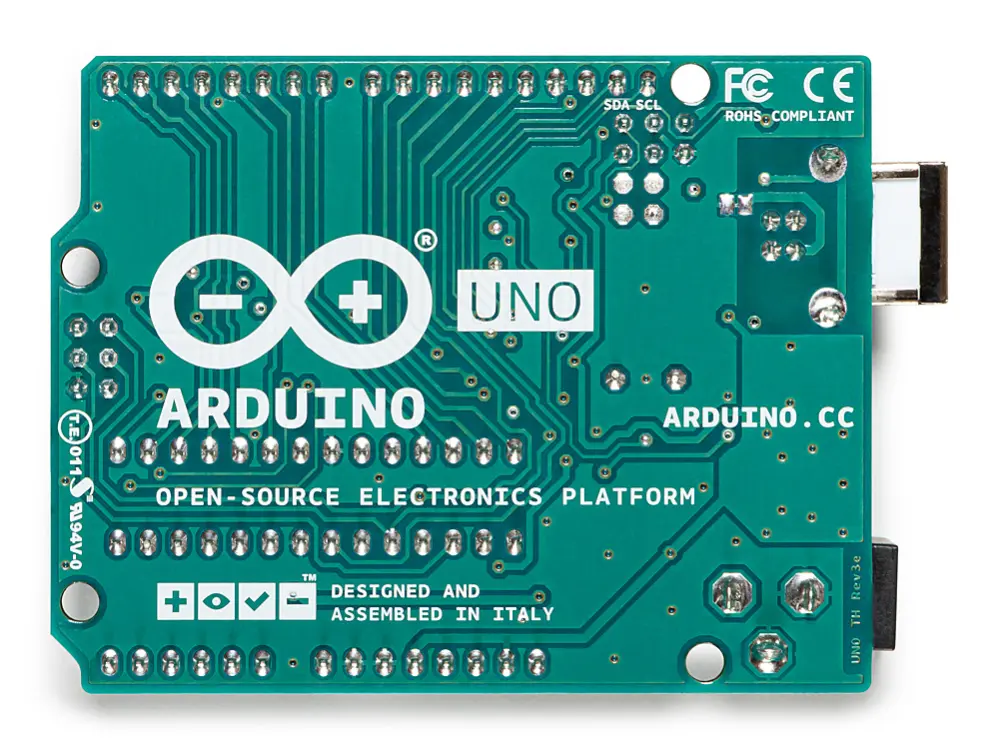

This is the new Arduino Uno R3 based on ATmega328.
The USB interface is based on ATmega16U2 (where the older versions had an FTDI chip). The device can also communicate as a HID device.

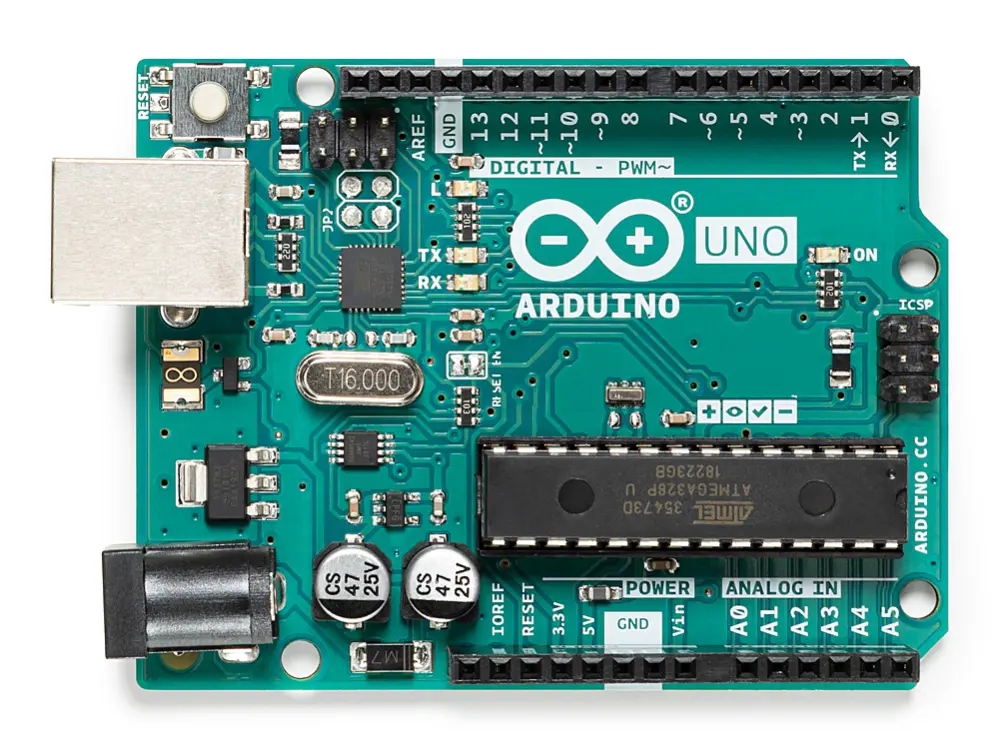

The Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.
Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
ATmega328 microcontroller
Input voltage - 7-12V
14 Digital I/O Pins (6 PWM outputs)
6 Analog Inputs
32k Flash Memory
16Mhz Clock Speed
Connects to your PC via USB cable (not included)
The USB interface is based on ATmega16U2 (where the older versions had an FTDI chip). The device can also communicate as a HID device.
The Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.
Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
ATmega328 microcontroller
Input voltage - 7-12V
14 Digital I/O Pins (6 PWM outputs)
6 Analog Inputs
32k Flash Memory
16Mhz Clock Speed
Connects to your PC via USB cable (not included)
