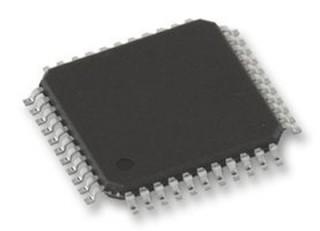

ATMEGA162-16AU TQFP-44
Art no: 40367132 - Microchip
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Microcontroller based on the AVR RISC architecture.
Max CPU operating frequency: 16MHz
Flash: 16kB
RAM: 1kB
EEPROM: 512B
Features
* Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
* Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and Capture Modes
* Real Time Counter with Separate Oscillator
* Six PWM Channels
* Dual Programmable Serial USARTs
* Master/Slave SPI Serial Interface
* Programmable Watchdog Timer with Separate On-chip Oscillator
* On-chip Analog Comparator
* Power-on Reset and Programmable Brown-out Detection
* Internal Calibrated RC Oscillator
* External and Internal Interrupt Sources
* Five Sleep Modes: Idle, Power-save, Power-down, Standby, and Extended Standby
* 35 Programmable I/O Lines
* Operating Voltages: 2.7 - 5.5V
* Temperature Range: Industrial (-40° to +85°C)
RoHS compliant
Max CPU operating frequency: 16MHz
Flash: 16kB
RAM: 1kB
EEPROM: 512B
Features
* Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
* Two 16-bit Timer/Counters with Separate Prescalers, Compare Modes, and Capture Modes
* Real Time Counter with Separate Oscillator
* Six PWM Channels
* Dual Programmable Serial USARTs
* Master/Slave SPI Serial Interface
* Programmable Watchdog Timer with Separate On-chip Oscillator
* On-chip Analog Comparator
* Power-on Reset and Programmable Brown-out Detection
* Internal Calibrated RC Oscillator
* External and Internal Interrupt Sources
* Five Sleep Modes: Idle, Power-save, Power-down, Standby, and Extended Standby
* 35 Programmable I/O Lines
* Operating Voltages: 2.7 - 5.5V
* Temperature Range: Industrial (-40° to +85°C)
RoHS compliant
Documents
Technical data
Attribute | Value |
---|---|
Architecture |
8-bit
|
Case |
TQFP-44
|
Clock |
16 MHz
|
Eeprom |
0.5
|
Family |
AVRMega
|
Flash |
16
|
Gpio |
35
|
Pwm |
4
|
Ram |
1
|
Spi |
1
|
Supply-voltage-max |
5.5 V
|
Supply-voltage-min |
2.7 V
|
Timers |
4
|
Uart |
2
|
SKU:
40367132MPN:
ATMega162-16AU
