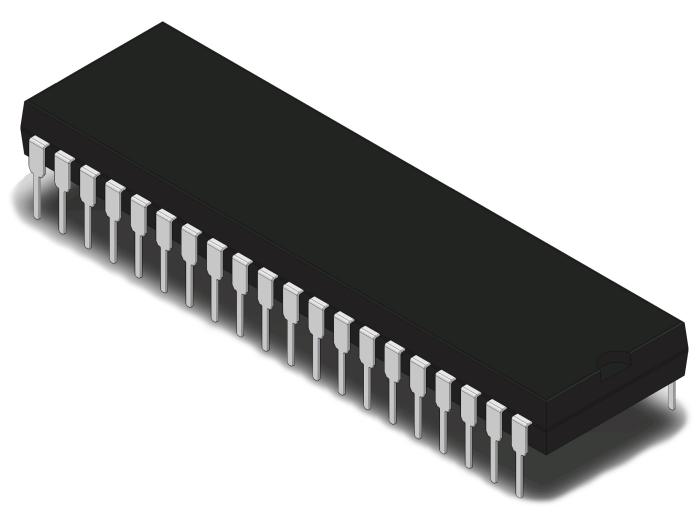

Product description
Microcontroller based on the AVR RISC architecture.
Max CPU operating frequency: 16MHz
Flash: 8kB
RAM: 512B
EEPROM: 512B
Features
* One 8-bit Timer/Counter with Separate Prescaler and Compare Mode
* One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
* Three PWM Channels
* Programmable Serial USART
* Master/Slave SPI Serial Interface
* Programmable Watchdog Timer with Separate On-chip Oscillator
* On-chip Analog Comparator
* Power-on Reset and Programmable Brown-out Detection
* Internal Calibrated RC Oscillator
* External and Internal Interrupt Sources
* Three Sleep Modes: Idle, Power-down and Standby
* 35 Programmable I/O Lines
* Operating Voltages: 4.5 - 5.5V
* Temperature Range: Industrial (-40° to +85°C)
