Product description

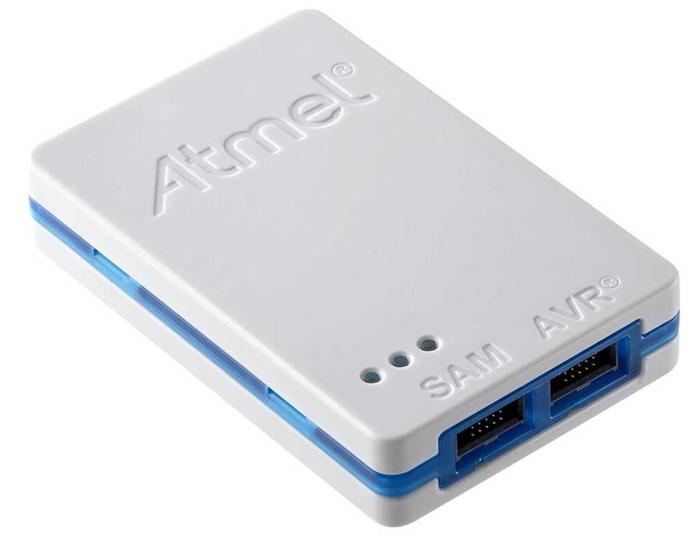

Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.
Atmel-ICE supports:
Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface
Key Features
Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
Full source-level debugging in Atmel Studio
Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
Up to 128 software breakpoints
1.62 to 5.5V target operation
USB powered
Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

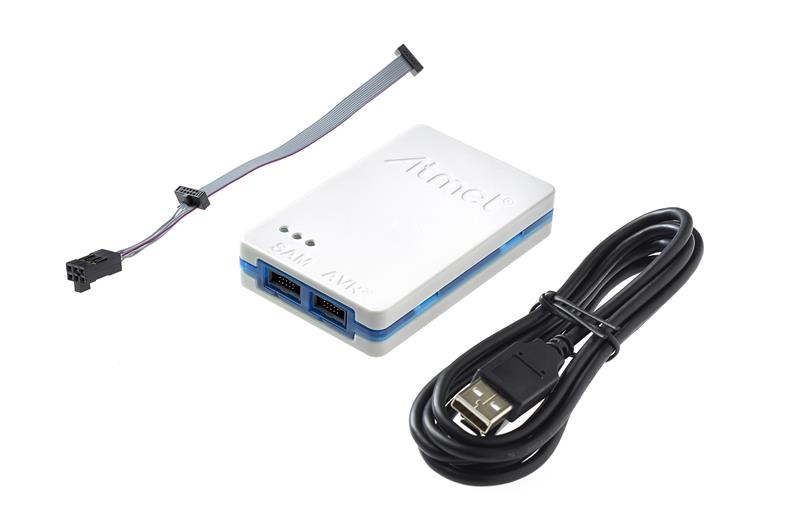

Supplied with:
Atmel-ICE board w/enclosure
USB TypeA/MicroB cable
Atmel-ICE flat cable which supports 10-pin 50mil (SAM and AVR) and 6-pin 100mil (AVR) connectors
