Audio analyzer - soldering kit

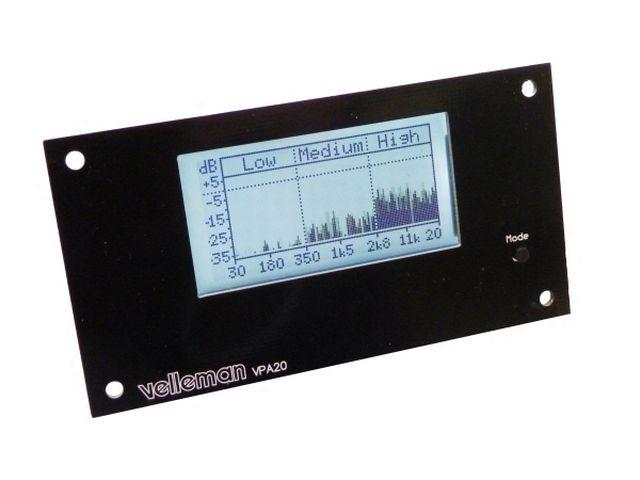

Small and compact panel mounted audio analyzer. Give your homemade audio gear a high-tech look!

Features:

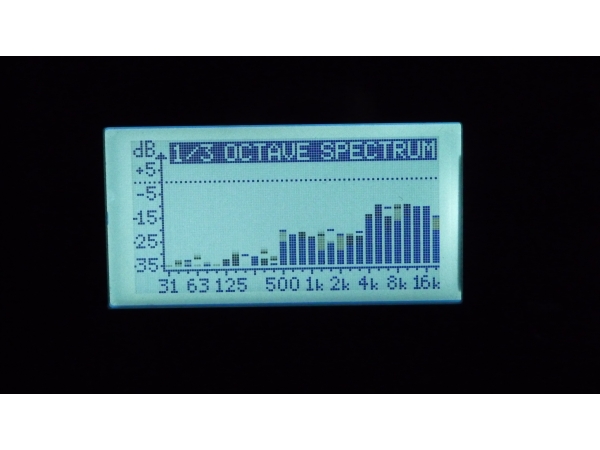

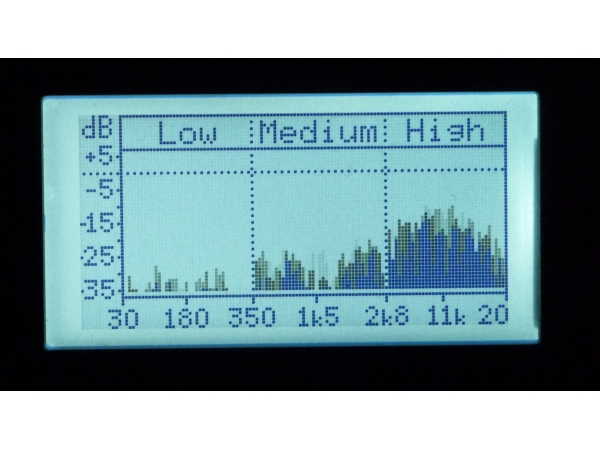

Measure: peak power, RMS power, mean dB, peak dB, linear audio spectrum, 1/3 octave audio spectrum
Auto or manual range selection
Peak-hold function
Speaker impedance selection
White backlit LCD
Easy panel mounting

Specifications:
power measurement into 2, 4 or 8 ohms + bridged amp option
range: 300mW to 1200W @ 2 ohms
sensitivity: -34dBu (15.5 mVrms)
max. input level: 50Vrms @ 220k
frequency range: 20Hz to 20kHz
power supply: 12VDC / 75mA
dimensions:
display: 128 x 64mm / 5 x 2.5" (46 x 24mm / 1.8 x 0.95")
front panel: 98 x 51mm / 3.8 x 2"
mounting depth: 35mm / 1.37"

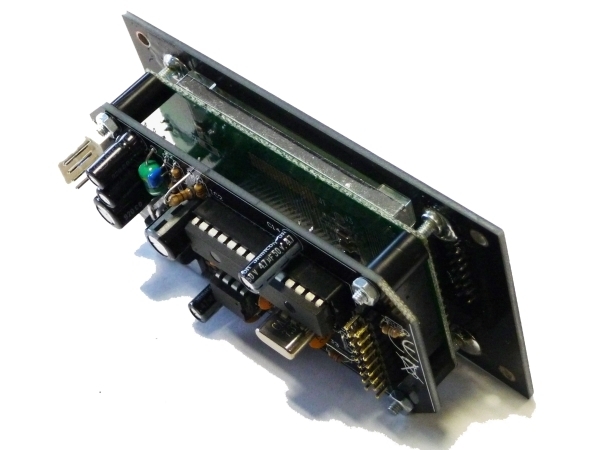

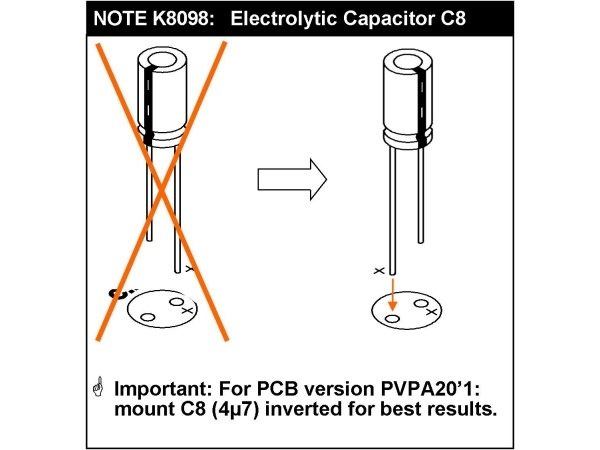

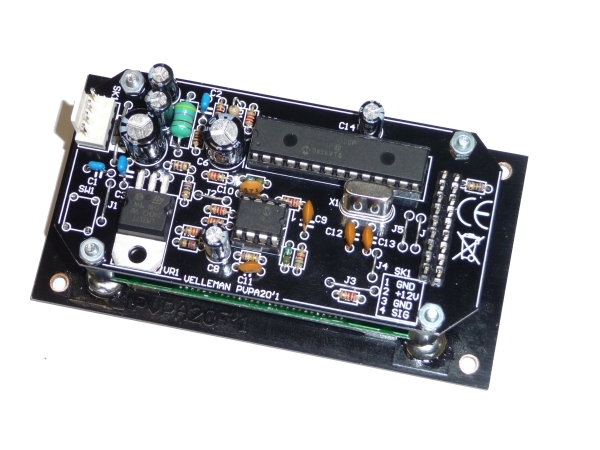

Note! C8 (4.7uF) should be mounted oposite to silk screen for best results.
This applies to PCB version PVPA201
