Product description

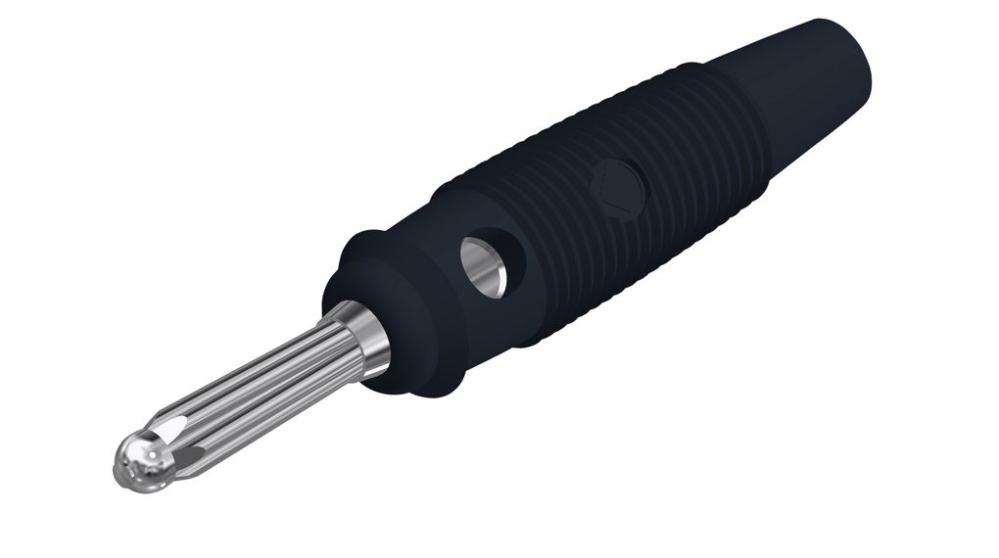

Hirschmann 4 mm connector. Multi-spring cable connector, flexible, shatterproof insulated sleeve with transverse holes. The sleeve end also serves as a break protection. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.
Specifications:
- Product type: 4 mm connector, Banana plug, Lab plug, Lab connector
- Manufacturer: Hirschmann
- Dimensions: 4 mm
- Plug material: Nickel-plated brass
- Contact resistance: 3 mOhm
- Temperature range: -25°C to +70°C
- Sleeve material: PVC-P
- Colour: Red
- Terminal connection: Solder (up to 2.5 mm² cable)
- Function: Multi-spring plug. Stackable (4 mm hole)
