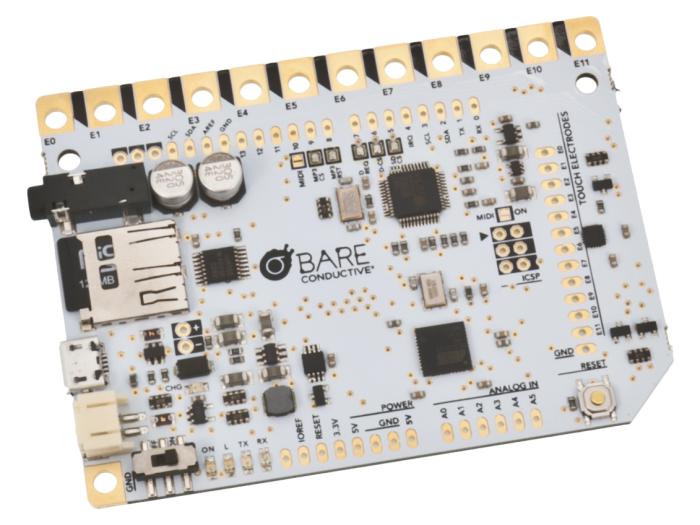

Bare Conductive Touch Board

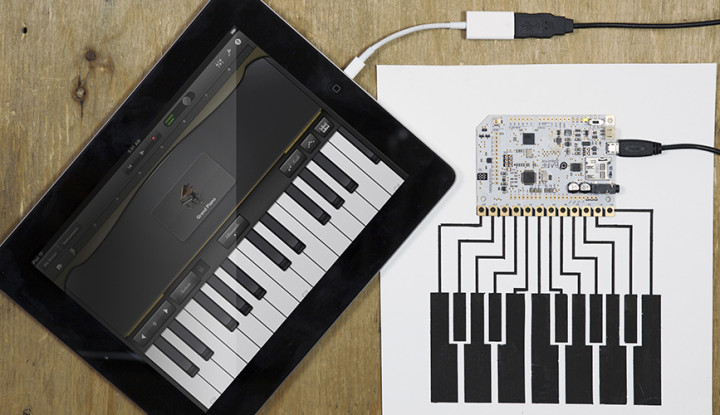

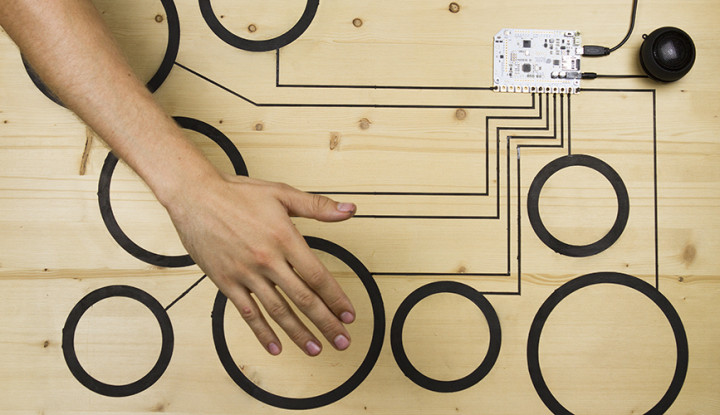

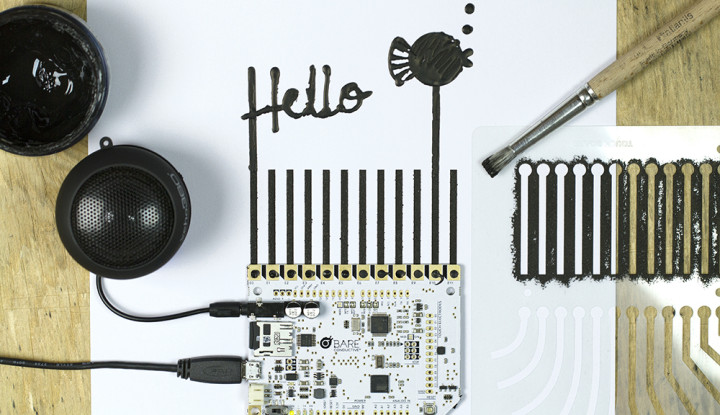

The Touch Board is designed as an easy-to-use platform for a huge range of projects. Use the Touch Board to change the world around you by turning almost any material or surface into a sensor. Paint a lightswitch on your wall, make a paper piano or create a custom interactive surface. Connect anything conductive to one of its 12 electrodes and trigger a sound via its onboard MP3 player, play a MIDI note or do anything else that you might do with an Arduino or Arduino-compatible device.

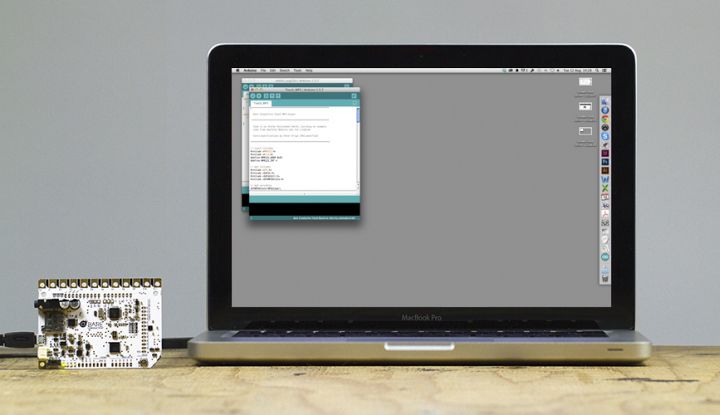

Arduino compatible (recognised as an Arduino Leonardo in IDE)
Atmel ATMega32U4 Microprocessor
Freescale MPR121 dedicated touch interface
VLSI VS1053B audio processor
Arduino Shield Compatible (check pins available)
32 KB of Flash Memory of which 4 KB is used for bootloader
5V operating voltage (automatic voltage selector for USB or battery operation)
Built in LiPo battery charging with onboard boost circuit for 5V operation
16 MHz clock speed
Can be powered and programmed over USB
20 digital I/O pins (3 used for Touch IC and 5 for MP3 IC - can be disabled)
7 PWM channels
12 analog input channels
12 Touch electrodes of which 8 can be configured as extra digital inputs or outputs with PWM capability
84mm x 62mm foot print with maximum height of 10mm (audio connector)
On/Off switch
