Product description

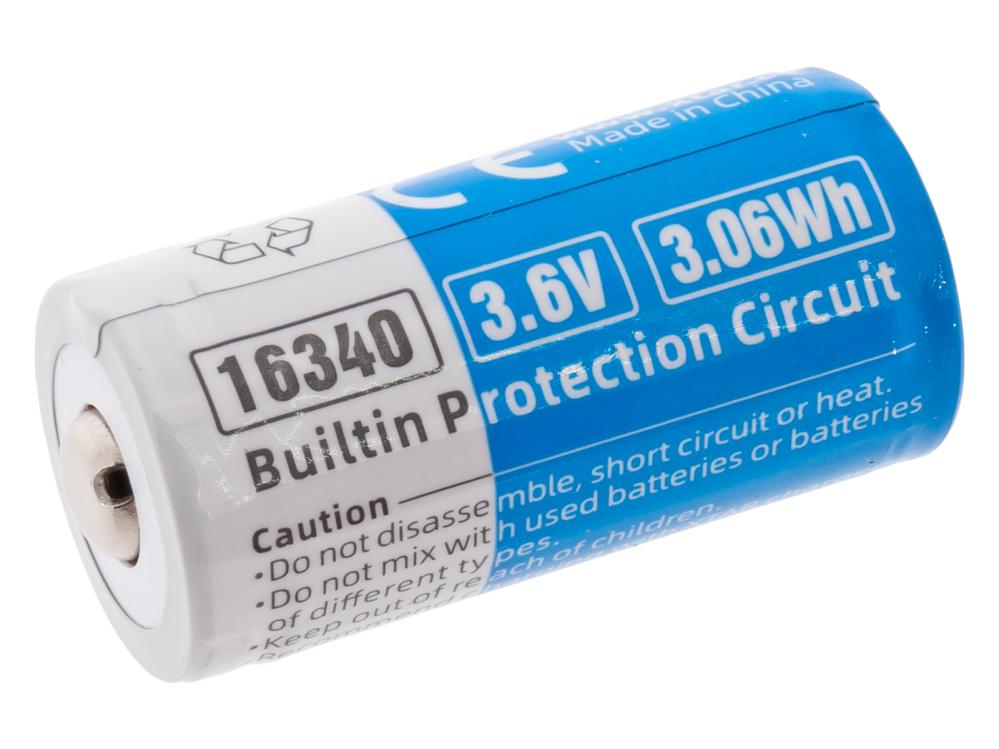

16340 Li-ion battery cell with built-in protection circuit that safeguards against overcharging, overheating, overcurrent, deep discharge and short circuit. Features: long life and low self-discharge. Suitable for use in e.g. flashlights. Manufactured by Xtar. Battery cells with built-in protection circuit can be used in series but should be charged individually (charge in battery chargers with separate charging channels).
Specifications:
- Nominal capacity: 850 mAh (min 800 mAh)
- Nominal voltage: 3.6 V
- Max charging voltage: 4.2V
- Cutoff voltage: 2.5V
- Standard charging current: 600 mAh (or lower)
- Max discharge current: 2.5A
- Weight: 18g
- Operating temperature charging: 0 to 45 °C.
- Operating temperature discharge: -20 to 50 °C.
- Terminals: Standard battery poles
Dimensions:
- Height: 34 mm
- Diameter (Ø): 16.5 mm
Safety recommendations:
- Do not discharge the cell with currents (A) higher than those indicated in the specification
- Do not charge the cell with currents (A) higher than those listed in the specifications
- Do not short-circuit the cell
- In battery packs (series connection), do not mix cells of different type, manufacture or degree of usage
- Use the cell within the temperatures specified by the manufacturer
- Do not use, recycle cells with physical or functional damage
- Do not allow contact with water or other liquids
- Never incorrectly polarize the cell
- Never solder directly to the cell's poles, use a battery holder
