Product description

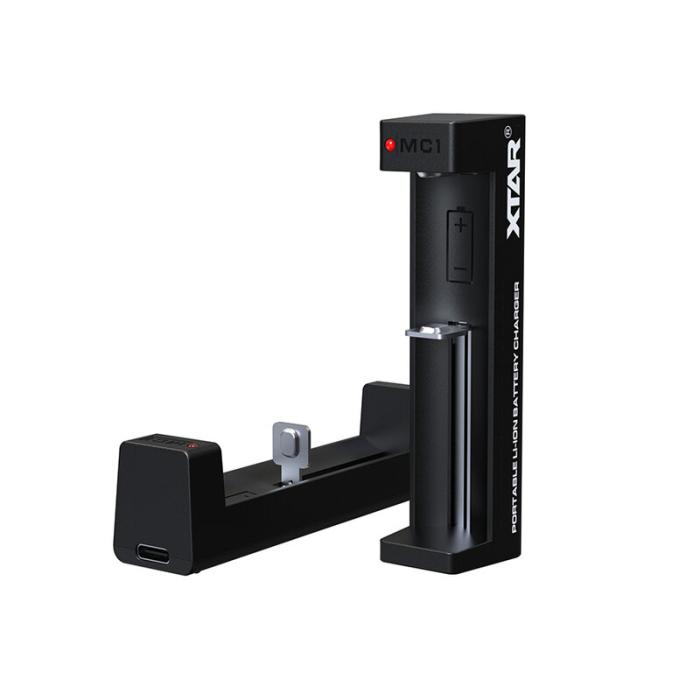

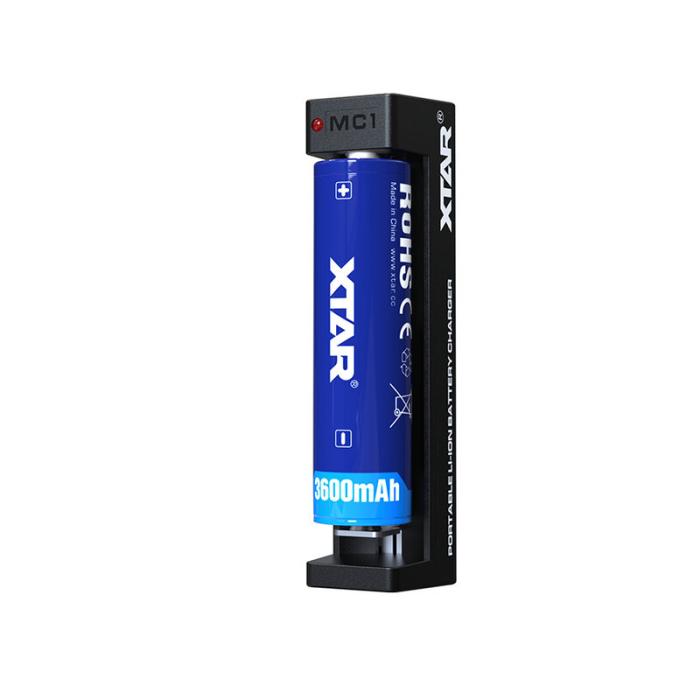

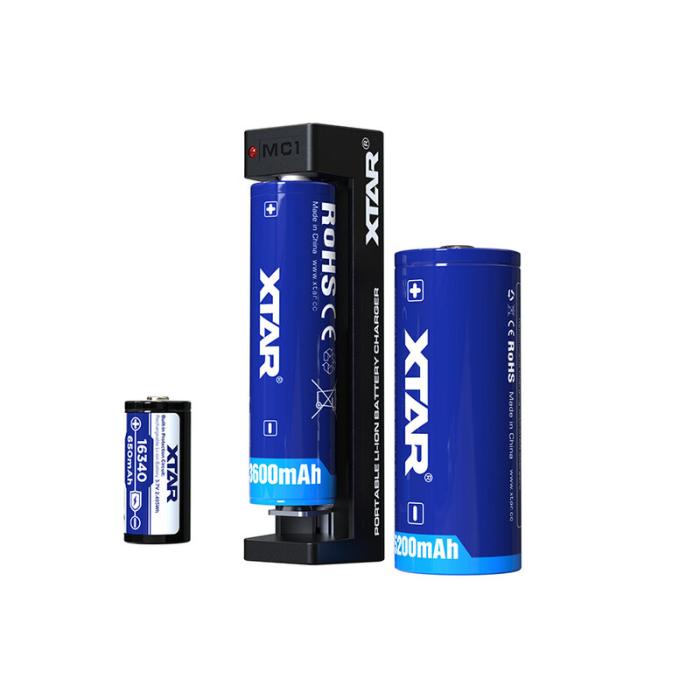

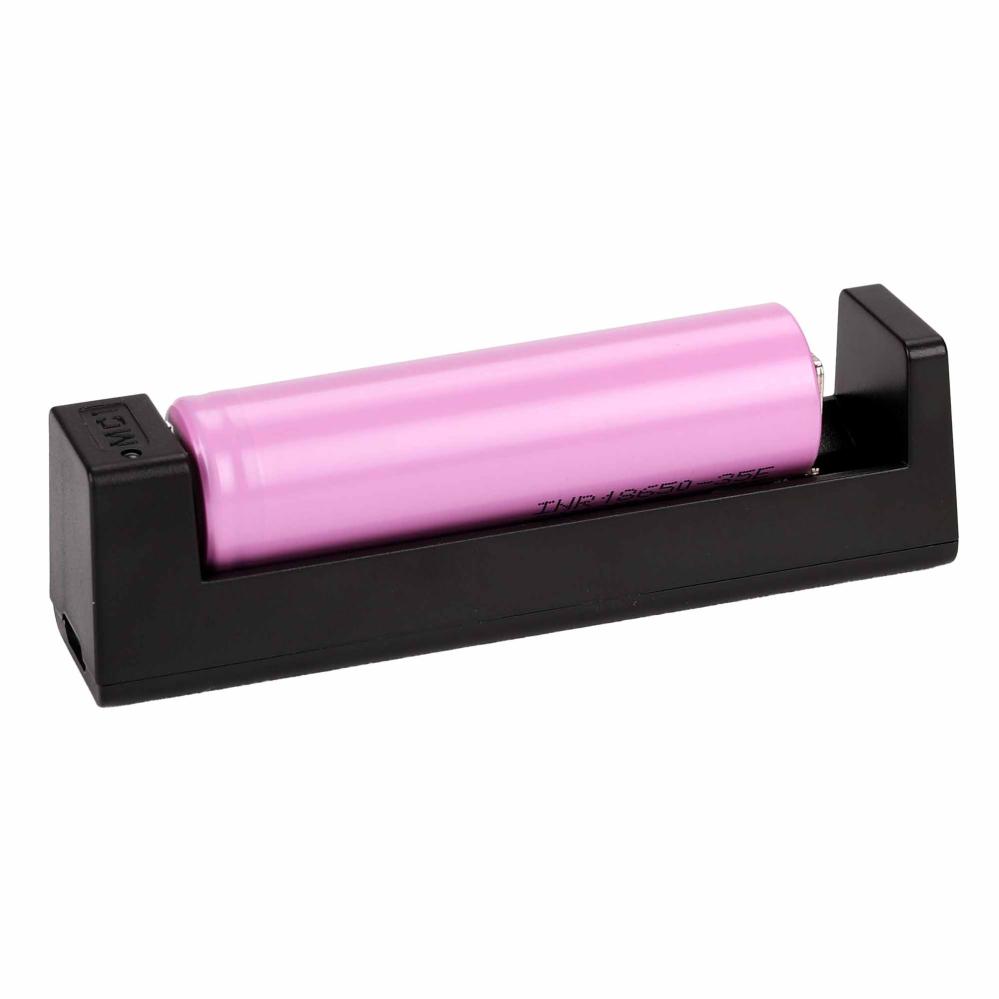

XTAR MC1 is a 3-stage charger for 3.6 (3.7) volt Li-ion batteries. Suitable for several different cell sizes: 14500, 14650, 16340, 17500.17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500 and 26650. The charger is very safe and specially designed for Li-Ion cells that do not have their own protection circuit. Also works with Li-Ion cells that have a built-in protection circuit. The charger has one charging channel controlled by a microprocessor. Red LED indicates charging. Completed charging is indicated by a green LED. Controlled charging limits harmful wear and tear, so optimal cell performance can be maintained for a long time, even after many charging cycles.
Operation 3-stage charging:
- Step 1 - Temperature controlled charging (TC)
- Step 2 - Constant current charging (CC)
- Step 3 - Final charge is with constant voltage 4.2V (CV)
Thanks to the 3-step charge, fully discharged battery cells can be brought back to life. The charger has built-in protection against overcharging, short circuit, overheating and incorrect polarization of battery cells. Supplied with USB-A to USB-C cable. Supplied without USB charger and without battery cells.
Specifications:
Charging current: 0.5A
Recommended USB charger: 5V 1A (5W) e.g. 41021488

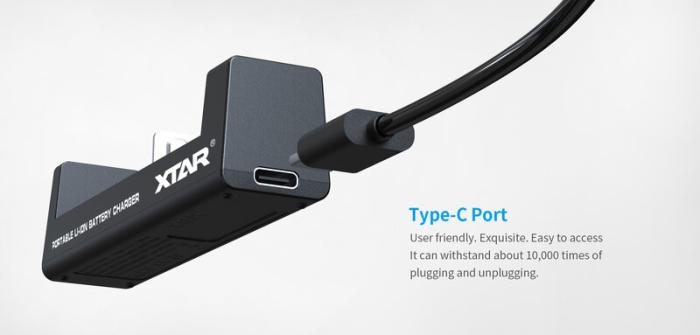

Battery charger connection: USB-C
Dimensions: 92x22x26 mm
Weight: 24
