Product description

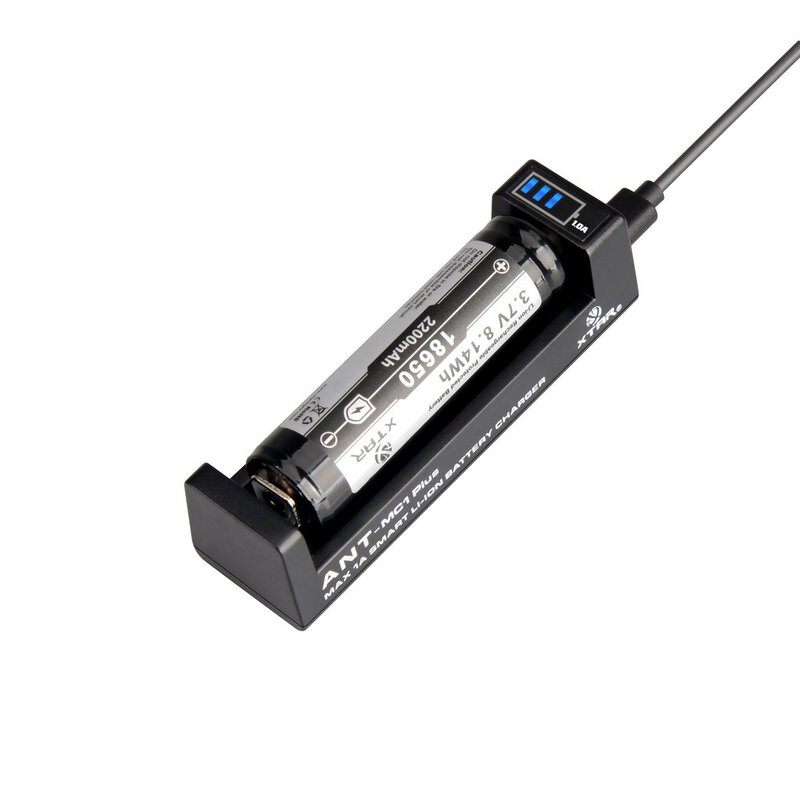

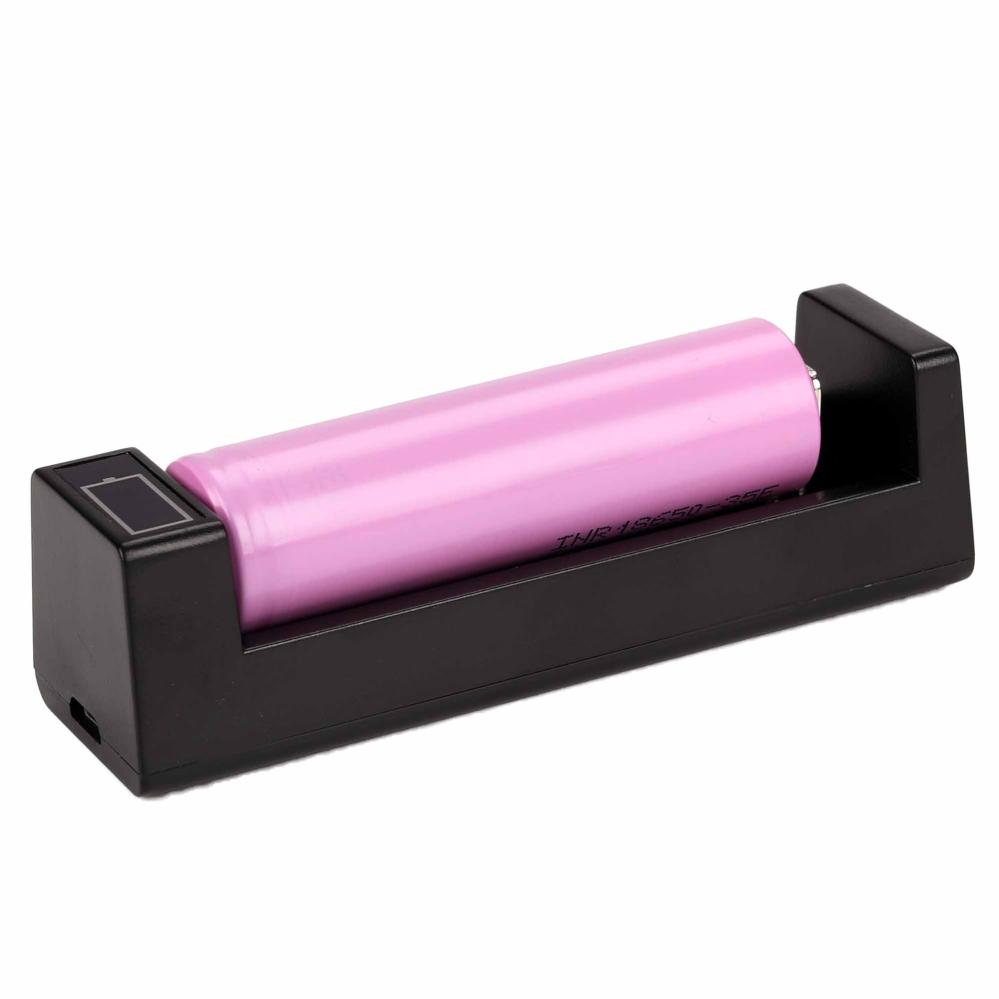

XTAR ANT MC1 Plus is a 3-Stage charger for 3.6 (3.7) volt Li-ion batteries. Suitable for several different cell sizes: 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500 and 26650. The charger is very safe and specially designed for Li-Ion cells that do not have their own protection circuit. It also works with Li-Ion cells that have a built-in protection circuit. The charger has one charging channel controlled by a microprocessor. Blue LED indication shows charging progress. Controlled charging limits harmful wear and tear, so optimal cell performance can be maintained for a long time, even after many charging cycles. The charging current is determined by the length of the cell. Smaller cells (length 54 mm) are charged with 1A.
Function 3-stage charging:
- Step 1 - Temperature controlled charging (TC)
- Step 2 - Constant current charging (CC)
- Step 3 - Final charge is with constant voltage 4.2V (CV)

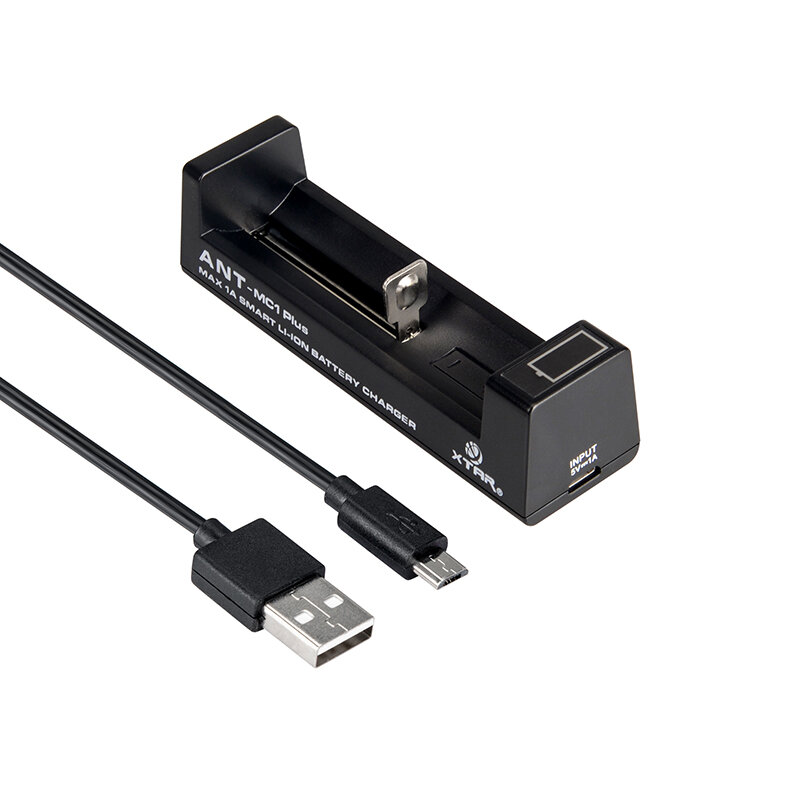

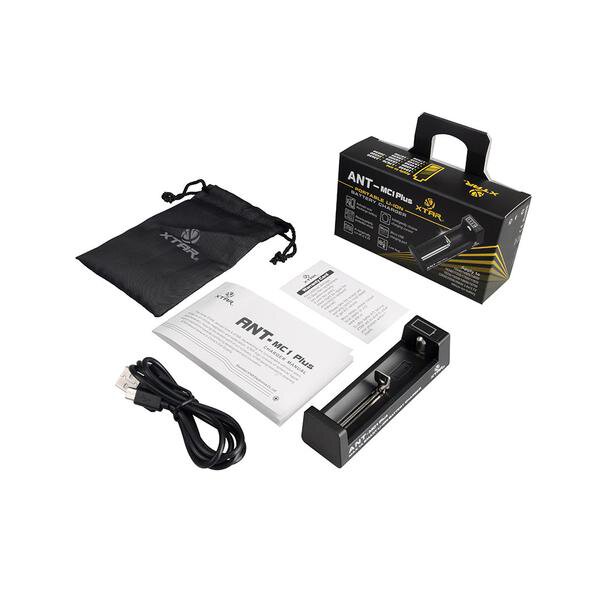

Thanks to the 3-stage charge, fully discharged battery cells can be brought back to life. The charger has built-in protection against overcharging, short circuit, overheating and incorrect polarization of battery cells. Supplied with USB-A to micro-USB cable. Supplied without USB power supply and without battery cells.
Specifications:
- Charging current: 0.5A / 1A
- Recommended USB power supply: 5V 1A (5W) e.g. 41021488
- Battery charger connection: micro-USB
- Dimensions: 92x25x26 mm
- Weight: 26g
