Product description
125 kHz RFID card reader for access control with security. Possibility to add up to 25 RFID tags/ cards with 64-bit encoding. In low-security mode, an unlimited number of tags/ cards can be added. Supplied with 2 RFID cards for easy addition or removal of tags/ cards. The relay output can be activated for an adjustable time of 0.5 seconds to 4 minutes or operate in on/off mode. The RFID coil (front) can be mounted up to 5 meters from the circuit board. Applications are e.g. opening doors, gates, activating and deactivating security systems, preventing unauthorized use of equipment. This card reader is compatible with standard 125 kHz EM4100 tags and cards.
Specifications:
- Storage capacity: up to 25 tags/card (secure mode), Infinite number in unsecure mode
- Relay: NO/NC with possibility of delay 1sec to 4 min
- Indication: With status LED

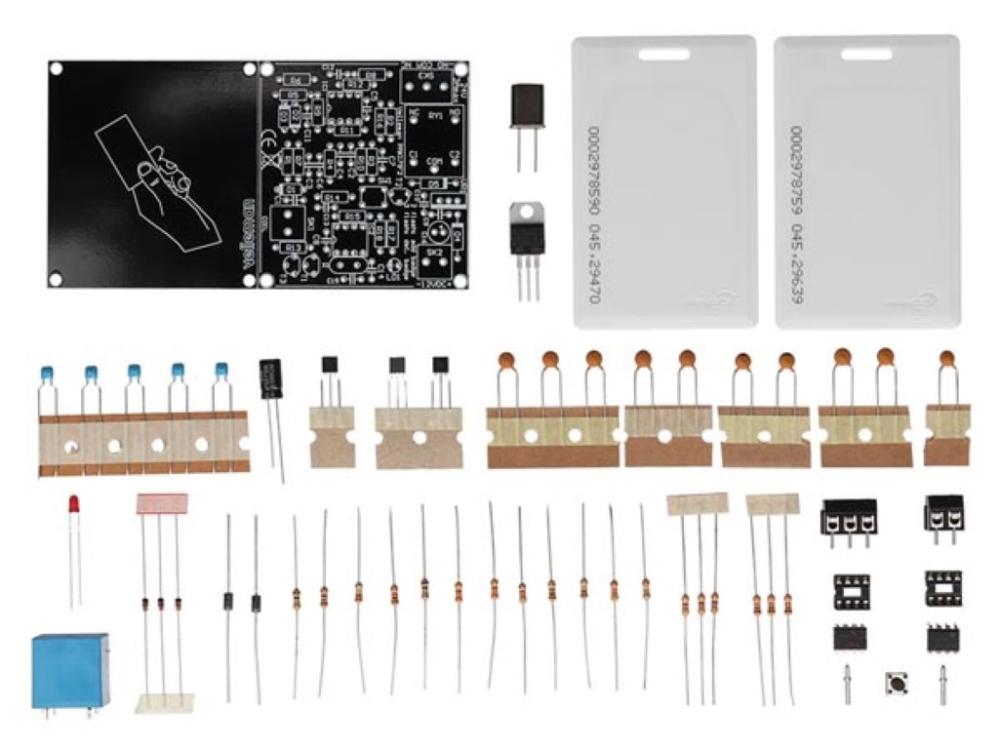

- RFID cards: 2 supplied, type: 125 kHz / EM4100
- Relay contact breaking capacity: 3A/24VDC
- Drive voltage: 12 VDC
- Current consumption (max): 100 mA
- Dimensions: 62x20x66 mm
