Product description

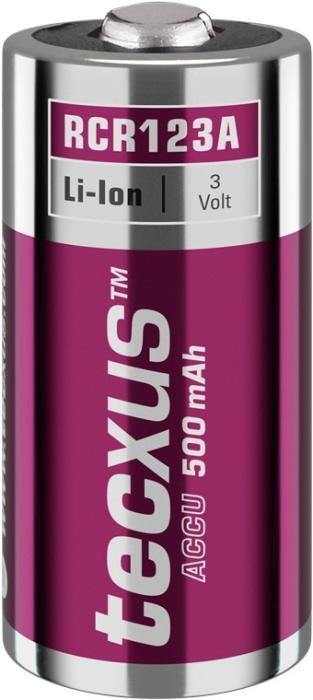

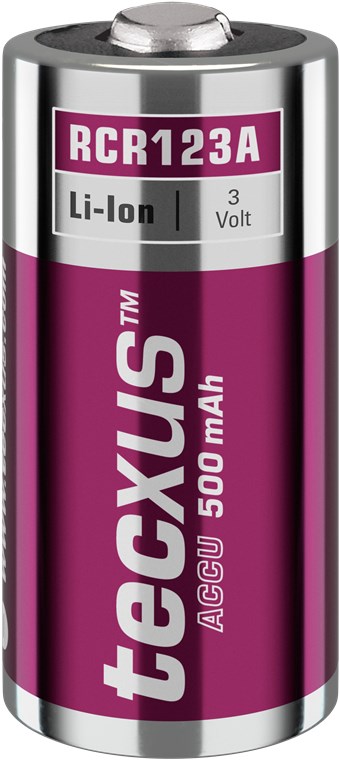

Rechargeable Li-Ion RCR123A Battery with Protection Circuit. Designed to replace the non-rechargeable version of the CR123A. This cell is slightly shorter than the standard CR123A specification, measuring 32.5 mm instead of 34.5 mm. This generally does not cause any compatibility issues.
The built-in protection circuit safeguards against overcharging, overheating, overcurrent, deep discharge, and short-circuiting. The battery features long service life and low self-discharge. Suitable for use in applications such as surveillance cameras, photo cameras, and flashlights. Cells with integrated protection circuits can be connected in series but must be charged individually (using a charger with separate charging channels).
Specifications:
- Nominal capacity: 500 mAh (minimum 470 mAh)
- Nominal voltage: 3.2 V
- Maximum charging voltage: 4.2 V
- Cutoff voltage: 2.5 V
- Standard charge current: 500 mA (or lower)
- Maximum discharge current: 0.5 A
- Weight: 16.5 g
- Operating temperature, charging: 0 to 45 °C
- Operating temperature, discharging: –20 to 50 °C
- Terminals: Standard battery terminals
Dimensions:
- Height: 32.5 mm
- Diameter: ø16.5 mm
Safety Recommendations:
- Do not discharge the cell with a current exceeding the specified limit
- Do not charge the cell with a current exceeding the specified limit
- Do not short-circuit the cell
- Do not mix cells of different type, brand, or usage level in a battery pack
- Use only within the temperature range specified by the manufacturer
- Do not use damaged cells; dispose of them properly
- Avoid contact with water or other liquids
- Never reverse polarity the cell
- Never solder directly onto the battery terminals – use a battery holder
