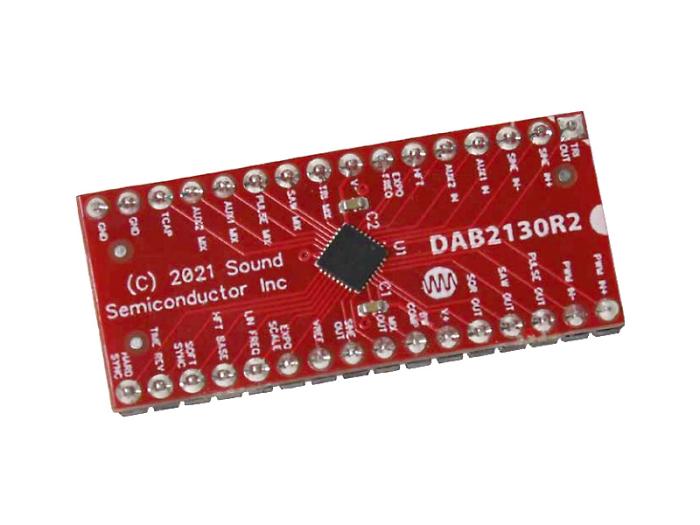

DAB2130R2 DIP-32 VCO breakout board

Art no: 41020155 - Sound Semiconductor

249 SEK

Including 25% VAT

In stock, 14 pcs

Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

The DAB2130 eases prototyping of the SSI2130 Voltage Controlled Oscillator by attaching a SSI2130 and two local power supply decoupling caps onto a compact PCB withthrough-hole connectors. Each pin name is identified, with pin numbers and order maintained relative to the SSI2130. Refer to the SSI2130 data sheet for detailed information on application of the DAB2130.

* Lead pitch: 2.54mm (0.10")
* Row spacing: 15.24mm (0.60")
* Lead diameter: 0.64mm (0.025")
* PCB hole diameter: 1.02mm (0.04")
* Approximate PCB size: 41mm x 18mm
* Cap value: 0.1µF, 50V X7R

Documents

Product information

SKU:
41020155
MPN:
DAB2130R2
