Product description

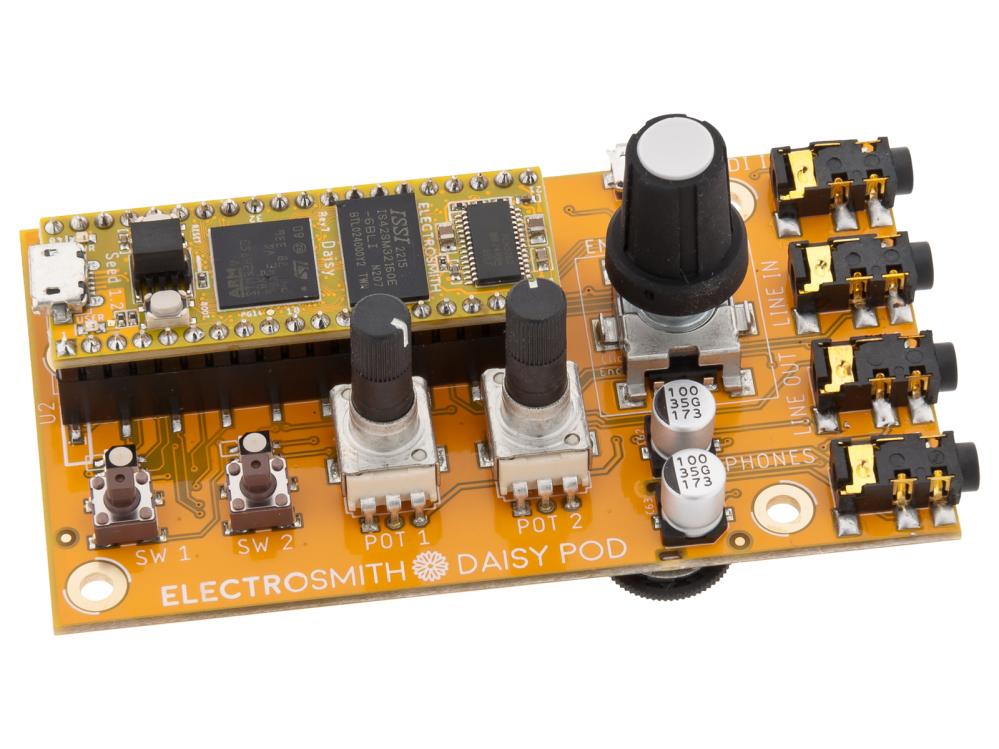

Start programming the Daisy without breadboarding! The Pod is a USB powered breakout board for the Daisy.
With stereo line level I/O, MIDI input and headphone output with a dedicated volume control, this is the feature-packed, small-form breakout to get started with for development.
** Includes x1 Daisy Seed **
? USB Powered (microUSB port via Daisy Seed)
? Peripheral controls:
- 2 plastic potentiometers, 10KB
- 1 clicked encoder, D shaft
- 2 tactile switches
- 2 RGB LEDs

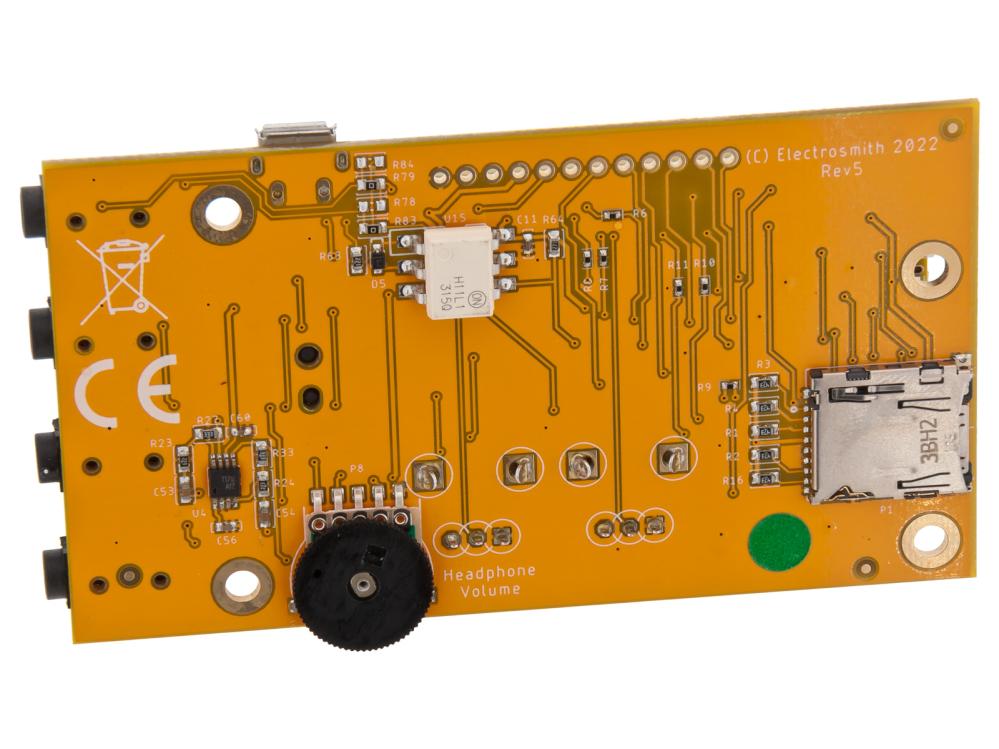

- 1 rotary headphone volume control
? Board connectors
- 3.5mm jacks for stereo audio IO

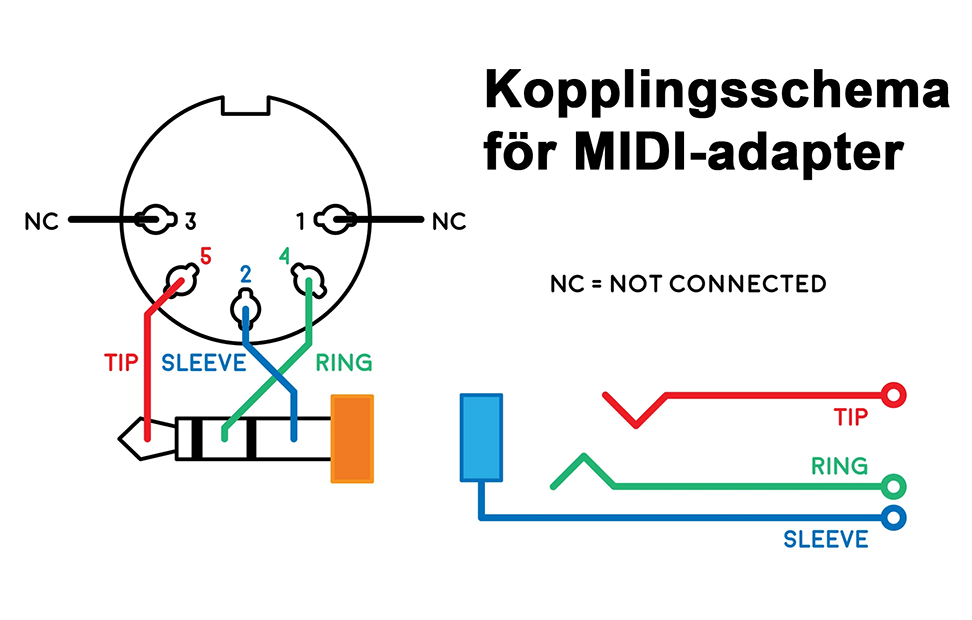

- 3.5mm TRS MIDI input jack
- 3.5mm stereo headphone jack
- 1 onboard microUSB port

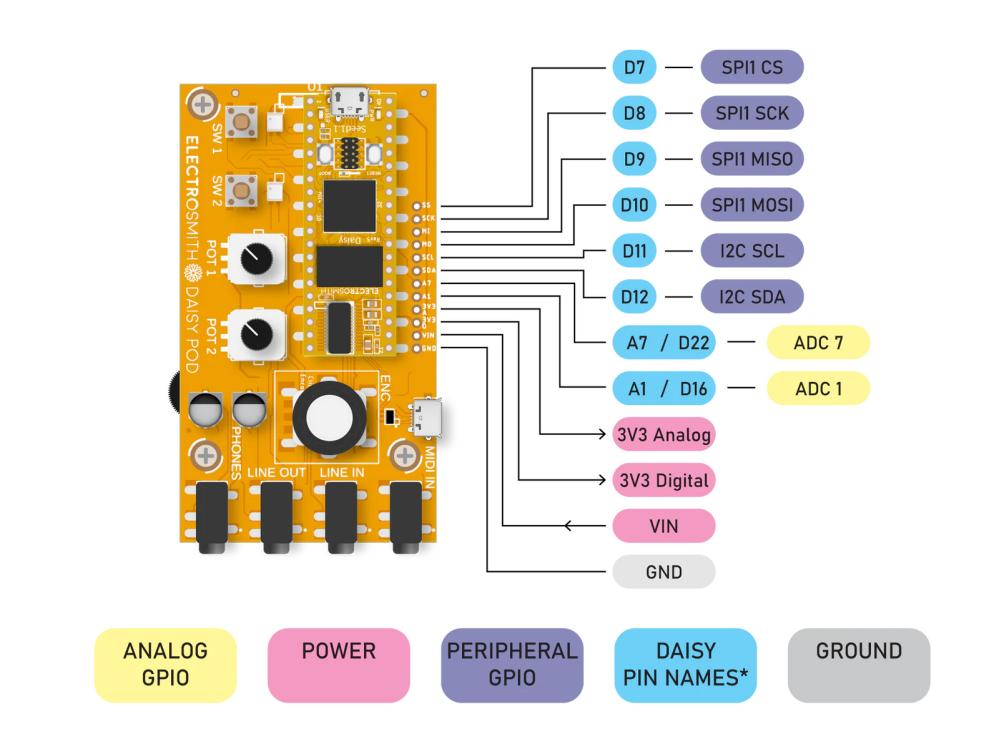

- Extra pinouts for sensors and OLED screens
- Extra pinouts for power and ground
? Open source hardware (MIT license)
? Comprehensive API including DSP building blocks, hardware functionality, and more.
? Daisy Seed onboard:
- 96kHz / 24-bit audio hardware
- 64MB of SDRAM for up to 10 minute long audio buffers
- ARM Cortex-M7 MCU, running at 480MHz
- 31 total GPIO pins with configurable functionality
- 12-bit Digital to Analog Converters (x2)
- SD card interfaces
- PWM outputs
- Serial Protocols for connecting external sensors and devices (SPI, UART, I2s, I2C)
- Dedicated VIN pin for power
- Micro USB port, and additional USB pins for full OTG-support as host and device
