Product description

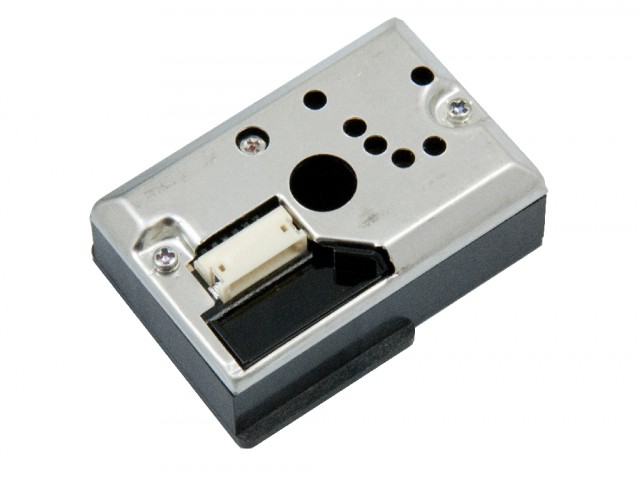

Optical dust sensor from Sharp. The sensor consists of an IR diode and IR sensor to measure the number of particles in the air. Delivers an analog voltage corresponding to the measured amount of particles. Often used in air purifiers to measure air quality. Supplied without connection plug.
Specifications:
- Supply voltage: 5 - 7V
- Current consumption: 11mA (20mA max)
- Sensitivity: 0.5V per 0.1mg/m³
- Dimensions: 46 x 30 x 17.6mm

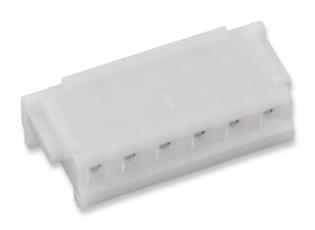

- Connector: ZHR-6 6-pin (e.g. 41011100)
- Weight: 16g
