DC-motor with gearbox 3-12VDC 150:1 20rpm

Art no: 41012278
Shop this product, DC-motor with gearbox 3-12VDC 150:1 20rpm
price 549 SEK
Including 25% VAT
In stock, 10 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Powerful DC motor with full metal gearbox. 6mm D-formed output shaft. This motor can be reversed by switching polarity.
WARNING: This motor must not be stalled as the gearbox may break!

Features:
* Rated voltage: 3 - 12V
* Current (no load): 45mA at 12V
* Speed (no load): 20rpm at 12V
* Current (max load): 500mA
* Torque (max load): 13.3Kg-cm (185oz-in) at 12V
* Gear Ratio: 150:1

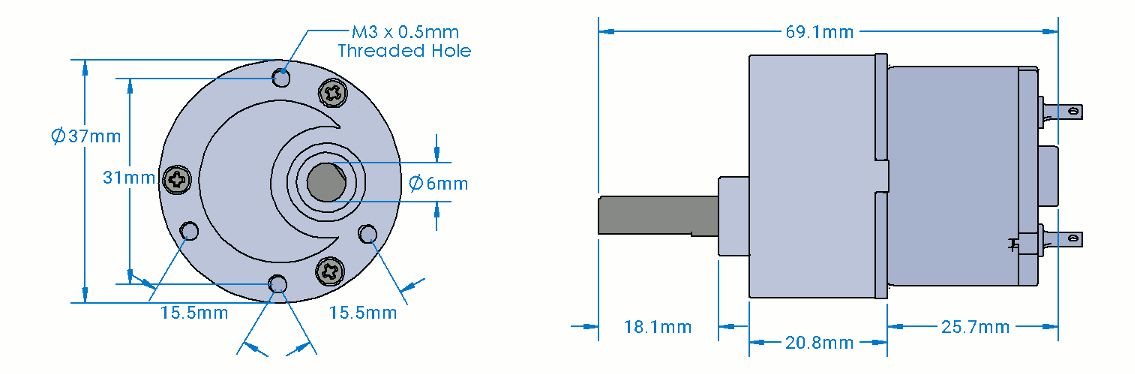

Dimensions:
* Motor: ø37mm x 46.86mm (68.96mm with shaft)
* Shaft: ø6mm x 18.2mm
* Weight: 127.6g

Technical data

Technical data/attributes for this product
Attribute Value
Rpm
20 RPM
Shaft
6mm
Voltage
12 V
  • SKU:

    41012278
