Product description

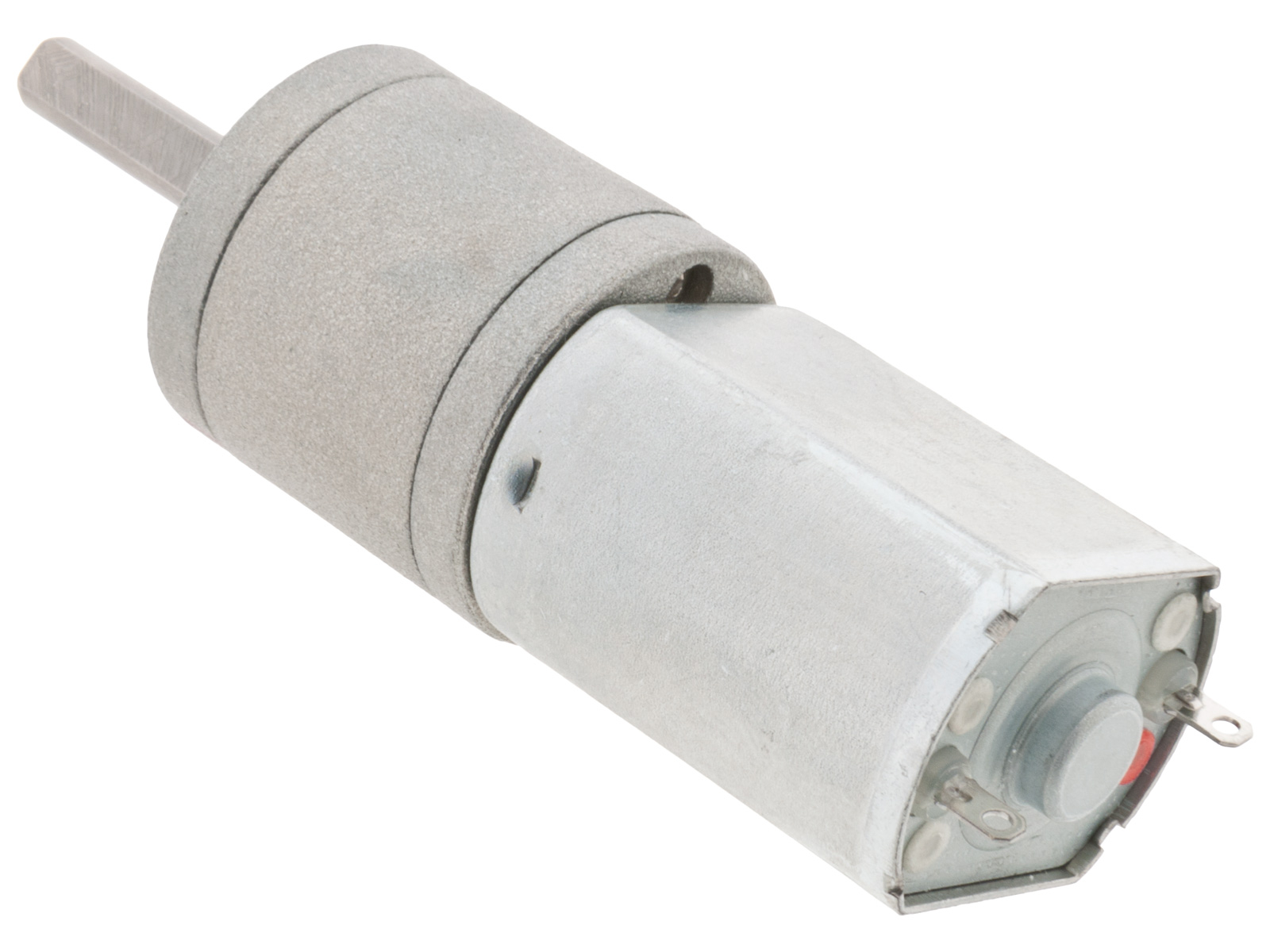

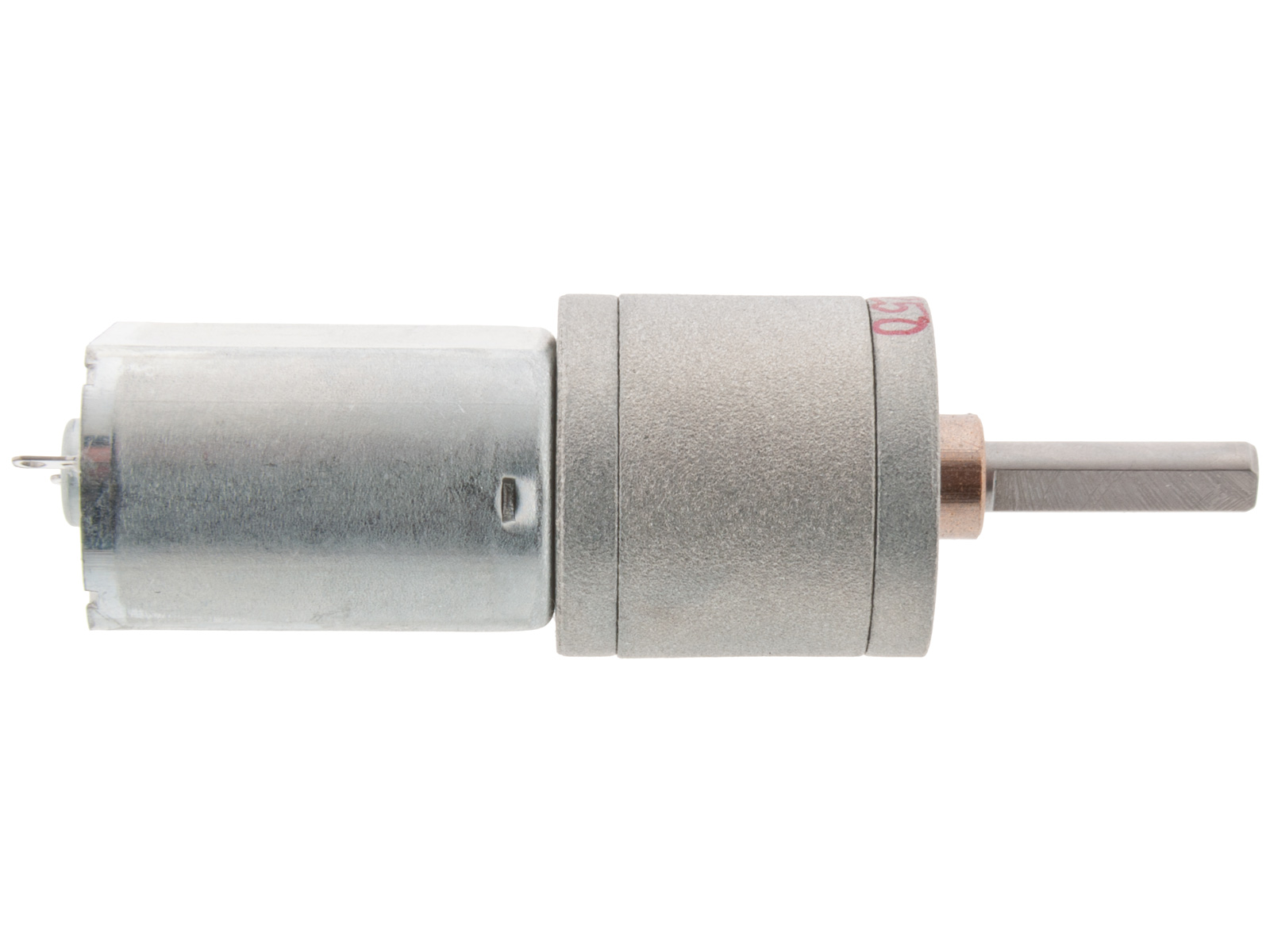

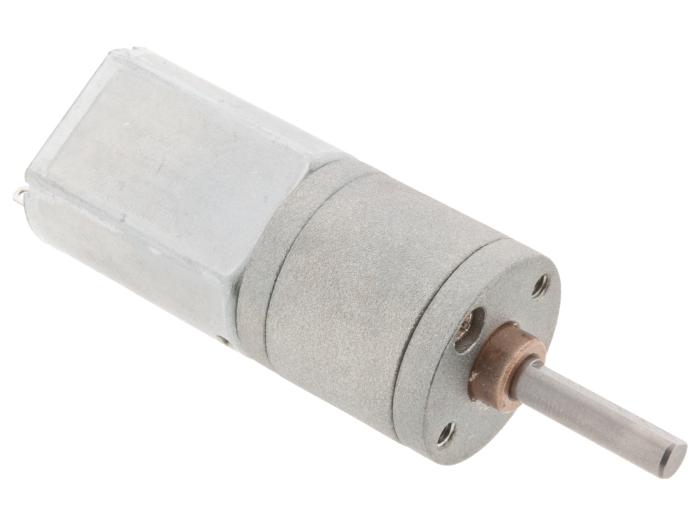

DC motor with planetary gearbox. The gearbox has a ratio of 390:1 with an unloaded shaft speed of 33rpm.
Please note! This motor must not be stalled or damage to the gearbox may occur!
* Operating voltage: 6VDC
* No load current: 0.1A
* No load speed: 60rpm
* Stall current: 2.9A
* Stall torque: 12kgf-cm (170oz-in)
* Gear Ratio: 250:1
* Shaft size: 4mm (0.1575")
* Weight: 46g (1.6oz)
