Product description

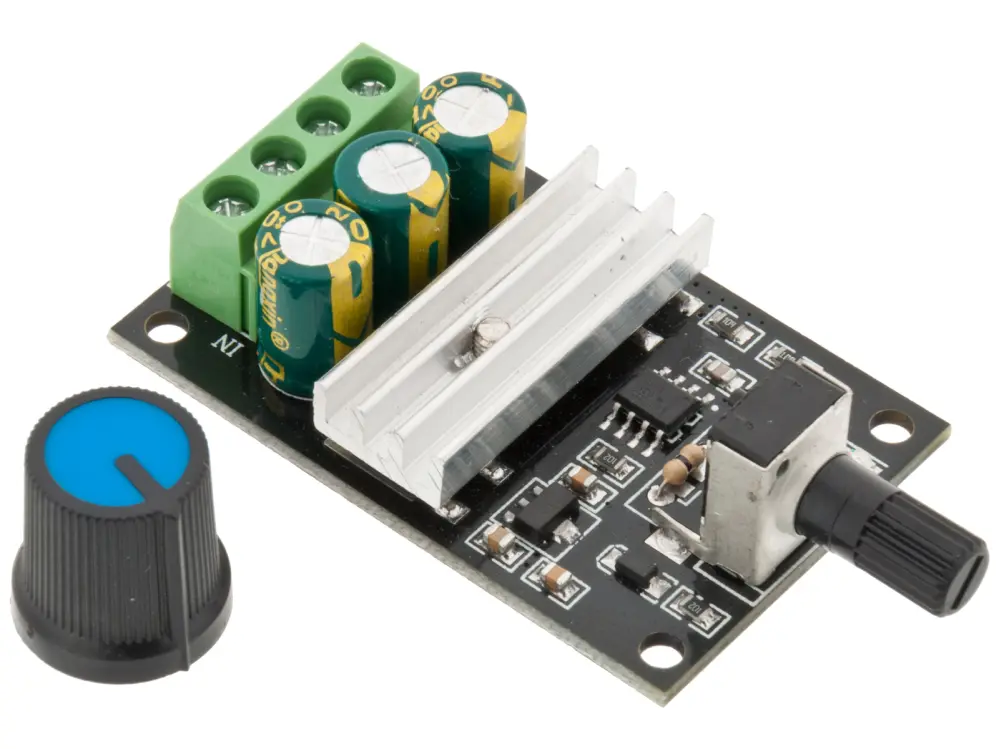

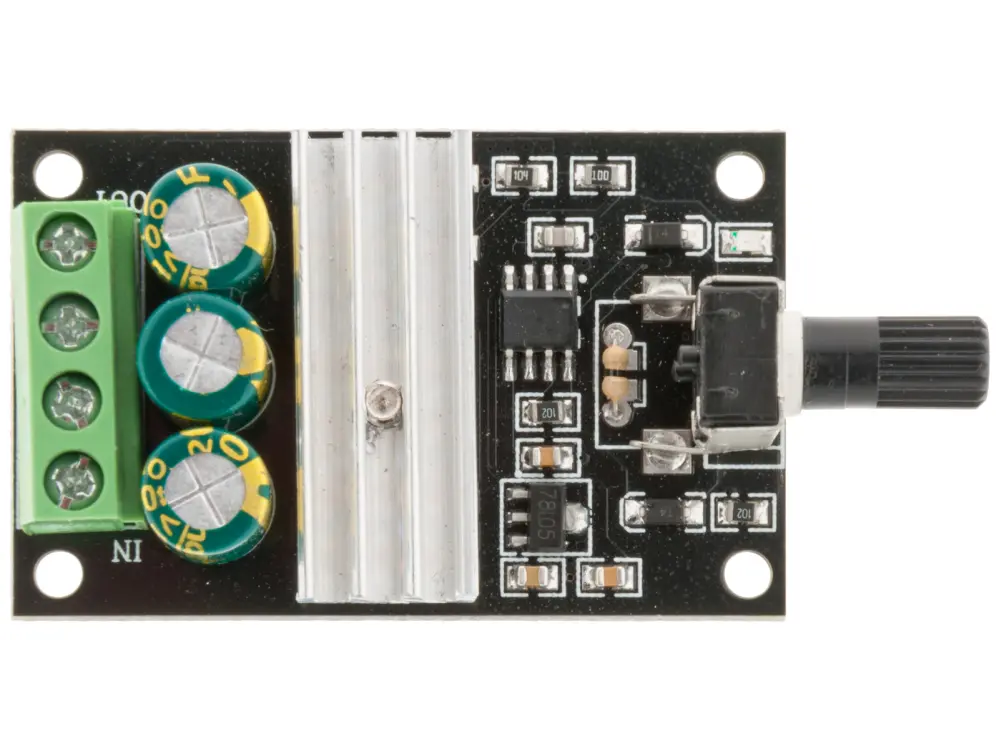

Small module for controlling the speed of one DC motor or LED lamp. The module has an onboard potentiometer that is used for controlling the pulse width (motor speed / light level) from 0% to 100%. Loads with a current draw up to 3A can be used with this controller. Powered with voltages from 6 to 24VDC.
* Dimensions: 50.2 x 32.3 x 15mm
* Mounting holes: c-c 44.5 x 26mm / ø3mm
* Max power output: 80W
* PWM frequency: 20kHz
* Dimensions: 50.2 x 32.3 x 15mm
* Mounting holes: c-c 44.5 x 26mm / ø3mm
* Max power output: 80W
* PWM frequency: 20kHz
