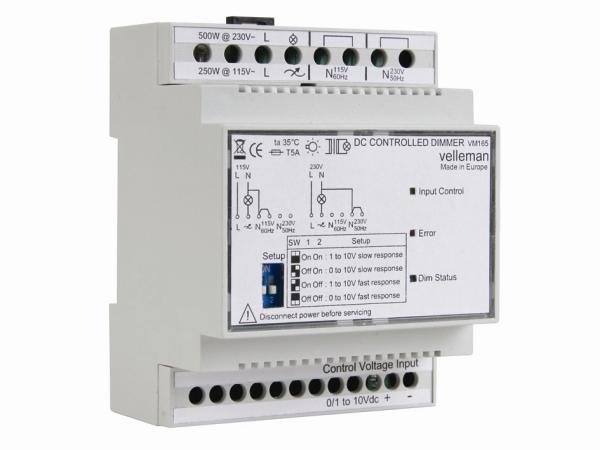

Product description
Features
brightness control using DC voltage
galvanic isolated input
suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional trans-former.
transformer protection in case of defective light sources.
LED status indicators
can be used with our computer interfaces: K8061 (kit) or VM140 (assembled)
Specifications
adjustment voltage of 0 to 10Vdc or 1 to 10Vdc (max 2mA)
suppression of radio & TV interference according to EN55015
power supply: 115 or 230VAC- 50/60Hz
max. load: 500W@ 230V or 250W@115V
max. phase shift with inductive load: 30°
standard DIN-rail housing: 4 modules
dimensions: 90 x 71 x 58mm / 3.5 x 2.8 x 2.3"
weight: 220g
brightness control using DC voltage
galvanic isolated input
suitable for incandescent lamps, mains voltage halogen lighting and low voltage halogen lighting in combination with a conventional trans-former.
transformer protection in case of defective light sources.
LED status indicators
can be used with our computer interfaces: K8061 (kit) or VM140 (assembled)
Specifications
adjustment voltage of 0 to 10Vdc or 1 to 10Vdc (max 2mA)
suppression of radio & TV interference according to EN55015
power supply: 115 or 230VAC- 50/60Hz
max. load: 500W@ 230V or 250W@115V
max. phase shift with inductive load: 30°
standard DIN-rail housing: 4 modules
dimensions: 90 x 71 x 58mm / 3.5 x 2.8 x 2.3"
weight: 220g
