Product description

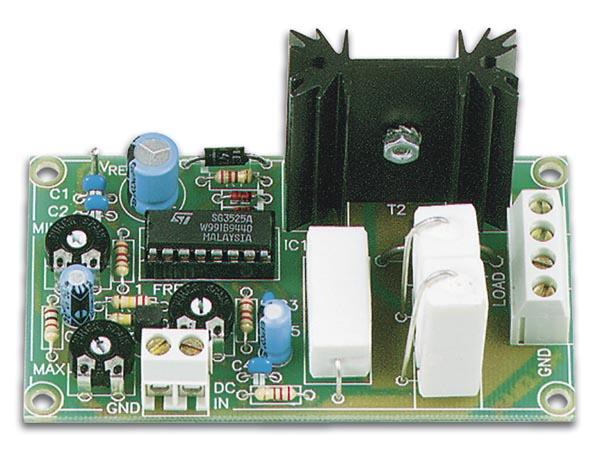

This control circuit is ideal for the accurate control of DC motors, lighting levels, small heaters as well as other applications. The circuit converts a DC voltage into a series of pulses, such that the pulse duration is directly proportional to the value of the DC voltage. The great advantage of such a circuit is that almost no power is lost in the control circuit. Protected against overload and short circuit.
Specifications
power supply: 8 to 35VDC
maximum output current: 6.5A
input voltage: between 2.5 and 35VDC
dimensions: 85 x 48 x 45mm / 3.4 x 1.9 x 1.8"
