Product description

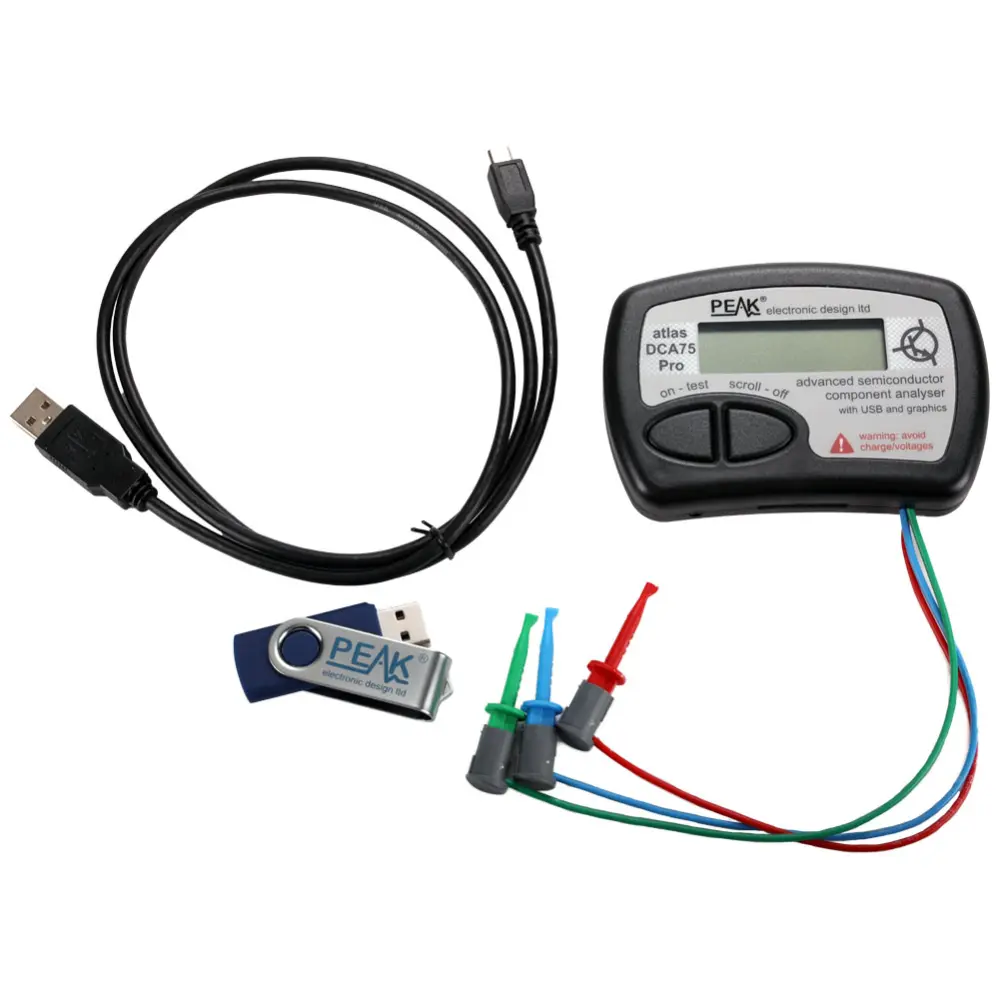

The Peak Atlas DCA Pro is an advanced component tester, suitable for most semiconductors. The unit is battery-powered and has a graphic display for showing measurements and the identification of components. With the USB-connection and the included software, it can make more detailed measurements, and plotting curves for longer time-based tests. Components are identified automatically, regardless of how they are connected and without the need to pre-determine a mode of measurement.
The following component types can be identified and measured:
* Bipolar transistors (BJT)
* Darlington transistors
* MOSFETs
* IGBTs
* JFETs
* Triacs and thyristors
* LEDs
* Bipolar LEDs
* Diodes and diode arrays
* Zener diodes
* Voltage regulators
Test functions:
* Automatic identification of component type * Automatic identification of pinout
* Transistor gain(hFE)
* Leakage current for transistors
* Identification of material (silicon or germanium) for transistors
* Gate voltage for FETs
* Voltage drop for diodes, LEDs and transistors
* Zener voltage
Specifications:
* Powersupply: 1x AAA battery (included)
* Size: 103 x 70 x 20mm
* Weight: 98g
* Working temperature: +10°C till +40°C
