Product description

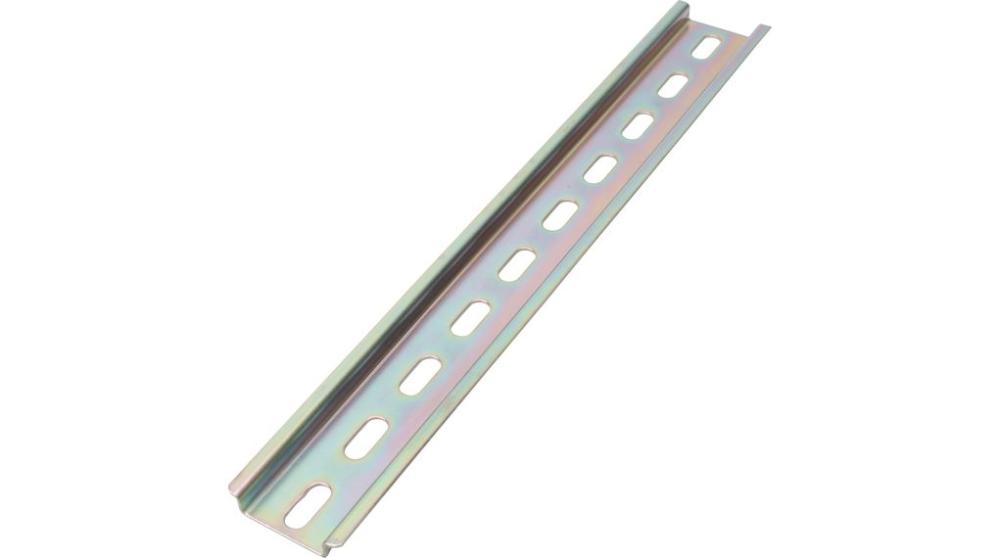

DIN rail for bottom mounting in enclosures or cabinets. The rail is designed according to DIN and SEN standards. DIN-type mounting rails are used to easily mount modular units with “snap” fastening. The width of modular units is indicated in the number of modules, one module corresponds to 18 mm (or more precisely 17.5 mm). Hole pattern - pierced.
1 module = 18mm wide
2 modules = 36 mm wide
Specifications:
- Type: Top Hat rail
- Standard: EN 50022
- Length: 500 mm
- Width: 35 mm
- Height: 7.5 mm
