Product description

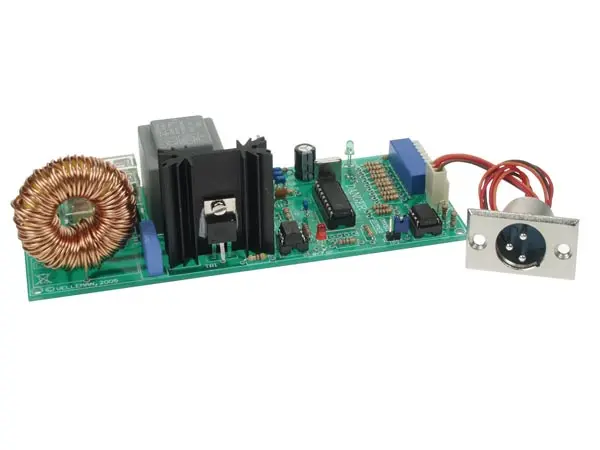

This kit allows you to control a lamp or group of lamps through a DMX signal. Use our "USB controlled DMX interface" K8062 (art.nr 12008062), VM116 (built version, art.nr 12009116) or any other control console compliant with the DMX-512 protocol as a controller.
Features
* suitable for resistive loads like incandescent lamps and mains voltage halogen lighting
* system addressability: 512 unique addresses, selectable with DIP switch
* status LED for power and error detection
* toroidal filtering for low noise (according to EN55015)
* stand alone "test" mode
* control source: DMX-512, 3 pin XLR socket included
* load capacity: max. 1000 W @ 230V (5A) or 500W @ 115V
* power Input: 115/230 VAC
* size: 150 x 60 x 45mm / 5.9 x 2.36 x 1.8"
