Product description

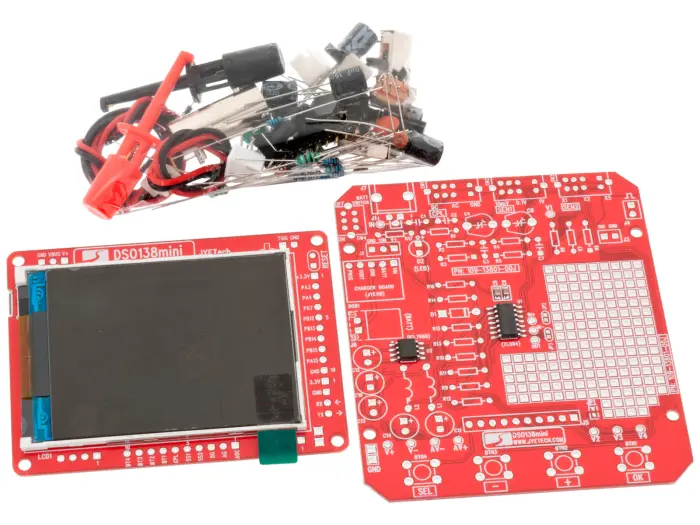

Small oscilloscope kit with a 2.4" TFT color display. The oscilloscope has one channel with 200kHz analog bandwitdh and can measure signals up to 50Vpp. The board is powered with a voltage range from 3.5V to 6VDC and has a USB port for power supply.
Please note: This is an advanced DIY kit! All surface mounted components are pre-soldered, but the user must install all through-hole components. A good soldering station, pliers and other tools are required for assembly!
* Channels: 1x
* Bandwidth: 0 - 200kHz
* Sensitivity: 10mV/div - 5V/div (±5%)
* Resolution: 12-bit
* Input impedance: 1Mohm
* Max. input voltage: 50Vpp
* Coupling: AC, DC, GND
* Sample rate: 1Msps
* Time base: 10us/div - 500s/div
* Record length: 1024pt
* Trigger modes: Auto, Normal, Single / rising, falling
* Display: 2.4" TFT 320x240px
* Supply voltage: 3.5 - 6.0VDC
* Supply current: 120mA (5V)
* Dimensions: 85 x 75 x 15mm
* Weight: 50g
Please note: This is an advanced DIY kit! All surface mounted components are pre-soldered, but the user must install all through-hole components. A good soldering station, pliers and other tools are required for assembly!
* Channels: 1x
* Bandwidth: 0 - 200kHz
* Sensitivity: 10mV/div - 5V/div (±5%)
* Resolution: 12-bit
* Input impedance: 1Mohm
* Max. input voltage: 50Vpp
* Coupling: AC, DC, GND
* Sample rate: 1Msps
* Time base: 10us/div - 500s/div
* Record length: 1024pt
* Trigger modes: Auto, Normal, Single / rising, falling
* Display: 2.4" TFT 320x240px
* Supply voltage: 3.5 - 6.0VDC
* Supply current: 120mA (5V)
* Dimensions: 85 x 75 x 15mm
* Weight: 50g
