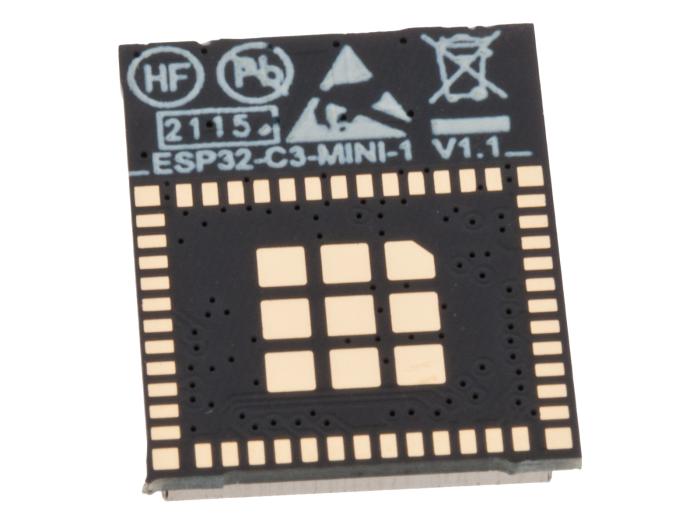

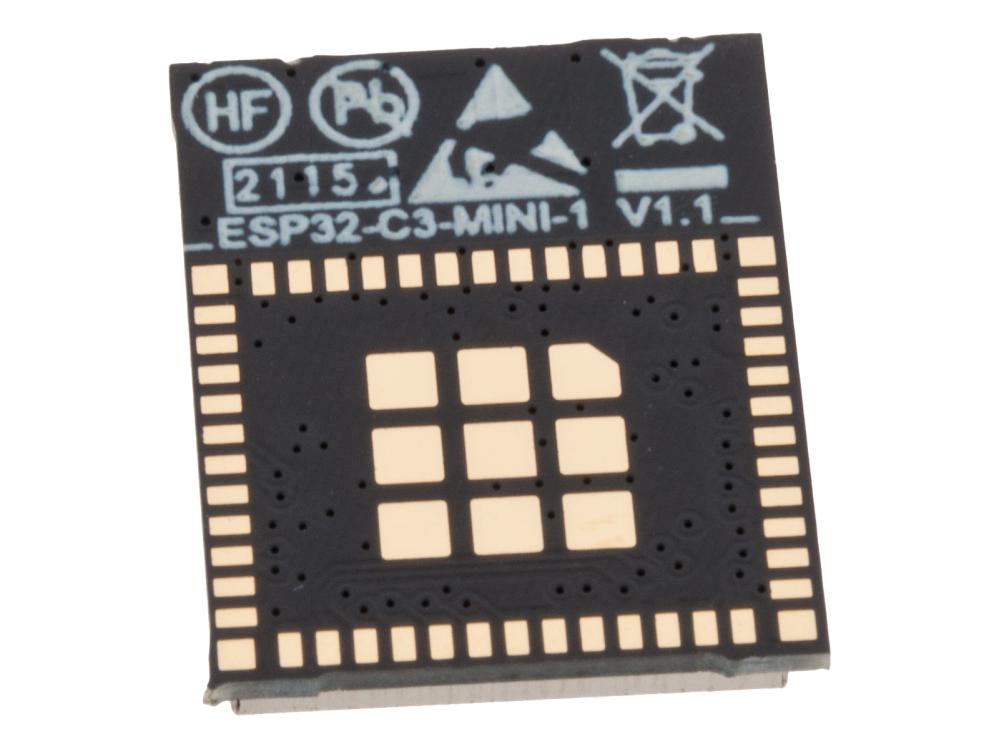

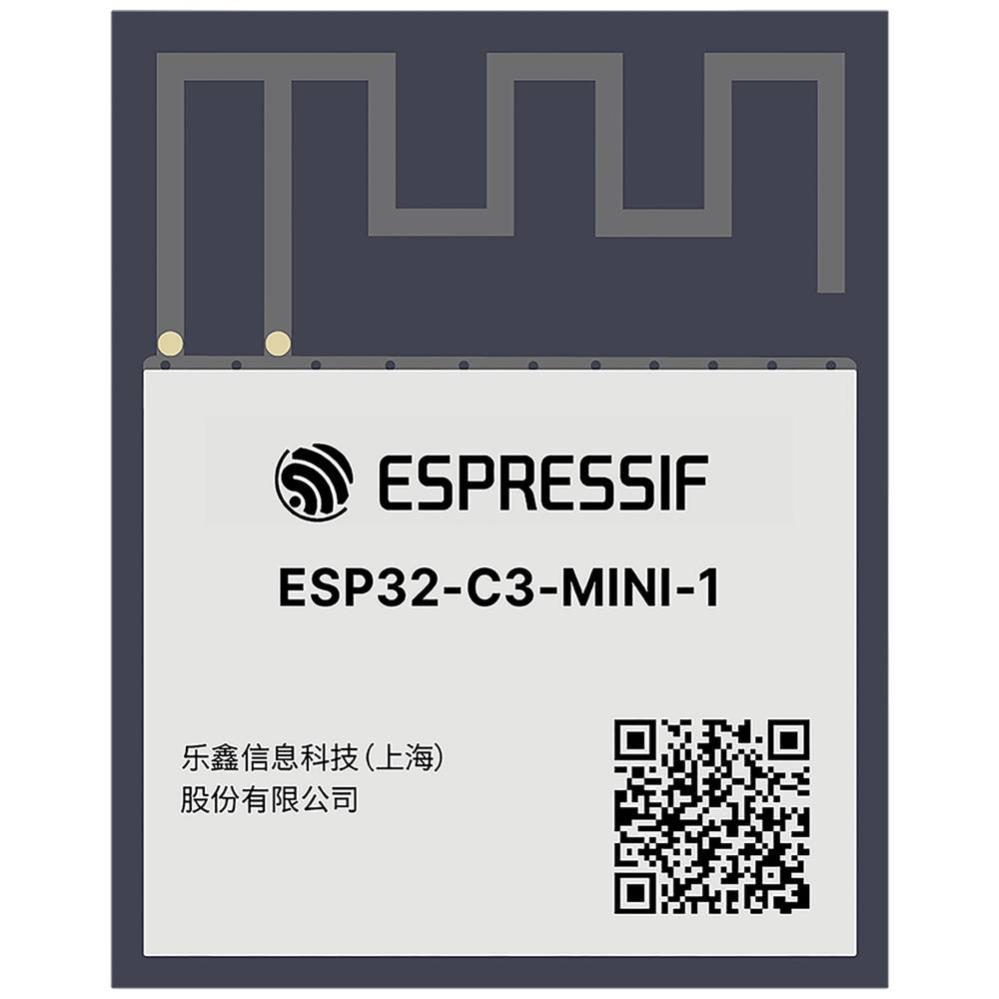

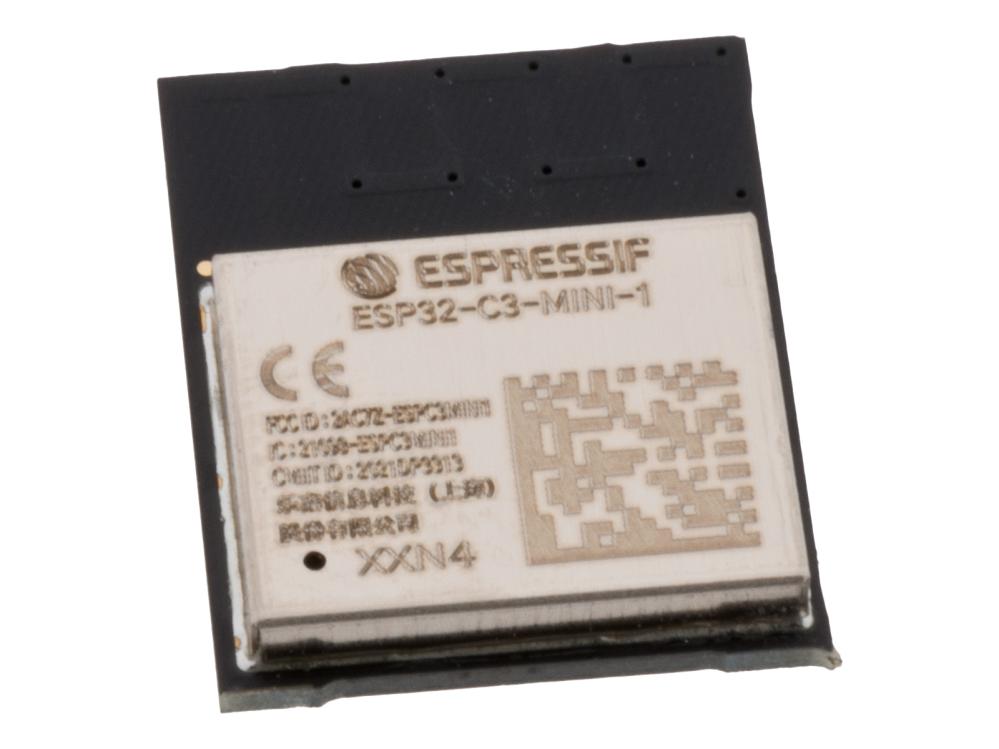

ESP32-C3-MINI-1 MCU-module 4MB

ESP32-C3-MINI-1-N4 module, PCB-antenna

• Core: 32-bit RISC-V Single Core
• Frequency: 160 MHz
• Program memory (SRAM): 400 kB
• Storage, flash: 4 MB
• GIPO: 15
• Bluetooth version: 5 (LE)
• WiFi4: (802.11 b/g/n)
• Supply voltage: 3.0-3.6V
• Logic level voltage: 3.3V
• Mounting: Board-to-board SMD soldering
• Antenna: On-board PCB antenna
• Dimensions: 13.2x13.6x2.2 mm
• Interfaces: SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers
