Product description

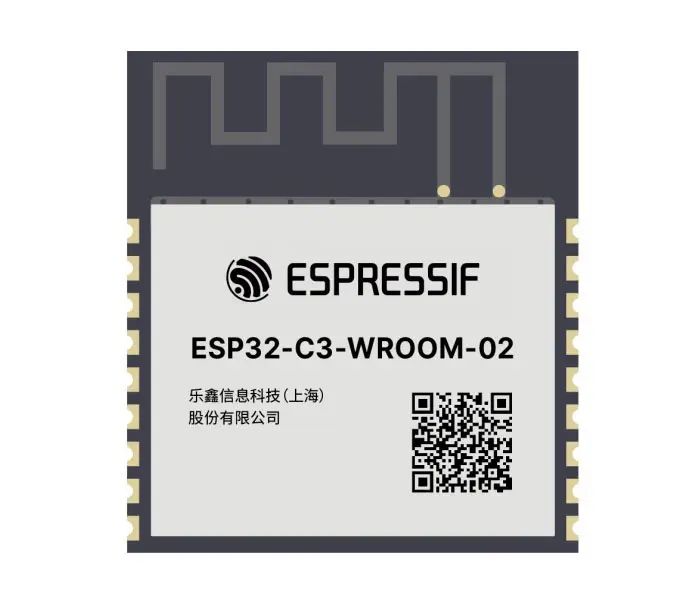

ESP32-C3-WROOM-02 MCU-module 4MB
- Core: 32-bit RISC-V Single Core
- Frequency: 160 MHz
- Program memory (SRAM): 400 kB
- Storage, flash: 4 MB
- GIPO: 15
- Bluetooth version: 5 (LE)
- WiFi4: (802.11 b/g/n)
- Supply voltage: 3.0-3.6V
- Logic level voltage: 3.3V
- Mounting: Board-to-board soldering
- Solder connection: Gold plated castellated holes on edges
- Antenna: On-board PCB antenna)
- Dimensions: 18x20x3.2 mm
- Interfaces: SPI, UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller (compatible with ISO 11898-1, i.e. CAN Specification 2.0), USB Serial/JTAG controller, temperature sensor, SAR ADC, general-purpose timers, watchdog timers
