Product description

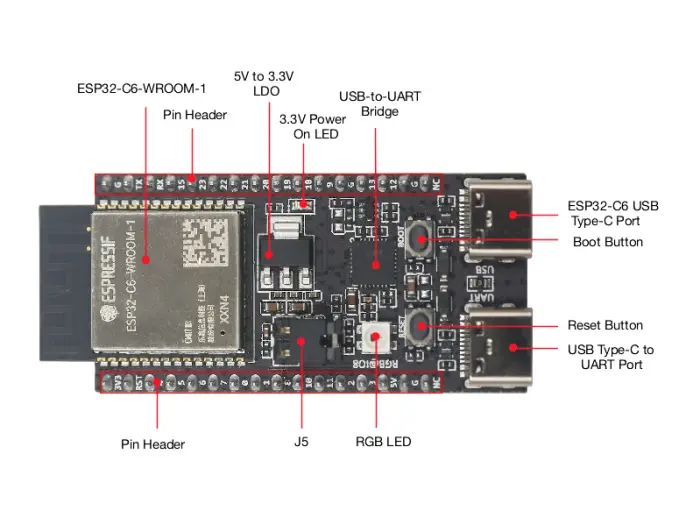

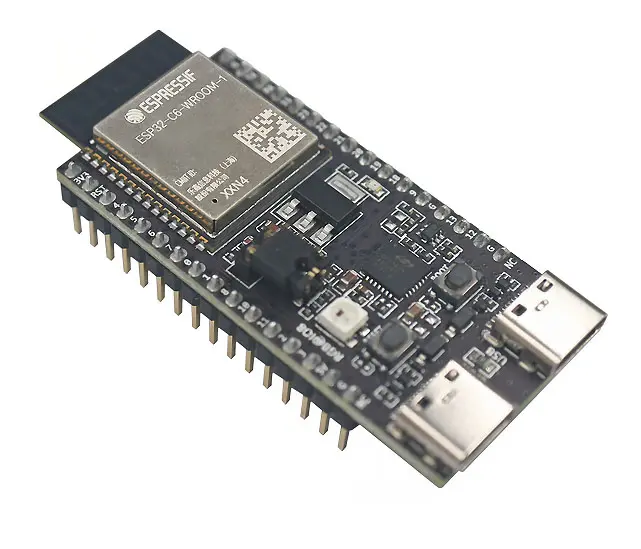

ESP32-C6-DevKitC-1 is ideal for developing smart home devices, industrial automation systems, wearable electronics, and other IoT applications requiring reliable wireless communication and low power consumption. The development board is based on the ESP32-C6-WROOM-1 module, a versatile unit equipped with 8 MB of flash memory. The board supports communication standards such as Wi-Fi, Bluetooth LE, Zigbee, and Thread. The I/O pins are routed to pin headers for easy connection. Developers can use a breadboard to conveniently connect sensors and peripherals via jumper wires.
Key Features:
- Wireless Communication: Supports Wi-Fi 6 (802.11ax), Bluetooth 5.3 LE, Zigbee 3.0, and Thread 1.3, enabling broad compatibility with modern IoT standards.
- Processor Architecture: Equipped with a high-performance 32-bit RISC-V CPU up to 160 MHz and a low-power 32-bit RISC-V CPU up to 20 MHz, offering flexibility between performance and energy efficiency.
- Memory: Integrated with 512 KB of SRAM and 320 KB of ROM, along with an external 8 MB SPI flash for program and data storage.
- Interfaces: Offers a wide range of digital and analog interfaces including GPIO, UART, SPI, I²C, I²S, PWM, ADC, and USB, facilitating integration with various sensors and devices.
- Power Supply: Can be powered via USB-C or through 5V/3.3V pin headers, providing flexibility for different application scenarios.
- Development Support: Compatible with ESP-IDF and Arduino IDE, enabling efficient development and prototyping.
Specifications:
- Core: 32-bit RISC-V Single Core
- Clock Frequency: 160 MHz
- SRAM: 512 KB
- Flash Storage: 8 MB
- ROM: 320 KB
- GPIO: 23 pins
- Bluetooth Version: 5.3 (LE)
- Wi-Fi 6: 802.11 (b/g/n/ax), 150 Mbps
- Wi-Fi 4: 802.11 (b/g/n), 150 Mbps
- Zigbee and Thread: Supported via IEEE 802.15.4
- Operating Voltage: 3.0-3.6 V
- Logic Level Voltage: 3.3 V
- 2.4 GHz Antenna: Integrated PCB antenna
Interfaces:
GPIO, SPI, parallel IO interface, UART, I²C, I²S, RMT (TX/RX), pulse counter, LED PWM, USB Serial/JTAG controller, MCPWM, SDIO 2.0 slave controller, GDMA, TWAI controller, on-chip debugging via JTAG, event/task matrix, ADC, temperature sensor, system timer, general-purpose timers, and watchdog timers.
