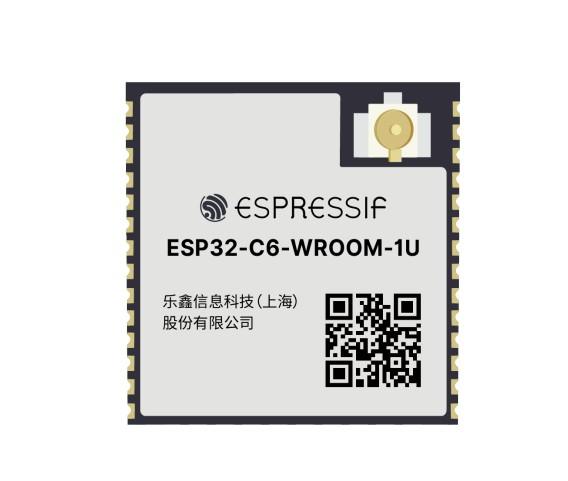

ESP32-C6-WROOM-1 MCU-module 4MB u.FL

Art no: 41023859 - Espressif

57 SEK

Including 25% VAT

Mängdrabatt:
1pcs = 57:- 5pcs = 256:50 10pcs = 484:50

Out of stock

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

OpenClose

ESP32-C6-WROOM-1 MCU-module 4MB u.FL

Core: 32-bit RISC-V Single Core
Frequency: 160 MHz
Program memory (SRAM): 512 kB
Storage, flash: 4 MB
ROM: 320 KB
GIPO: 23
Bluetooth version: 5.3 (LE)
WiFI6: 802.11ax (b/g/n/ax) 150 Mbps
Supply voltage: 3.0-3.6V
Logic level voltage: 3.3V
Mounting: Board-to-board SMD soldering
Solder connection: Gold plated castellated holes on edges
Antenna: External (not included)
Antenna connection: u.FL (I-PEX)
Dimensions: 18.0x19.2x3.2 mm
Interfaces: GPIO, SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX), pulse counter, LED PWM, USB Serial/JTAG controller, MCPWM, SDIO2.0 slave controller, GDMA, TWAI® controller, on-chip debug functionality via JTAG, event task matrix, ADC, temperature sensor, system timer, general-purpose timers, and watchdog timers
