Product description

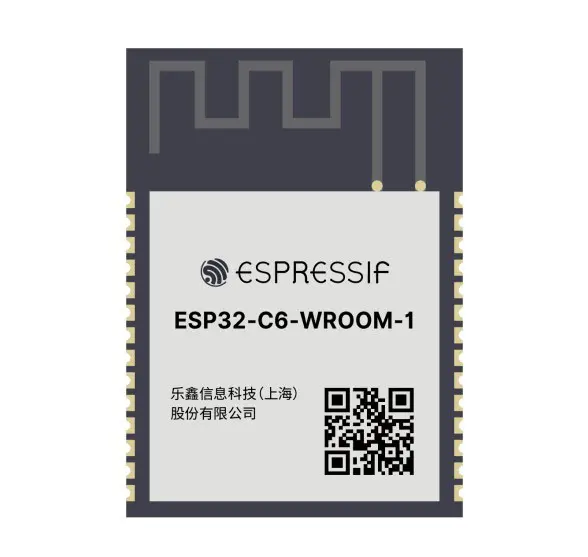

ESP32-C6-WROOM-1 MCU-module 4MB
- Core: 32-bit RISC-V Single Core
- Frequency: 160 MHz
- Program memory (SRAM): 512 kB
- Storage, flash: 4 MB
- ROM: 320 KB
- GIPO: 23
- Bluetooth version: 5.3 (LE)
- WiFI6: 802.11ax (b/g/n/ax) 150 Mbps
- Supply voltage: 3.0-3.6V
- Logic level voltage: 3.3V
- Mounting: Board-to-board SMD soldering
- Solder connection: Gold plated castellated holes on edges
- Antenna: On-board PCB antenna
- Dimensions: 18x25.5x3.2 mm
- Interfaces: GPIO, SPI, parallel IO interface, UART, I2C, I2S, RMT (TX/RX), pulse counter, LED PWM, USB Serial/JTAG controller, MCPWM, SDIO2.0 slave controller, GDMA, TWAI® controller, on-chip debug functionality via JTAG, event task matrix, ADC, temperature sensor, system timer, general-purpose timers, and watchdog timers
