Product description

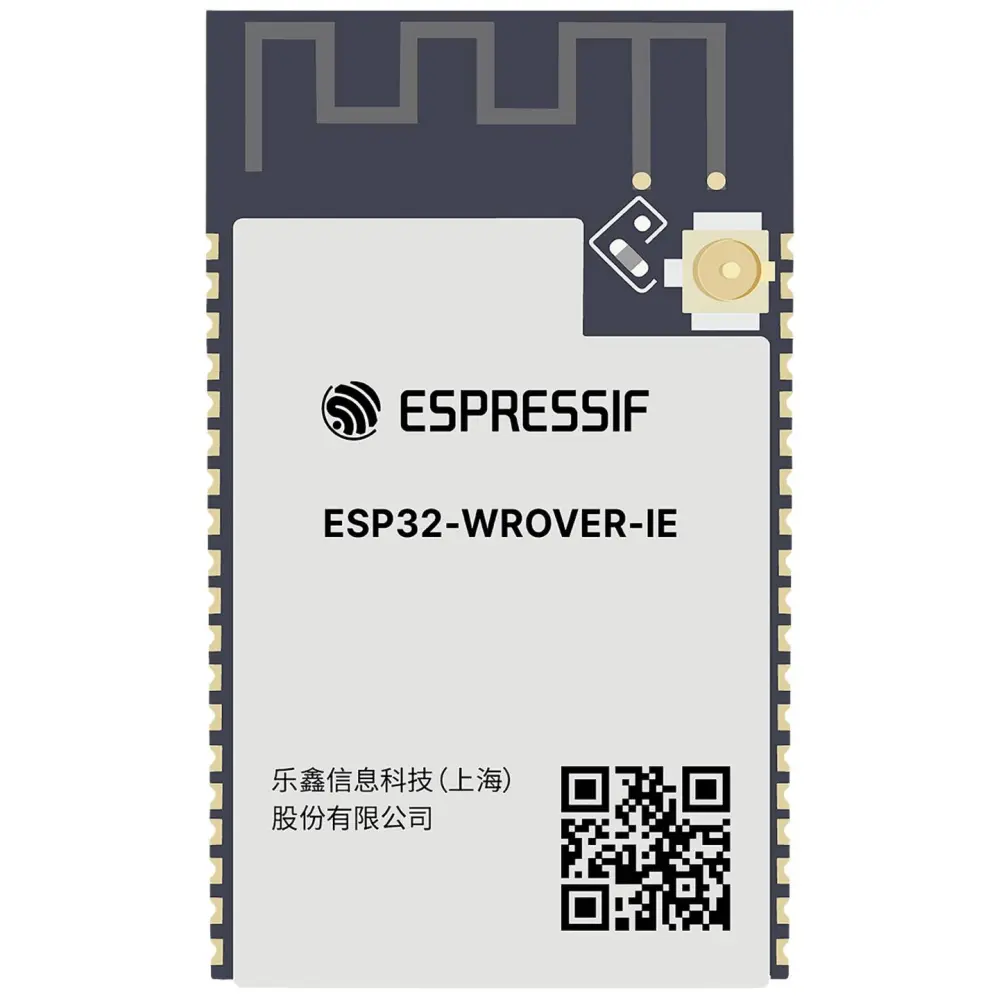

ESP32-WROVER-IE MCU-module 16MB PSRAM 8MB u.FL
- Kärna: Xtensa 32-bit LX6 dual-core
- Frequency: 240 MHz
- Program memory (SRAM): 520 kB
- Storage, flash: 16 MB
- PSRAM: 8 MB
- ROM: 448 KB
- GIPO: 26
- Bluetooth version: 4.2 (LE)
- WiFI4: 802.11ax (b/g/n) 150 Mbps
- Supply voltage: 3.0-3.6V
- Logic level voltage: 3.3V
- Mounting: Board-to-board SMD soldering
- Solder connection: Gold plated castellated holes on edges
- Antenna: External (not included)
- Antenna connection: u.FL (I-PEX)
- Dimensions: 18.0x19.2x3.2 mm
- Interfaces: UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, SD card, GPIO, capacitive touch sensor, ADC, DAC, TWAI® (compatible with ISO 11898-1, i.e. CAN Specification 2.0)
