Product description

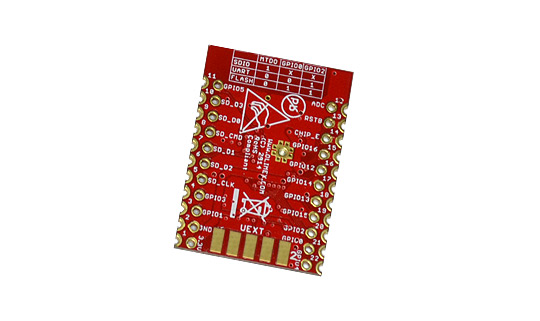

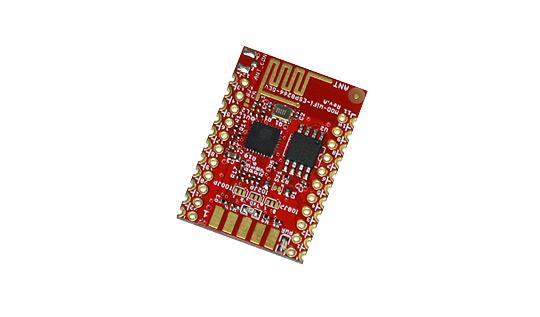

MOD-WIFI-ESP8266-DEV is development board with the famous ESP8266EX WIFI IC. Our module comes with 2MB (16Mb) of SPI flash memory, and all GPIO resources are available for breadboarding. The I2C and SPI interfaces are also available. It is easy to implement the module in your existing designs - you might even solder it directly on other PCBs since it has no components at the bottom side. The module be used for home automation, smart plugs and lights, mesh networks, industrial wireless control, baby monitors, IP cameras, sensor networks, wearable electronics, etc.
FEATURES:
- Main chip: EPS8266EX
- 2MB (16Mb) SPI flash memory
- Power LED
- User-programmable LED
- Button for UART mode (since hardware revision B)
- SMT jumpers for different boot modes (FLASH, UART, SDO)
- PCB antenna
- UEXT pads for easier access to UART interface
- Pads for a U.FL antenna connector (if you want to use external antenna)
- 22 pin holes @ 0.1" step for easier access to processor pins
- OSHW desgn
- Dimensions: 33x23 mm
