Product description
Specifications

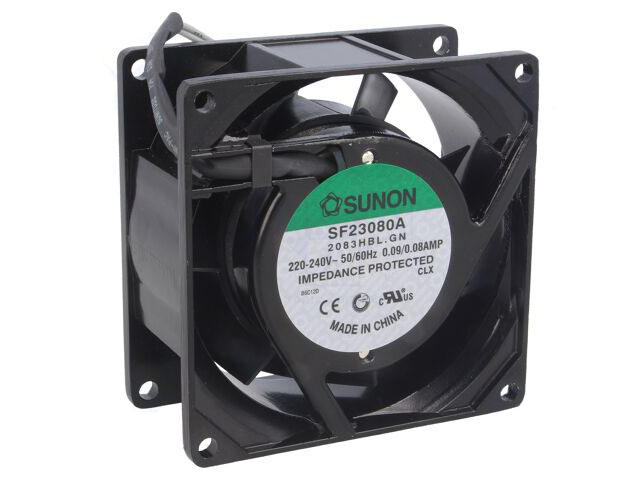

type: SF23080A2083HBL
size (A x A x B): 80 x 80 x 38mm
bearing: ball
voltage: 220-240Vac (50-60Hz)
airflow: 39-50m³/hr
current: 0.07-0.07A
speed: 2300-2750rpm
noise (at 1m): 31-35dBA
connection: leads
materials: blade: thermoplastic PBT (UL94-VO)
frame: die-cast ALU
dielectric strength: 1500Vac for 2 seconds
insulation resistance: 500Vdc, 100Mohm
tolerance: speed: ± 5%
airflow: ± 10%
airflow: UL-recognised E77551, CSA-certified LR53000, VDE-approval 1350
operating temperature: sleeve bearing: -10°C to +70°C
ball bearing: -20°C to +80°C
