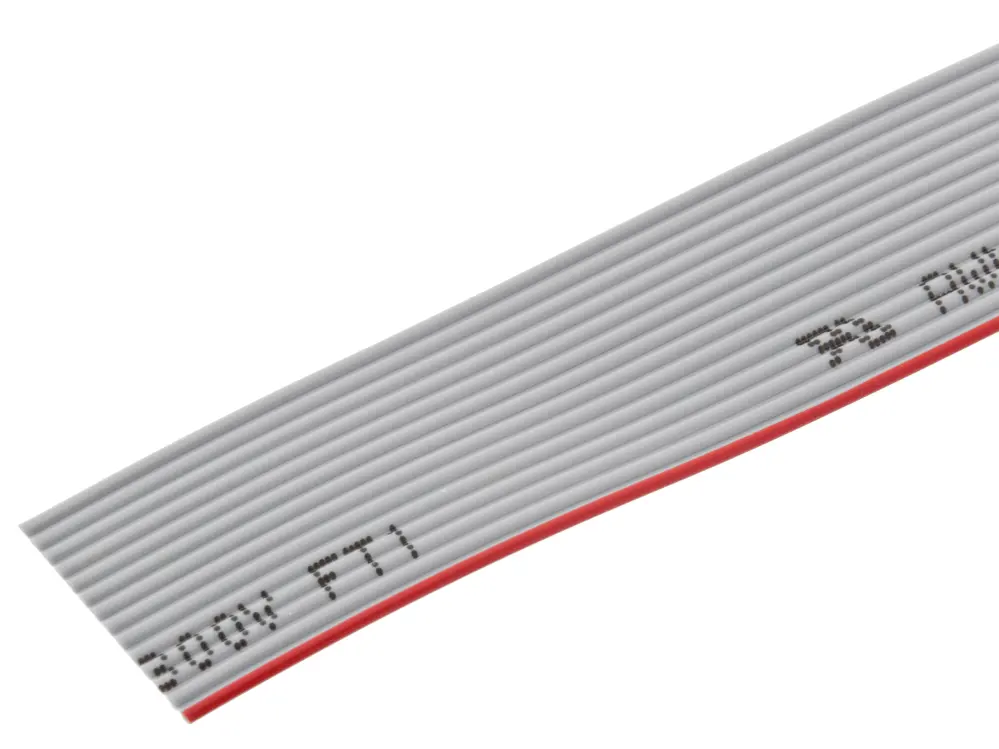

Ribbon cable gray 14 wires 1.27 mm /m
Art no: 31670212
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
14-wire, grey ribbon cable.
Conductors: 14
Pitch: 1.27mm (1/2")
Color: grey
Length: 30.48m (100ft)
Conductor: stranded
Size: AWG30
Number of strands per conductor: 7 x 0.127mm
Space between the strands of the various conductors: min. 1.27mm
Cross section: 156 mil²
Insulation: PVC
Average insulation thickness: 9 mil
Min. insulation thickness: 7mil
Spark test: 2500V
insulation resistance: min. 1Gohm/m
Inductance: 1.45mH
Impedance: 100ohm
Propagation: 4.2ns/m
Conductors: 14
Pitch: 1.27mm (1/2")
Color: grey
Length: 30.48m (100ft)
Conductor: stranded
Size: AWG30
Number of strands per conductor: 7 x 0.127mm
Space between the strands of the various conductors: min. 1.27mm
Cross section: 156 mil²
Insulation: PVC
Average insulation thickness: 9 mil
Min. insulation thickness: 7mil
Spark test: 2500V
insulation resistance: min. 1Gohm/m
Inductance: 1.45mH
Impedance: 100ohm
Propagation: 4.2ns/m
Technical data
Attribute | Value |
---|---|
Awg |
30
|
Color |
Grå
|
Conductor-area |
0.05
|
Conductors |
14
|
Outer-diameter |
0.85
|
Rohs |
RoHS-kompatibel
|
Sheath-material |
PVC
|
Shielded |
Nej
|
Strands |
Flertrådig
|
SKU:
31670212EAN / GTIN:
653415246534
