Product description

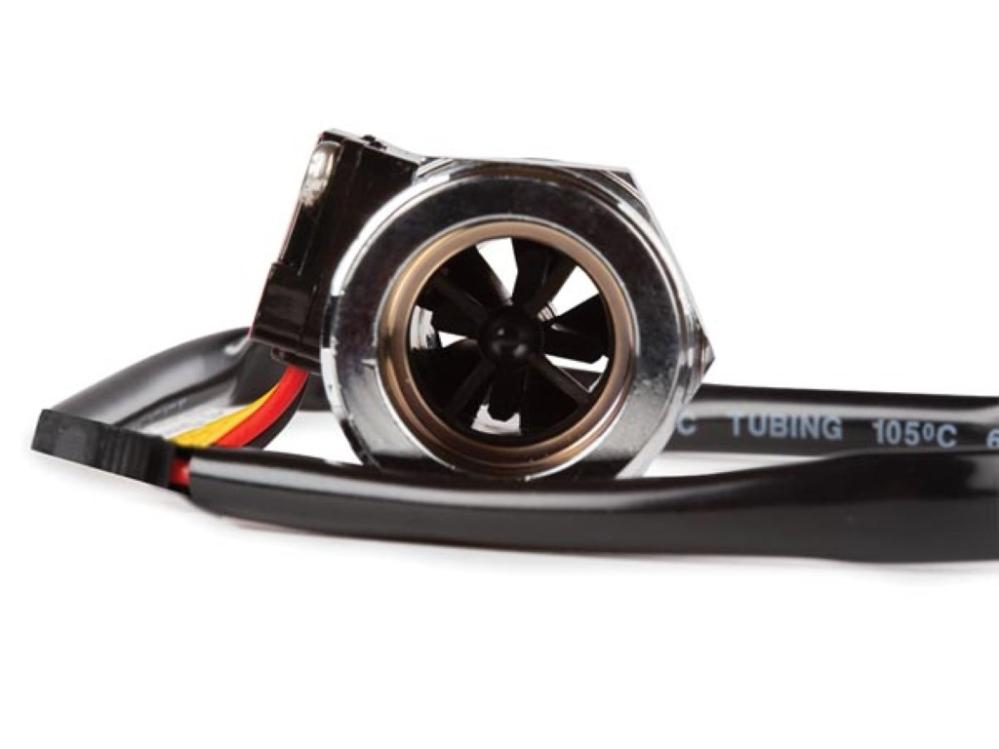

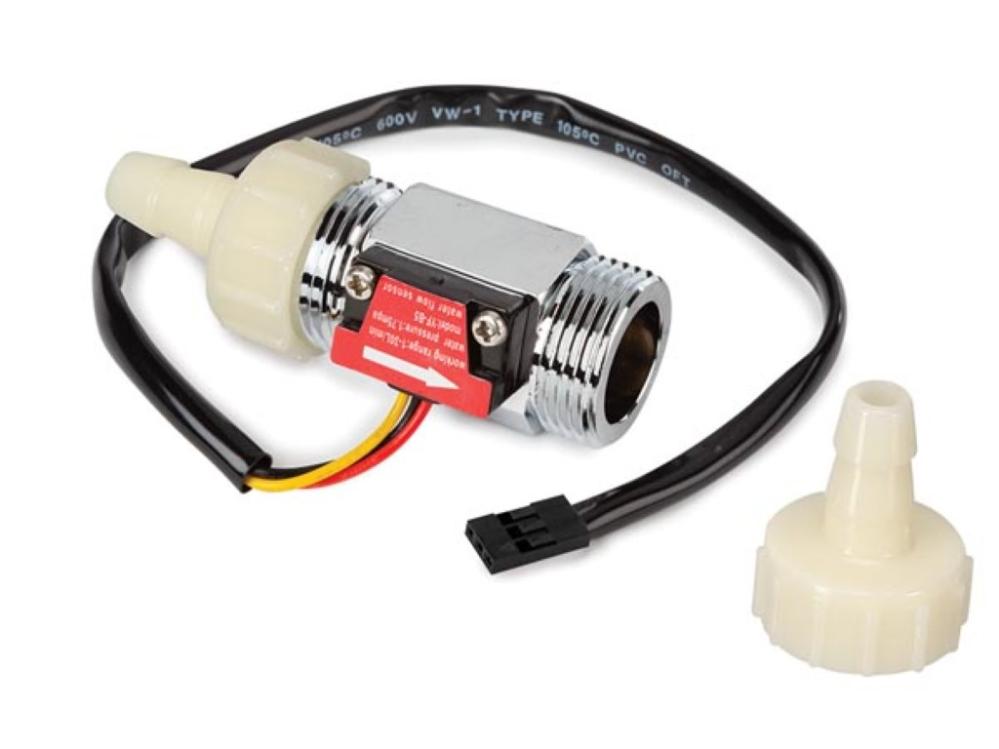

Water flow sensor. Pipe connection: 3/4 inch. The sensor outputs pulses whose frequency is proportional to the flow. Connection: 3x 0.64 mm pin with 2.54 mm pitch. One pulse corresponds to approximately 3.33 ml of liquid. Do not expose the flow sensor to sub-zero temperatures (if it is water filled). Supplied with couplings for hose connection.
Specifications:
- Supply voltage: 4.7 - 15 VDC
- Rated current: 10 mA @ 5V
- Measurable flow: 1 - 30 litres per minute
- Max fluid temperature: 80 °C
- Max fluid pressure: 10 bar
- Thread: External 3/4 inch
- Hose connections: 8 mm
- Dimensions: 155x78x38 mm
- Weight: 88 g
