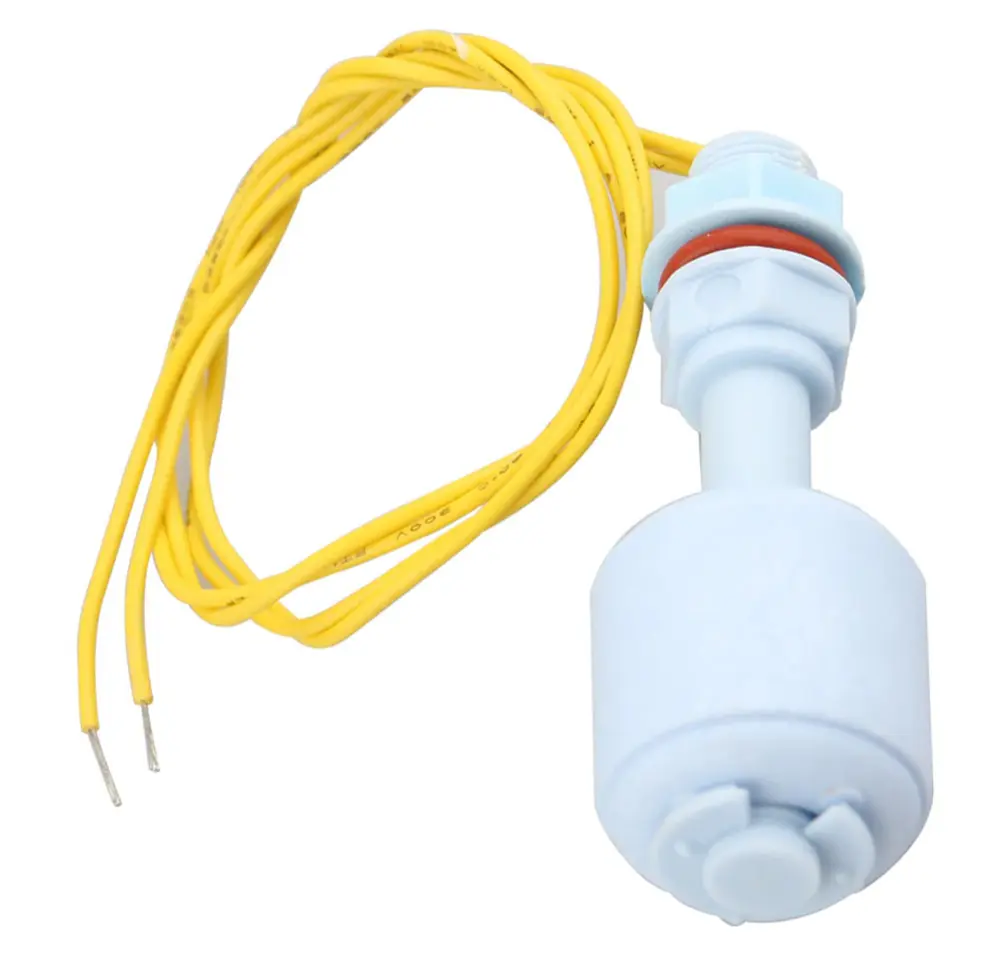

Magnetic float switch for liquid level control 0.5A

Water Level Detector – Vertical Float Switch for Liquid Level Control. A float switch is used to detect the liquid level in a container. The switch can control a pump, indicator, alarm, microcontroller, or other equipment. The switching capacity of the magnetic contact is 0.5 A. To switch higher currents, a relay or contactor must be used to offload the reed switch.

Features:

• Easy to install as a liquid level controller
• No complex electronics – just a magnet and a highly reliable reed switch.
• Can be mounted vertically, at the top or bottom of the tank, depending on whether rising or falling levels should be detected
• Commonly used in electronics, chemical processing, water treatment, drainage, and other liquid level control applications

Specifications:

• Mounting: M10 × 14 mm
• Length below liquid surface: 52 mm
• Float diameter: Ø 24 mm
• Mounting hole: Ø 10.5 mm
• Contact type: NO – normally opend (float in lower position)
• Cable length: 40 cm
• Voltage (max): 100 VDC
• Current (max): 0.5 A
• Operating temperature: –20 to +80 °C
