Product description

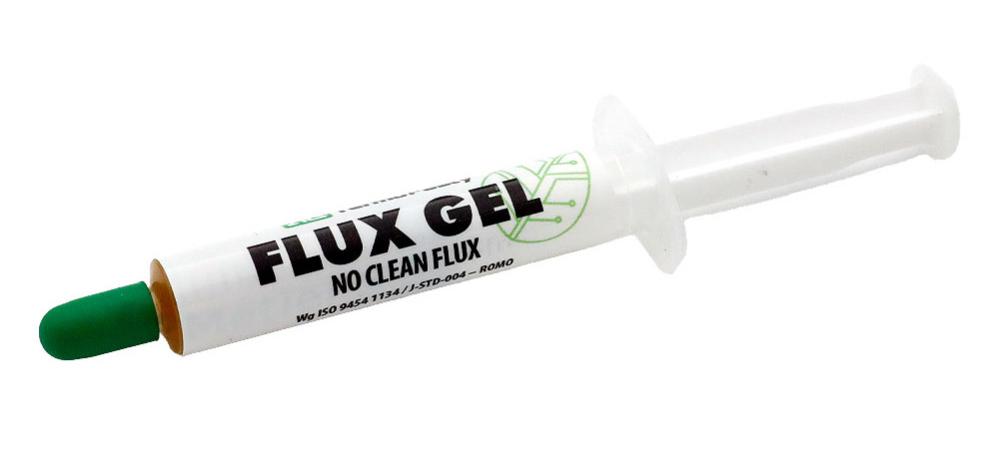

TermoPasty Flux Gel - Flux in a 1.4 ml Syringe. Flux Gel is a flux in gel form, enabling precise application without dripping. The flux provides excellent solder wetting and is particularly suited for lead-free precision soldering, such as when working with SMD components.
Flux Gel is a high-concentration flux gel based on colophony and classified as RMA (Rosin Mildly Activated). This means it has low activity but is sufficient to ensure good solder wetting. The risk of corrosion is low. The product is used in PCB manufacturing where a balance between soldering efficiency and cleanliness is desired.
Performance in Practical Use:
During assembly and repair of surface-mounted components, Flux Gel demonstrates excellent spread and wetting. Its viscous gel form allows for precise placement even in tight areas without flowing, which is especially advantageous when working with densely packed solder joints.
Tests on mixed metal surfaces (Cu and SnPb) showed consistent solder joints with good electrical and mechanical contact. No corrosion was observed after 72 hours of aging at 85% relative humidity and 60 °C.
The product complies with ISO 9454:1134 and IPC J-STD-004 (ROM1), ensuring compatibility with industrial standards and safe use in professional settings.
Flux residues are non-corrosive after soldering, meaning cleaning is typically not required (No-Clean type). If necessary, residues can be easily removed with Isopropyl alcohol.
Specifications:
- Content: 1.4 ml
- Color: Amber
- Compatibility: Ag, Cu, Au, Zn, Cd, and SnPb
- Standards: ISO 9454:1134, J-STD-004 ROM1
- Storage temperature: 5-25 °C
- Density: 1.0 g/cm³ (at 80 °C)
- Melting range: 130-150 °C
Usage Advice:
-
Seal the syringe carefully after use to prevent drying.
-
Store in a dark place at 5 - 25 °C.
Warning:
Contains: Colophony and succinic anhydride
Hazard:
- H315 - Causes skin irritation
- H317 - May cause an allergic skin reaction
- H318 - Causes serious eye damage
- H334 - May cause allergy or asthma symptoms or breathing difficulties if inhaled
Precautionary statement:
- P101 - Keep out of reach of children
- P261 - Avoid breathing vapours
- P280 - Wear protective gloves/protective clothing/eye protection
- P304+P340 - IF INHALED: Remove person to fresh air and keep comfortable for breathing
- P333+P313 - If skin irritation occurs: Get medical advice/attention
- P342+P311 - If experiencing respiratory symptoms: Call a POISON CENTER/doctor
