Product description

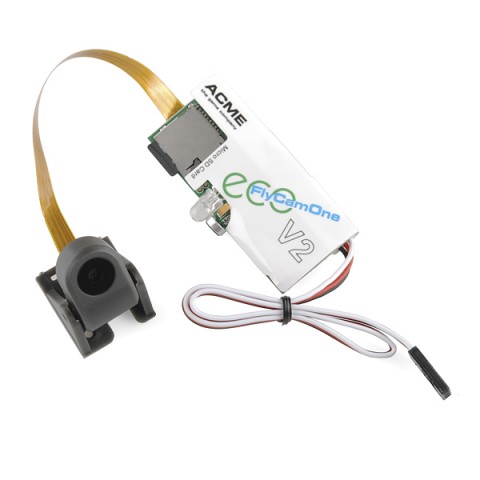

The FlyCamOne eco is a self-contained module that records 720x480 color video at 30 fps with sound! Not only that, but it can snap pictures as well. Simply plug in a Li-Poly battery, insert a Micro SD card and select the mode using the on-board push-button. If your application is remote controlled, the module can also be powered and controlled from an open channel on your RC receiver.

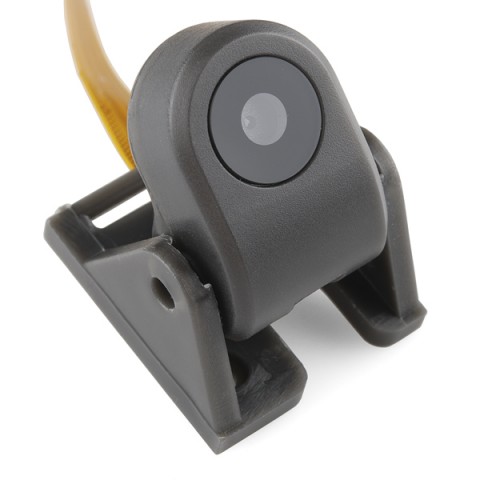

The camera itself is mounted on a swivel head and attached by a ribbon cable, allowing it to be mounted external to your project while keeping the control board out of harm's way. There's even a mode to flip the video 180 degrees so you can mount the camera up-side down.

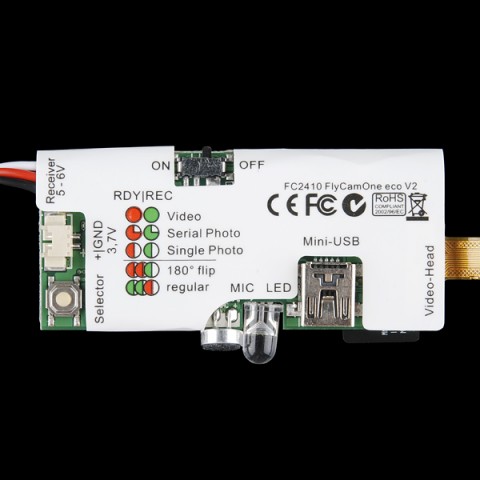

A built-in Bi-Color LED indicates mode of operation; when the light is green, you're on standby, when it's red, you're recording.
Note: A firmware update is required to get full 720 x 480 resolution from the unit.
Specifications:
Weight: 15g
Control Board: 30x57x7mm
Camera Head: 22x24x28mm
Ribbon Cable: 100mm
RC Cable: 225mm
Memory card: Supports up to 8GB Micro SD card
Resolution: 720 x 480px @ 30 fps
Voltage: 3.7V Li-Poly or 4.5 - 6V RC Receiver
