Product description

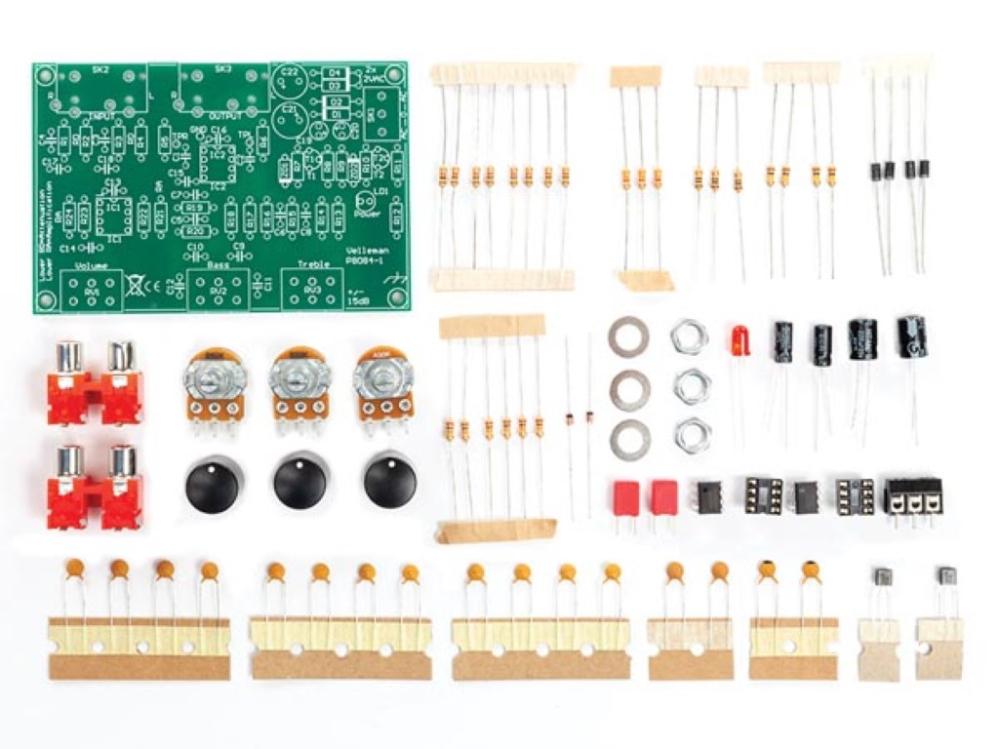

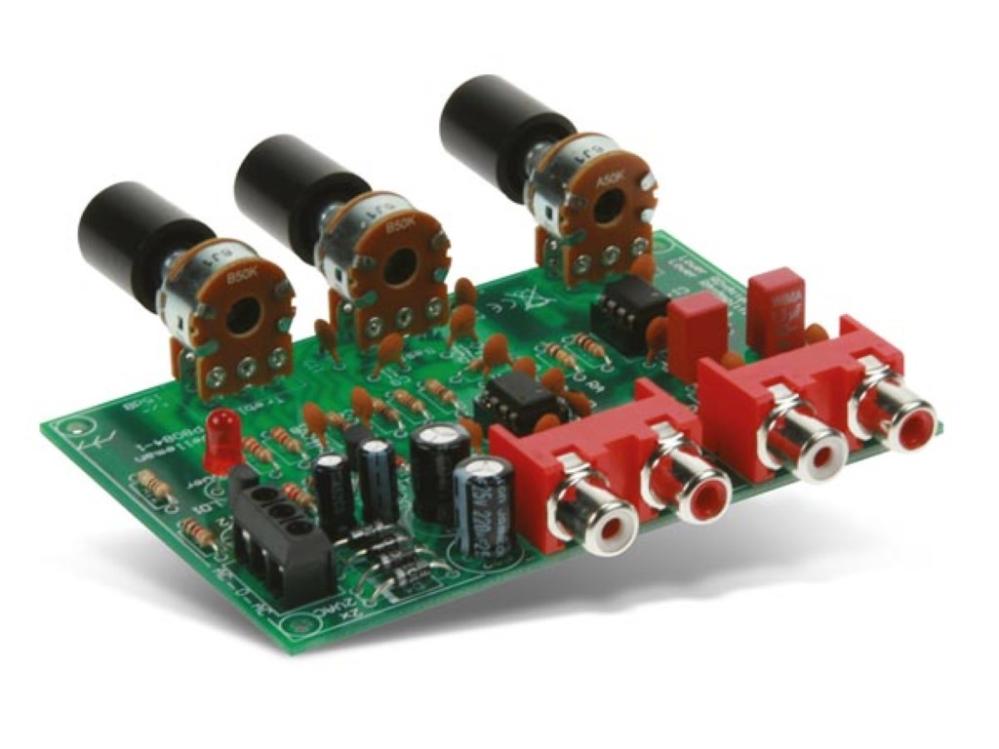

When using one of our amplifiers (big or small), you always need a volume control and preferably also a tone control. This kit comes complete with all input / output connections and potentiometers. Furthermore it is possible to amplify or attenuate the input signal.
Features:
- Stereo volume control
- Stereo Baxandall bass and treble control
- Bass and treble potentiometers with centre click
- Customizable attenuation or amplification
- Complete with knobs
Specifications:
- Supply voltage: 2 x 12VAC / 100mA
- Frequency response: 3Hz - 500kHz (-3dB)
- Standard amplification: x1
- Signal to noise ratio: 98dB
- Harmonic distortion: < 0.005% (@1KHz)
- Maximum output: 5V RMS
- Tone control: ±15dB @ 20Hz - ±15dB @ 15kHz
- Input impedance: 50k ohms
- PCB dimensions: 105 x 70mm
